Honeywell CC-TCF901 51308301-175 | Control Firewall Module Original

Overview

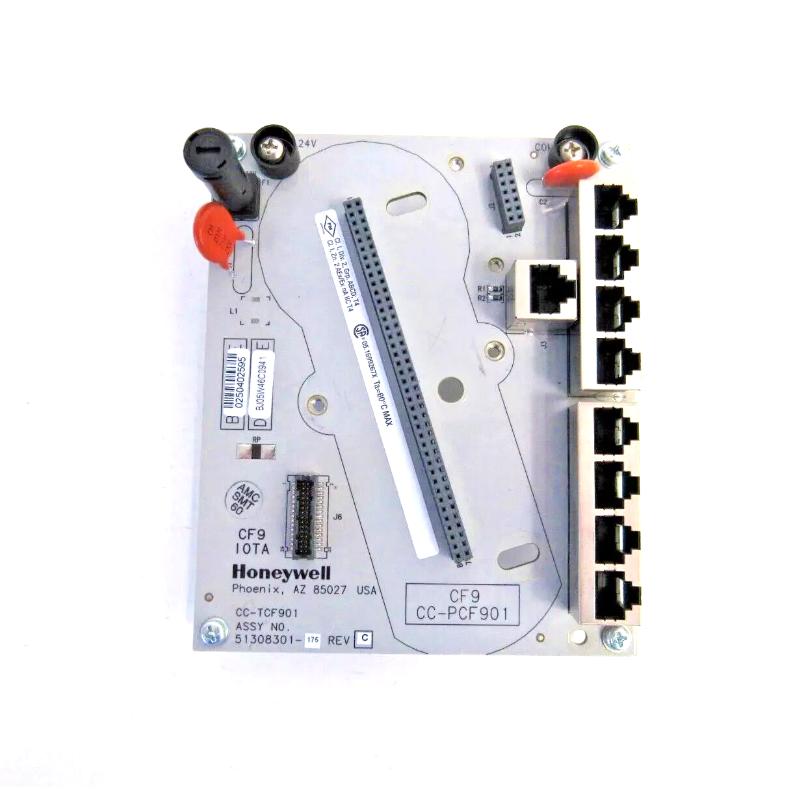

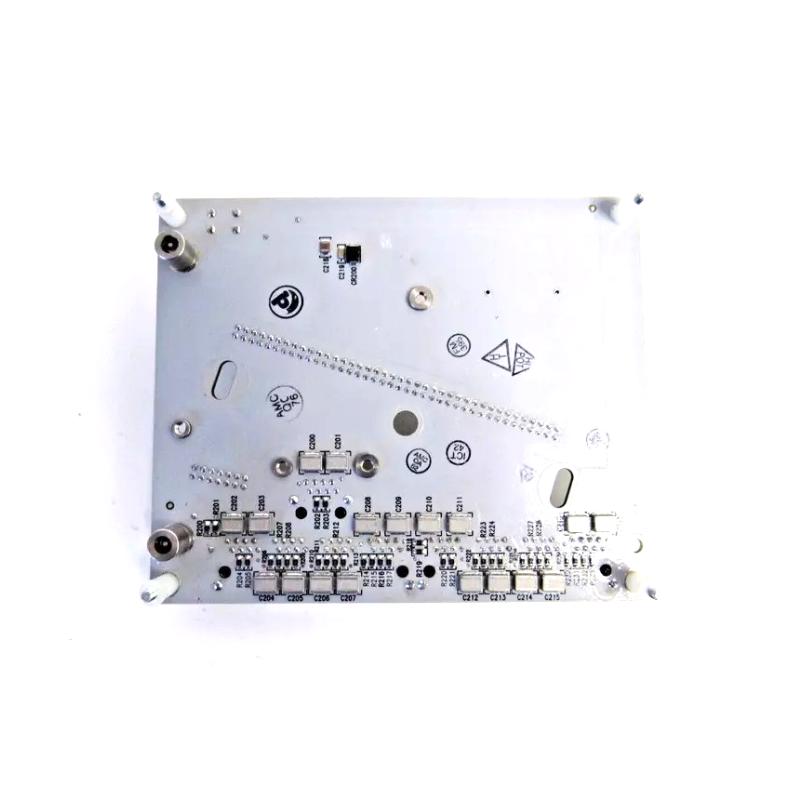

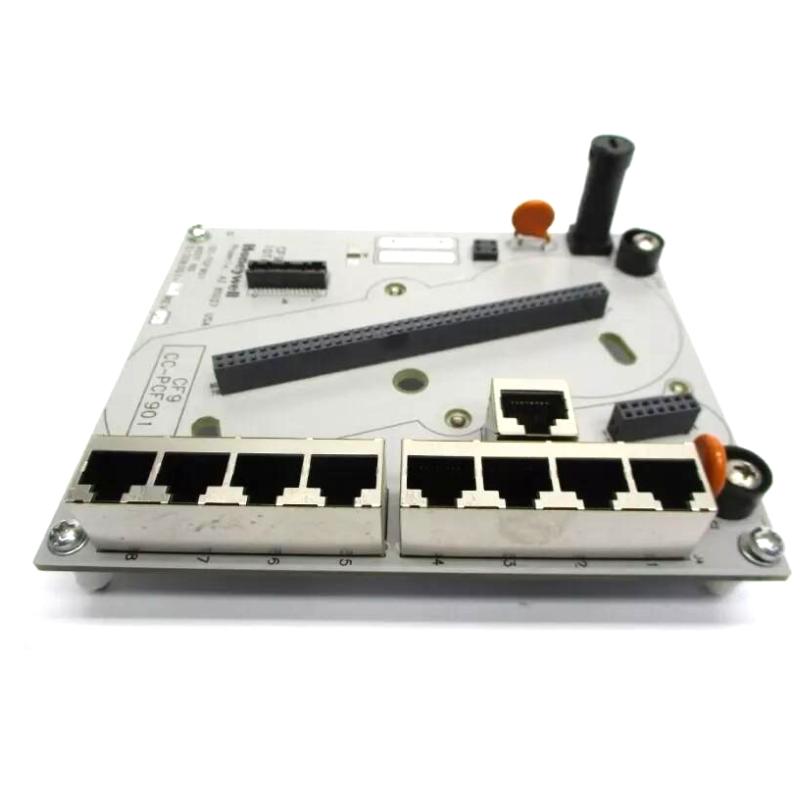

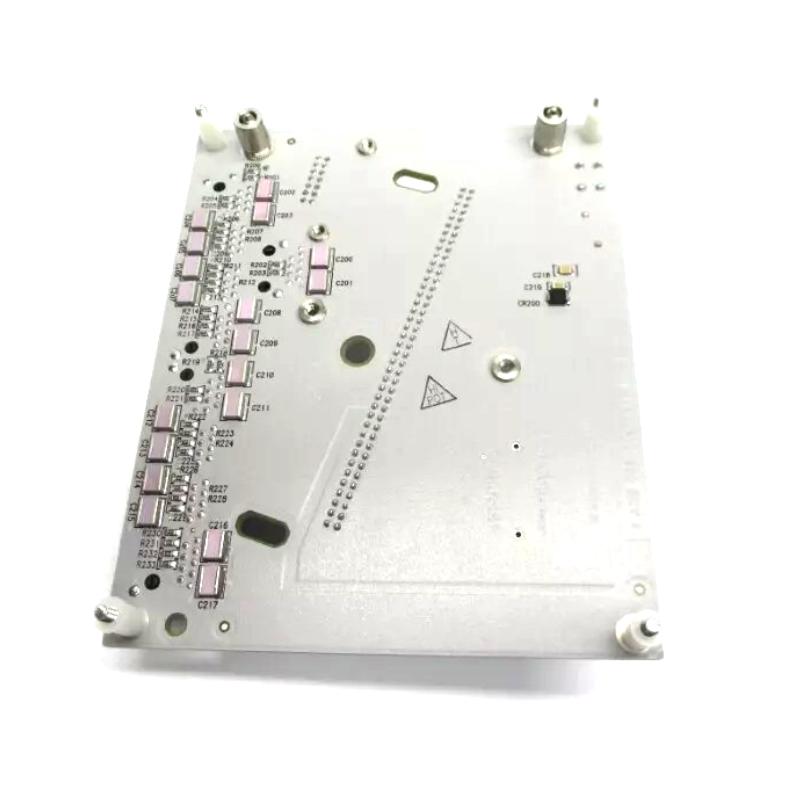

The Honeywell CC-TCF901 51308301-175 is a 9-port Control Firewall Input/Output Termination Assembly (IOTA) designed for the Honeywell Experion C300 system. It provides secure connectivity between the automation system and the process, facilitating communication through Fault Tolerant Ethernet (FTE) cables and offering a firewall to protect against unauthorized access.

General Information

• Part Number: 51308301-175

• Manufacturer: Honeywell

• Country of Origin: USA

• Series: Experion C300

• Type: Control Firewall Module

• Ports: 9 (8 FTE ports + 1 uplink)

• Mounting: Rack-mounted

Power Specifications

• Supply Voltage: 24 V DC

• Power Consumption: Approximately 60 W

• Power Distribution: Provides 24 V DC power to connected devices

Communication & Interface

• Interface: Ethernet (FTE)

• Ports: 8 FTE ports for in-cabinet controllers and Series CFIMs

• Uplink Port: 1 port for connection to the FTE supervisory network

• Data Rate: Supports standard Ethernet data rates

Environmental

• Operating Temperature: 0°C to 60°C

• Storage Temperature: –40°C to 85°C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20

Dimensions & Weight

• Dimensions (L × W × H): 145 × 120 × 53 mm

• Weight: Approximately 0.18 kg

All products are new originals, available anytime with dedicated customer care.
