Overview

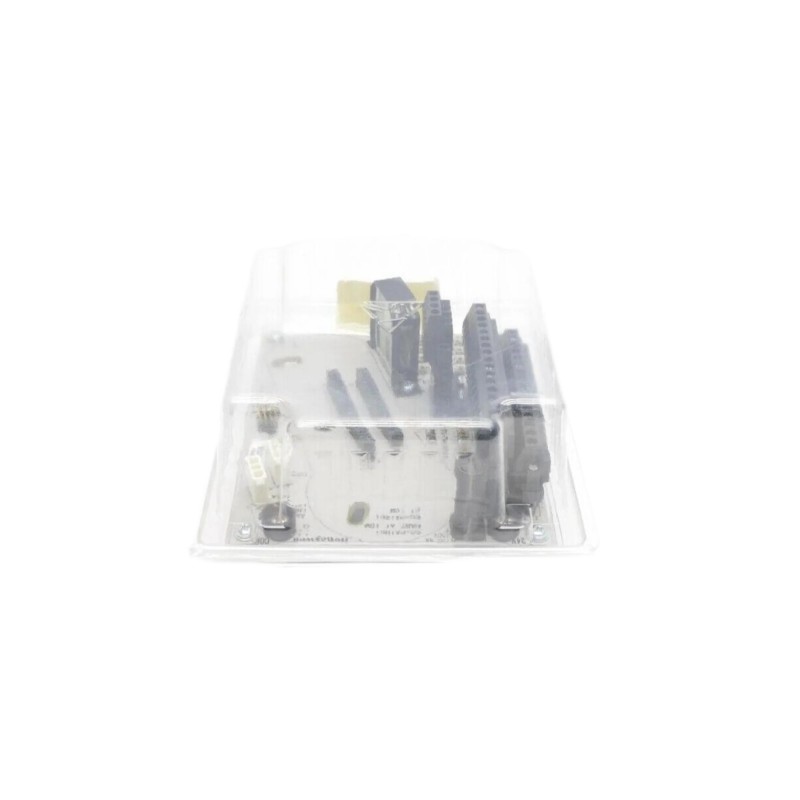

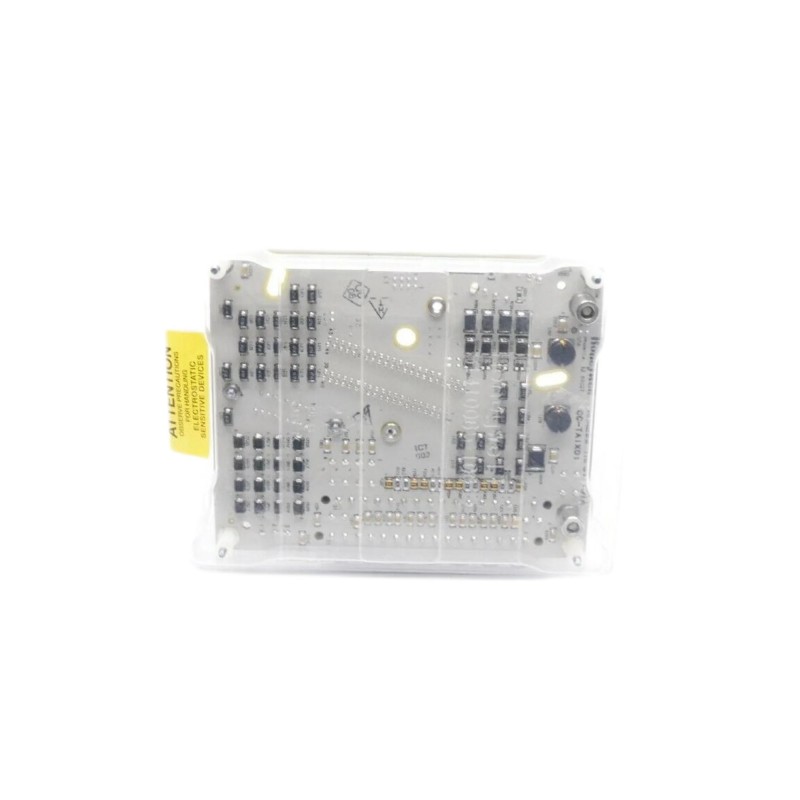

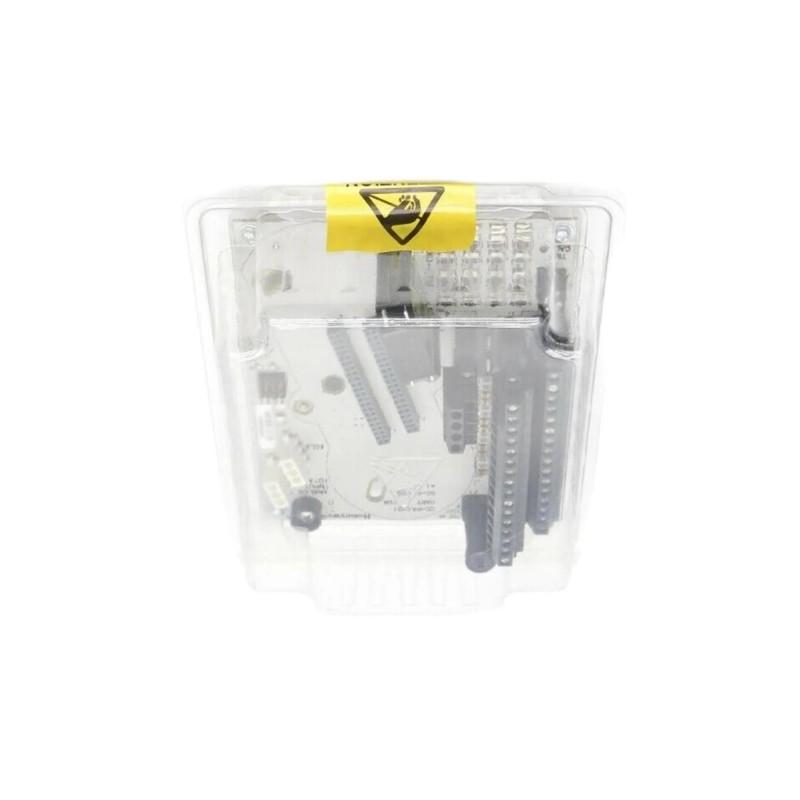

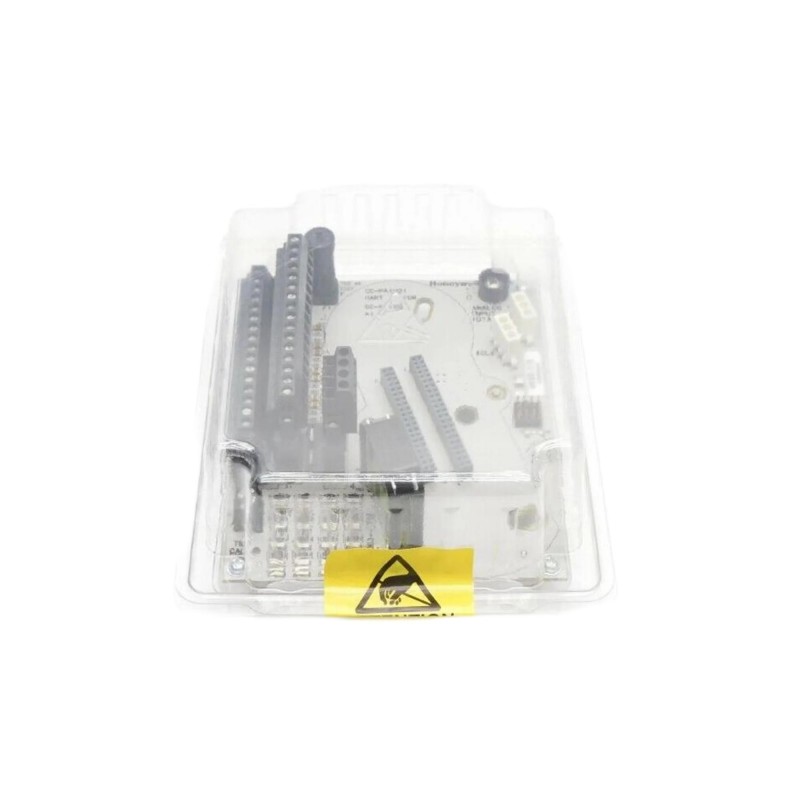

The Honeywell CC-TAIX61 51307077-175 is a 16-channel analog input module designed for industrial automation systems. It converts analog signals from sensors into digital data for processing by control systems.
General Information
Part Number: 51307077-175
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Series: CC-TAI Series
Type: Analog Input Module
Mounting: Rack or DIN rail installation
Technology: 16 input channels, supports 0–10 V DC and 0–20 mA signals, 12-bit resolution
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Typical for module operation
Protection: Standard surge and short-circuit protection
Communication & Interface
Input Signal: 0–10 V DC, 0–20 mA
Number of Channels: 16
Resolution: 12-bit
Sampling Rate: 100 samples per second
Accuracy: ±0.2% of full scale
Communication Protocol: DeviceNet, 500 kbps
Environmental
Operating Temperature: –40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions : 12-inch
Weight: 0.8 kg
