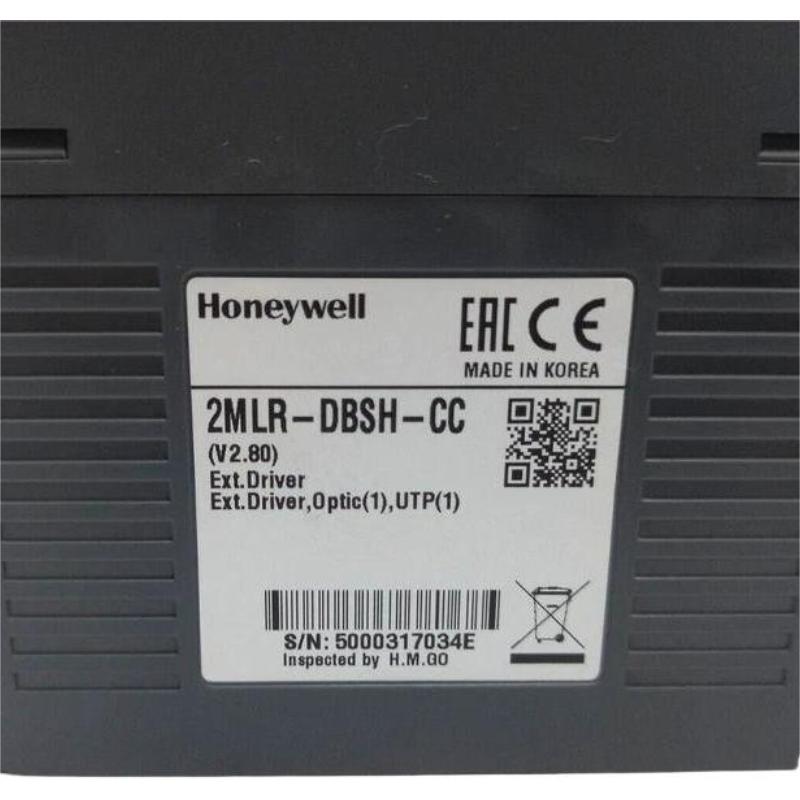

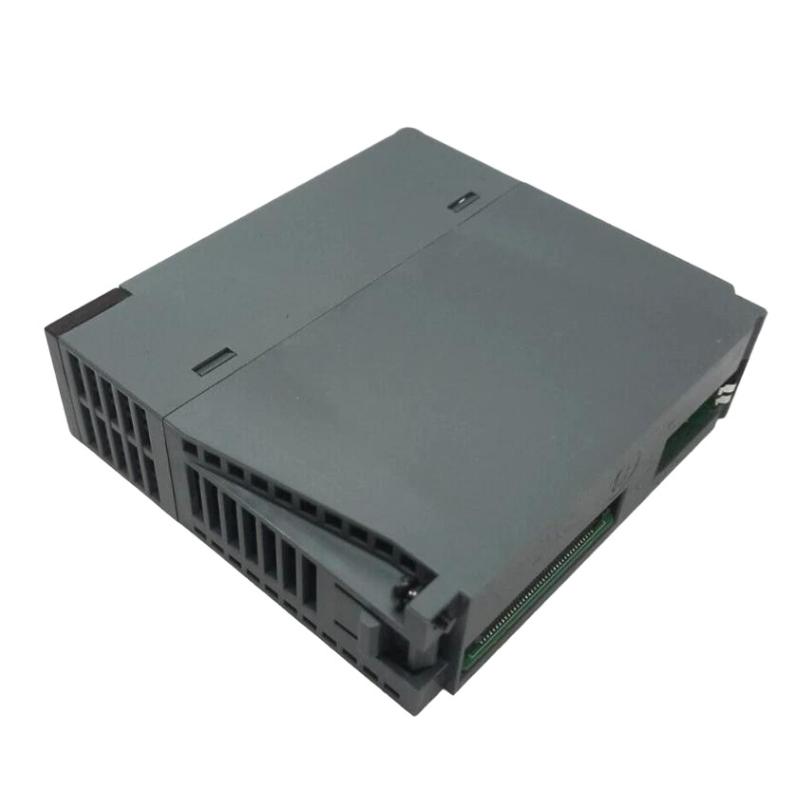

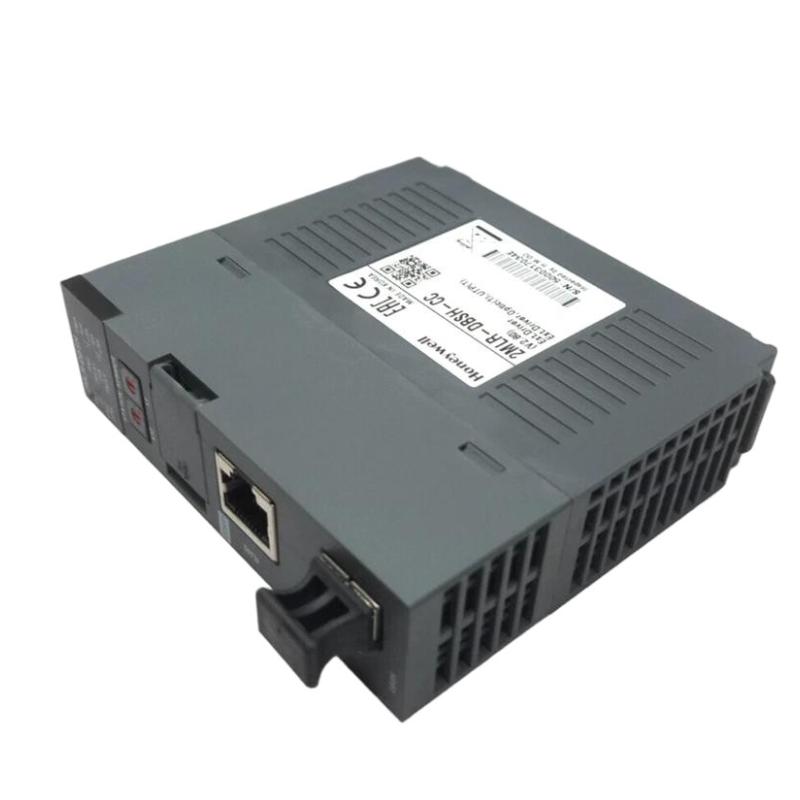

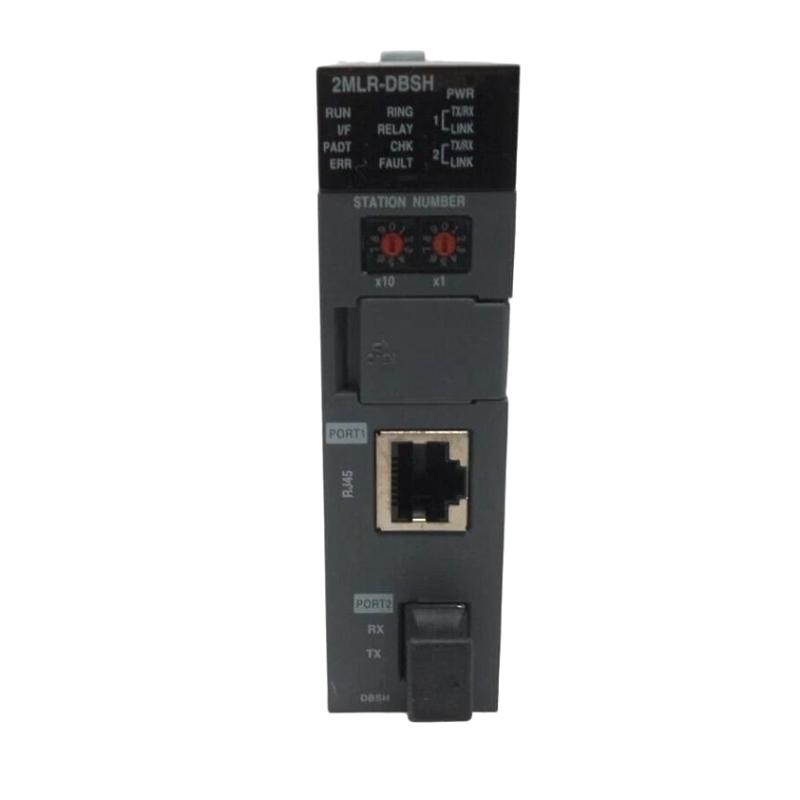

Honeywell 2MLR-DBSH-CC Extended Driver Module

Overview

The Honeywell 2MLR-DBSH-CC is an extended driver module designed to enhance signal transmission and system scalability in industrial automation environments. It provides stable and efficient signal driving, ensuring reliable communication across complex control systems.

General Information

Part Number: 2MLR-DBSH-CC

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: MLR Control Series

Type: Extended Driver Module

Mounting: Rack-mounted within compatible control systems

Function: Extends and stabilizes signal transmission for improved system performance

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power consumption for efficient operation

Signal Capability: Enhanced signal driving for extended communication

Protection: Built-in electrical protection and signal isolation

Indicators: LED indicators for module status and operation

Communication & Interface

System Interface: Backplane connection with controller and expansion modules

Signal Transmission: Supports extended signal routing and amplification

Diagnostics: LED-based status monitoring and system diagnostics

Operator Interface: Visual LED indicators for operational feedback

Compatibility: Designed for seamless integration with PLC and DCS systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial enclosure installation

Vibration Resistance: Meets standard industrial requirements

Dimensions & Weight

Dimensions (L × W × H): 175 × 115 × 35 mm

Weight: 0.102 kg

Reliable Signal Expansion – Engineered for Industrial Stability!
