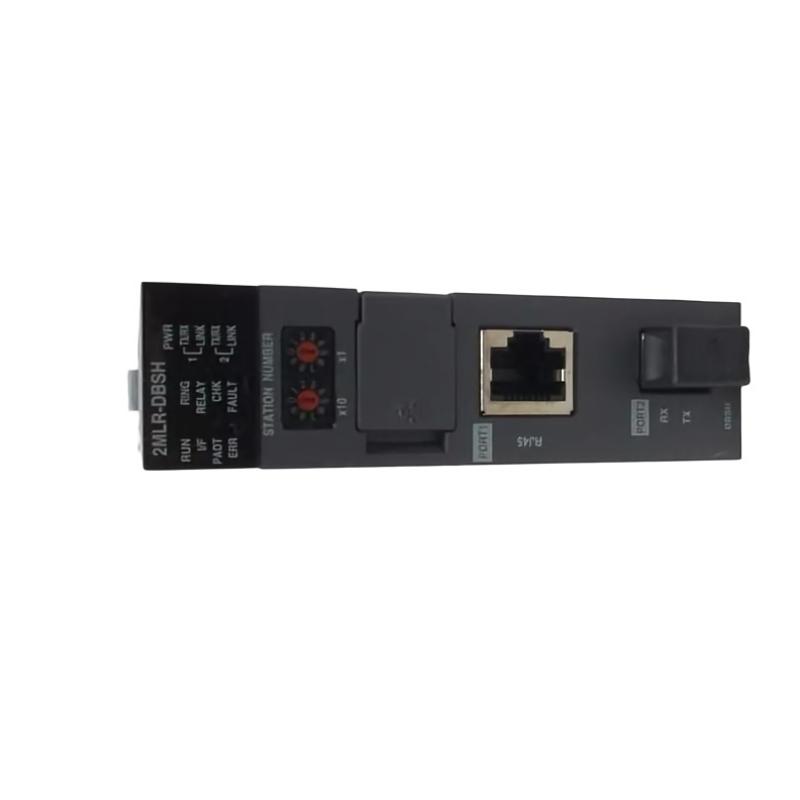

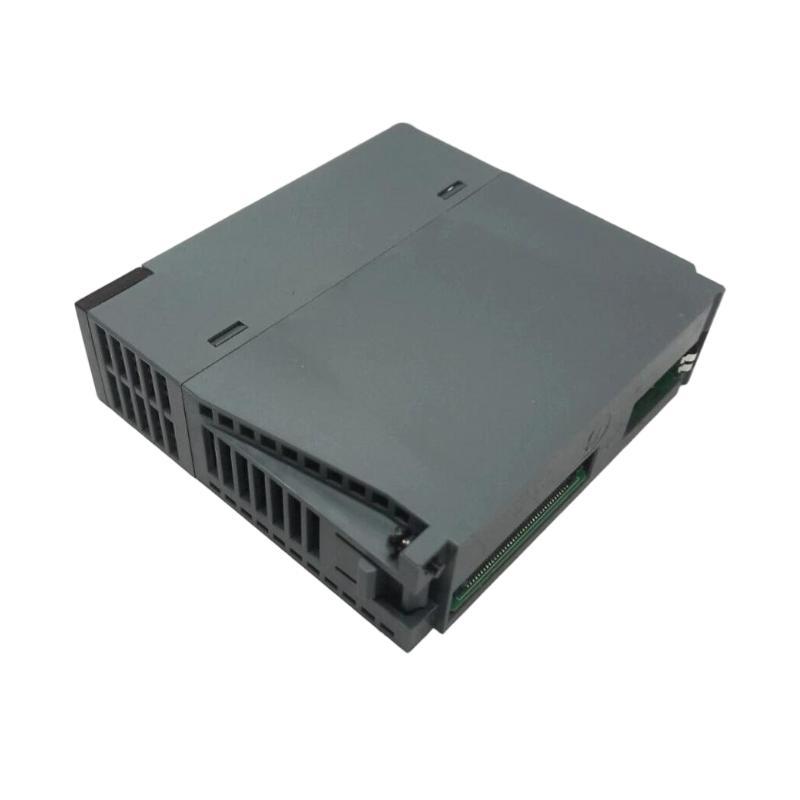

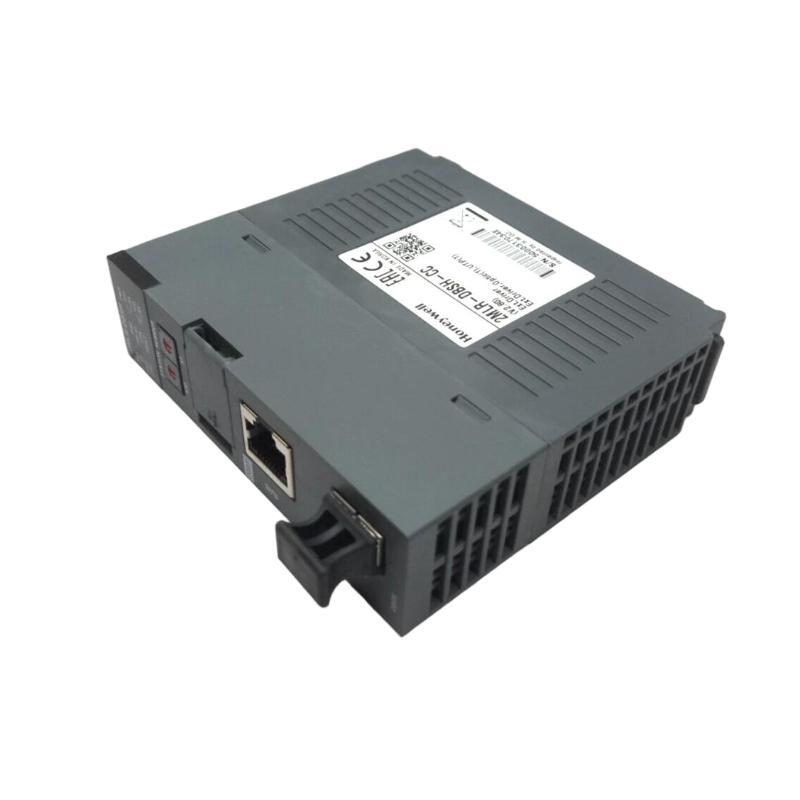

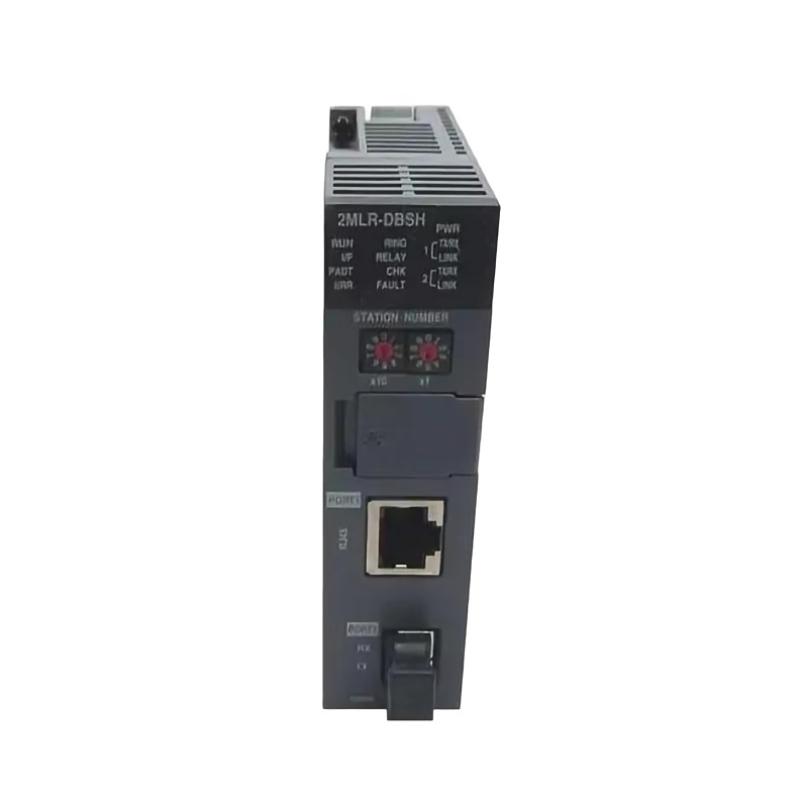

Honeywell 2MLR-DBSH Extended Driver Module

Overview

The Honeywell 2MLR-DBSH is a compact extended driver module designed to enhance signal transmission and system scalability in industrial automation systems. It provides stable signal driving capability, ensuring reliable communication between control units and connected devices.

General Information

Part Number: 2MLR-DBSH

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: MLR Control Series

Type: Extended Driver Module

Mounting: Rack-mounted within compatible control systems

Function: Extends and stabilizes signal transmission for improved system performance

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power consumption design

Signal Capability: Enhanced signal driving for extended communication distance

Protection: Built-in electrical protection and signal isolation

Indicators: LED indicators for module status and operation

Communication & Interface

System Interface: Backplane connection with controller and expansion modules

Signal Transmission: Supports extended signal routing and amplification

Diagnostics: LED-based monitoring and system diagnostics support

Operator Interface: LED indicators for operational status

Compatibility: Designed for integration with PLC and DCS systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial enclosure installation

Vibration Resistance: Meets industrial vibration standards

Dimensions & Weight

Dimensions (L × W × H): 122 × 76 × 38 mm

Weight: 0.102 kg

Compact Expansion Solution – Built for Reliable Performance!
