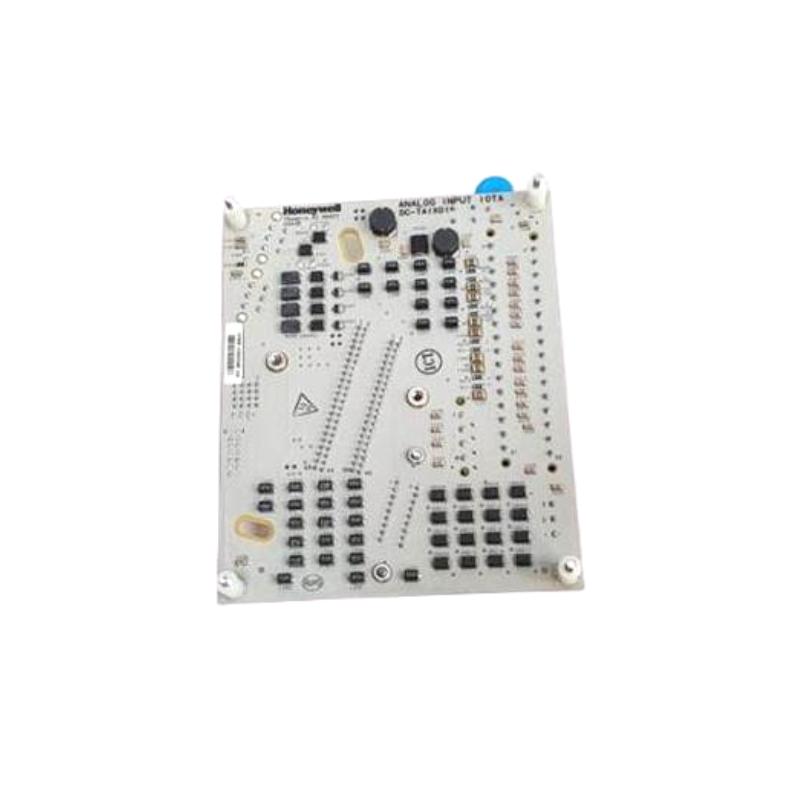

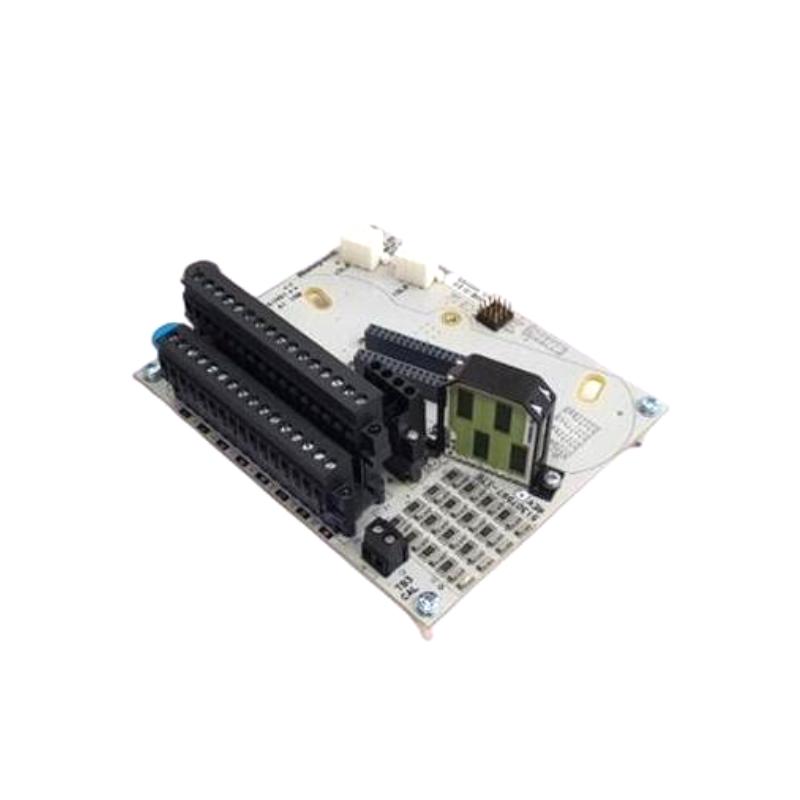

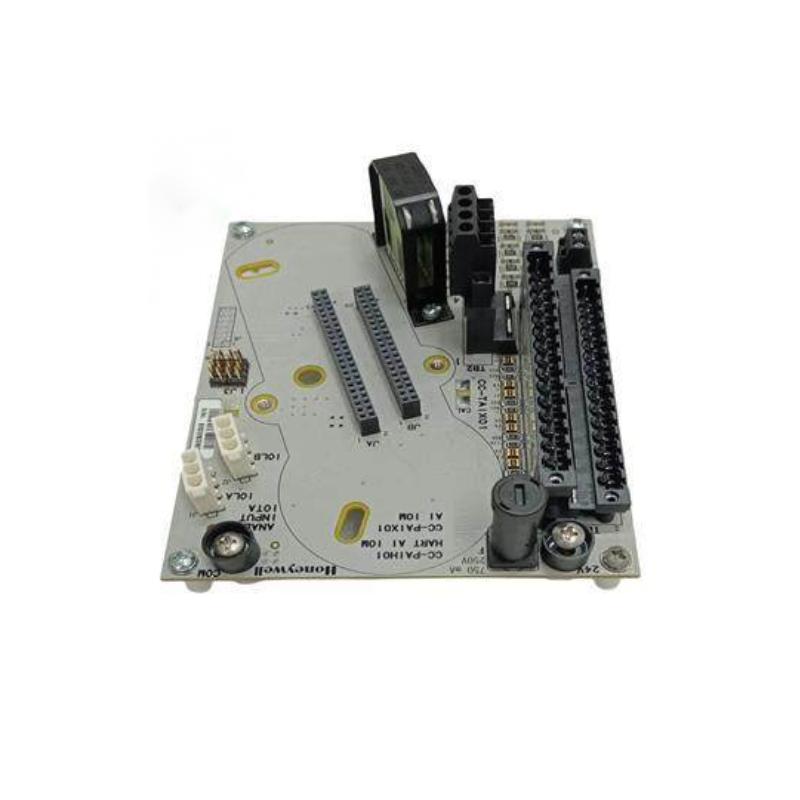

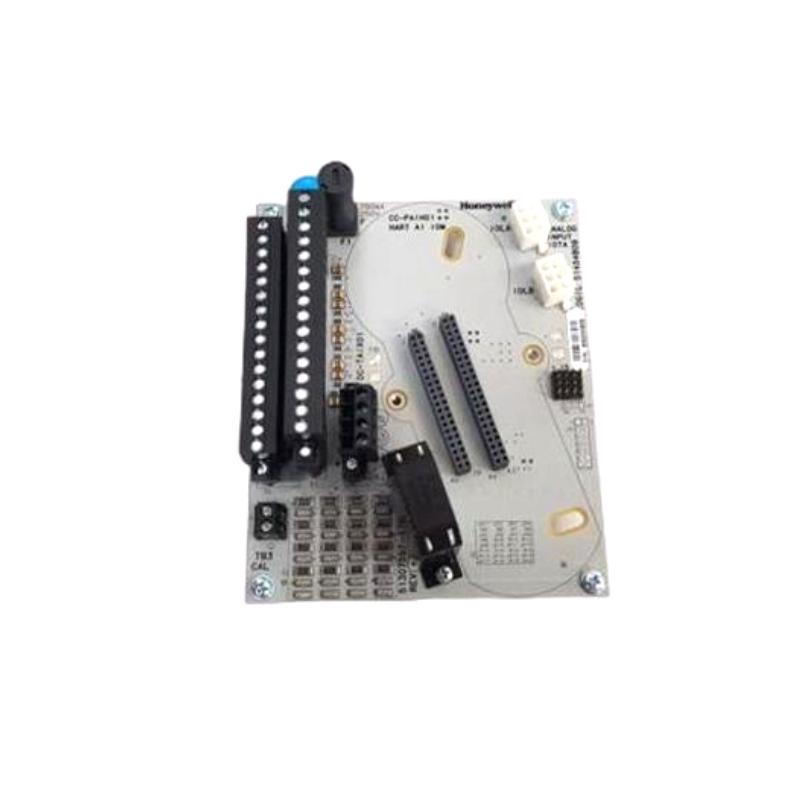

Honeywell DC-TAIX01 51307597-176 | Analog Input Module 30-Day Returns

Overview
The Honeywell DC-TAIX01 is an analog input module designed for precise signal acquisition from field transmitters and sensors. It supports both voltage and current input types and offers high accuracy, stability, and reliability in industrial automation systems. The module is commonly used in Honeywell DCS platforms to process analog signals for monitoring and control functions.

General Information

• Model Number: DC-TAIX01

• Part Number: 51307597-176

• Manufacturer: Honeywell

• Type: Analog Input Module

• Channels: 8 analog input channels

• Signal Type: Voltage or current input

• Application: Used in process control and monitoring systems

• Country of Origin: USA

Power Specifications

• Supply Voltage: 24 V DC

• Power Source: Supplied via system backplane

• Protection: Overvoltage and reverse-polarity protection

• Power Consumption: Approximately 6 W

Communication & Interface

• Input Range: 0–10 V or 4–20 mA

• Resolution: 12-bit or higher (depending on system configuration)

• Accuracy: ±0.1% of full scale

• Interface: Connects through system I/O bus

• Diagnostics: Built-in open-wire detection and fault reporting

• Compatibility: Supports HART communication with compatible transmitters

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −20 °C to +70 °C

• Humidity: 5% to 95% RH (non-condensing)

• Protection Rating: IP20 (for use in control cabinets)

Dimensions & Weight
Dimensions: Approximately 127  × 127  × 127 mm
Weight: About 0.8 kg

Brand-new original units in stock, supported by our online service team 24/7.
