Honeywell CC‑TDOD51 51307087‑175 | 24V Digital Output Module Hot Items

Overview

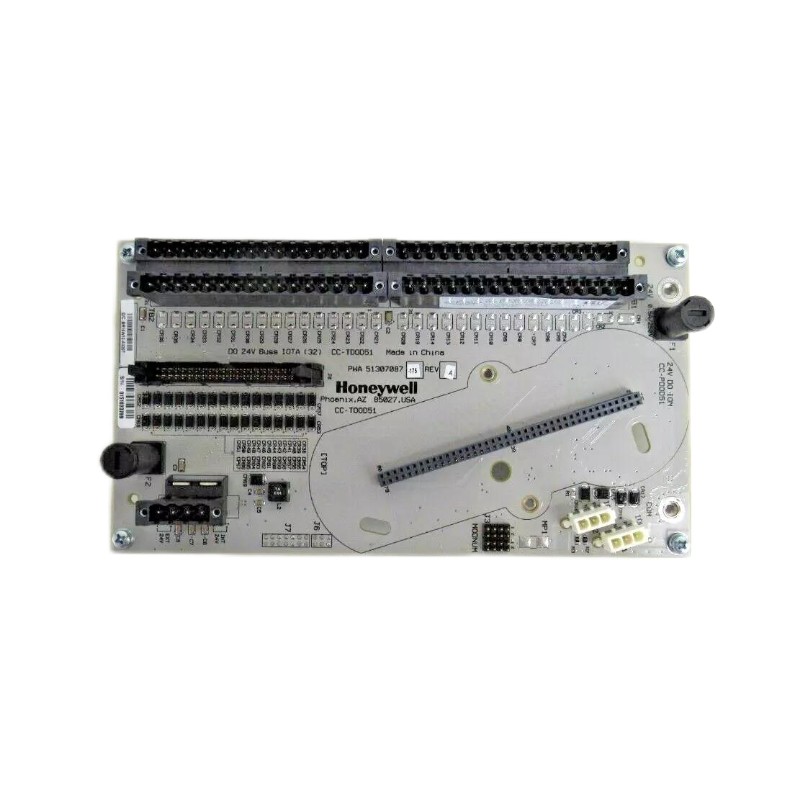

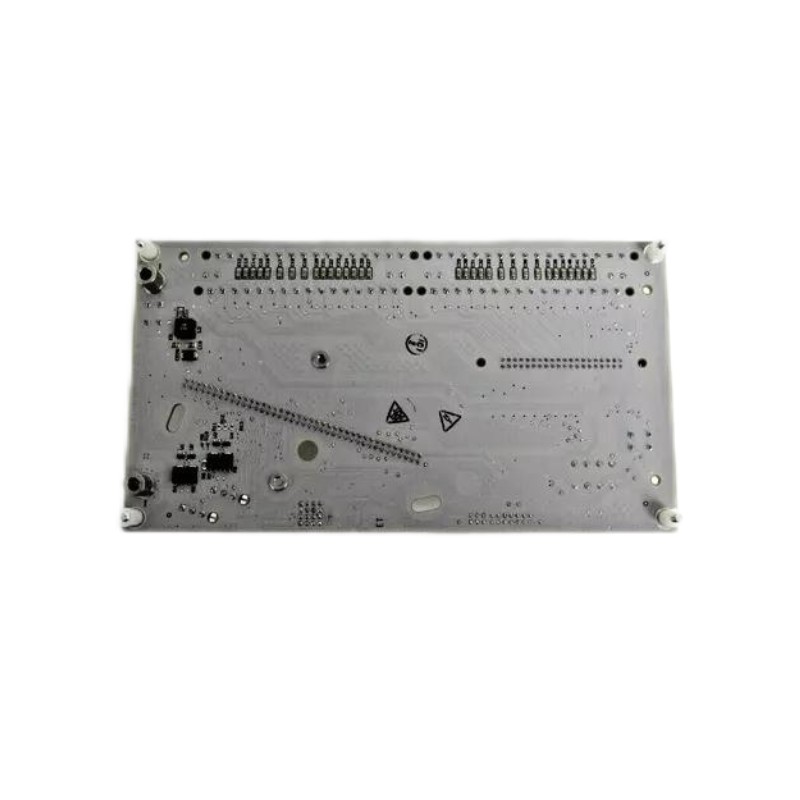

The Honeywell CC‑TDOD51 51307087‑175 is a high‑density digital output module designed for the Experion® Process Knowledge System (PKS) Series C I/O platform. It provides 32 channels of 24V DC digital outputs, suitable for controlling field devices such as solenoid valves, relays, and actuators in industrial automation applications.

General Information

• Brand: Honeywell

• Model: CC‑TDOD51

• Part Number: 51307087‑175

• Product Type: Digital Output Module

• System Compatibility: Experion® PKS Series C I/O

• Application: Industrial automation, process control, actuator control

Power Specifications

• Supply Voltage: 24V DC

• Output Voltage Range: 15–30V DC

• Output Current:

• Per Channel: 0.1A (maximum)

• Per 8 Channels: 0.8A (maximum)

• Per Module: 3.2A (maximum)

• Off-State Voltage: 24V (typical)

• Off-State Leakage Current: 100µA (maximum)

Communication & Interface

• Output Type: SINK (Open Drain)

• Load Voltage: 15–30V DC

• Load Current: 0.1A per channel (maximum)

• On-State Voltage: 0V (at 0.1A load current)

• Off-State Voltage: 24V (typical)

• Off-State Leakage Current: 100µA (maximum)

Environmental

• Operating Temperature: 0°C to +60°C

• Storage Temperature: –40°C to +70°C

• Humidity: 5% to 95% non-condensing

• Protection Rating: IP20 (when installed inside an enclosure)

Dimensions & Weight

• Dimensions: 12.7 cm × 5.1 cm × 12.7 cm

• Weight: 0.1 kg
