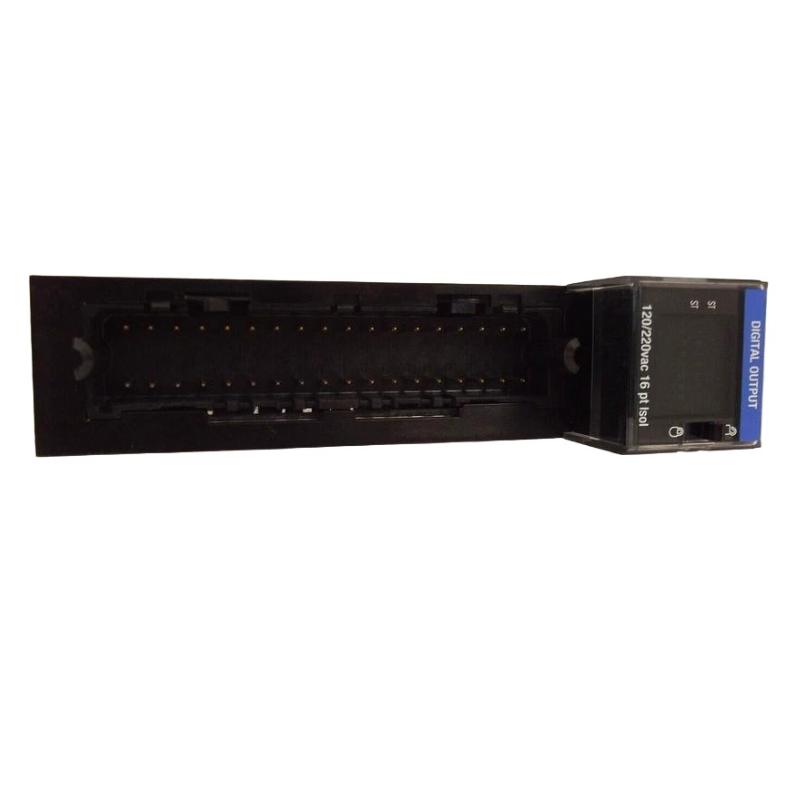

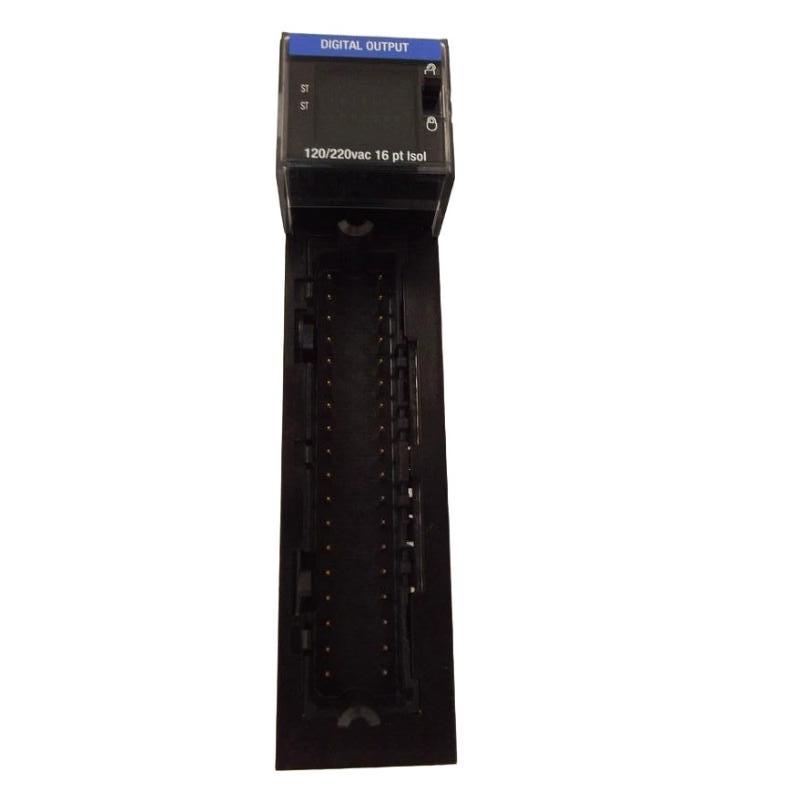

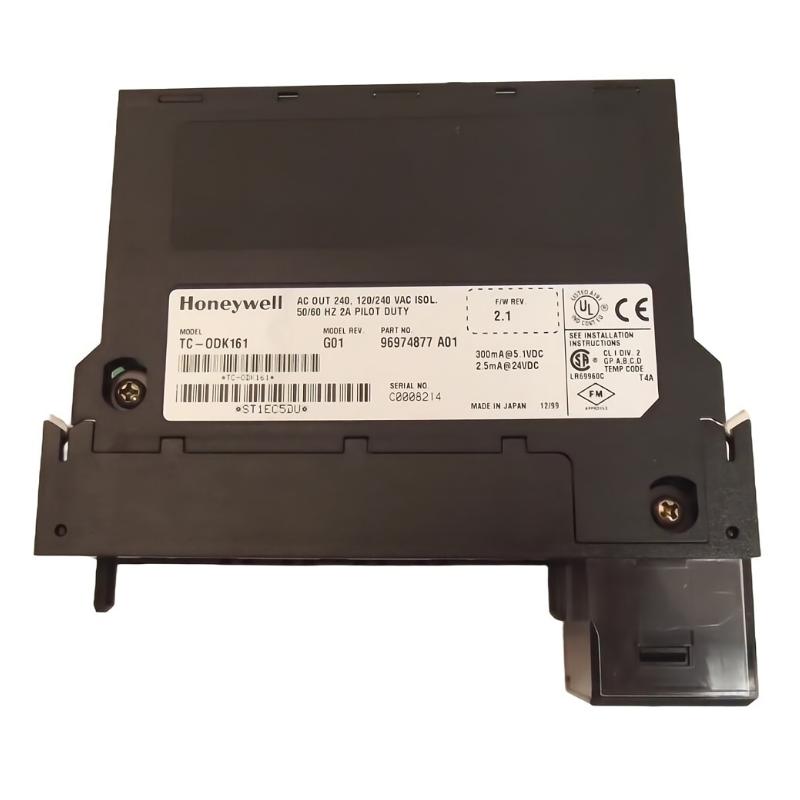

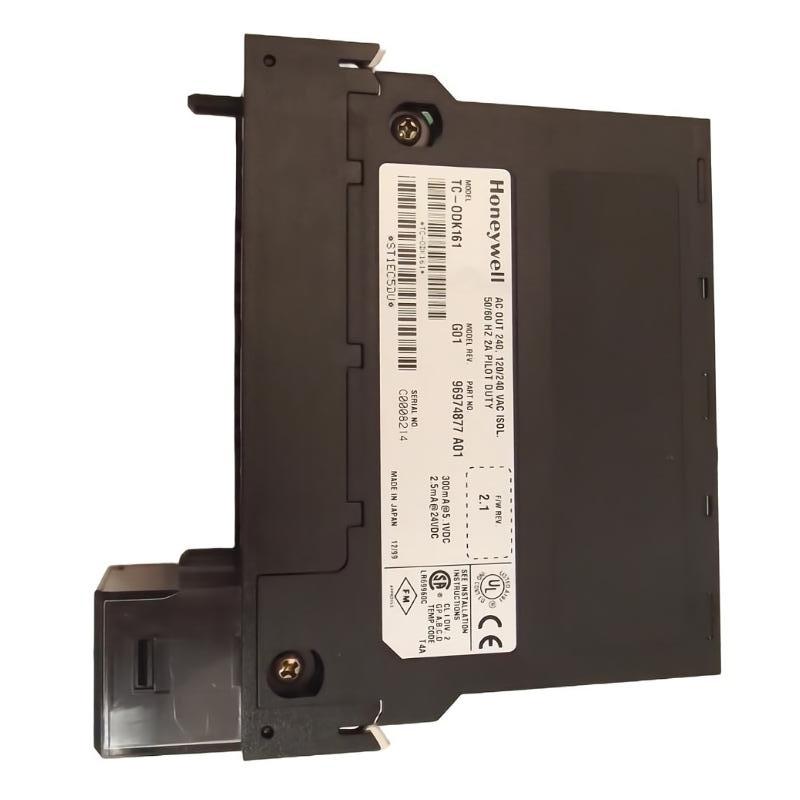

Honeywell TC-ODK161 Experion LS Isolated Discrete Output Module

Overview

The Honeywell TC-ODK161 is an isolated discrete output module designed for Experion LS process automation systems. It provides reliable, electrically isolated control of actuators, relays, and field devices, ensuring safe and fail-proof operation in industrial applications.

General Information

Part Number: TC-ODK161

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: Experion LS

Type: Isolated Discrete Output Module / Digital Output

Mounting: Rack or cabinet installation within Experion LS system

Technology: Safety-rated discrete output, isolated channel protection, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered via Experion LS backplane

Protection: Overvoltage, short-circuit, and isolation protection

Indicators: LEDs for power, output status, and fault detection

Communication & Interface

Interface Ports: Backplane connection to Experion LS system

Module Role: Provides isolated digital output control for actuators, relays, and other field devices

Diagnostics: Channel supervision, fault detection, and operational status reporting

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports soft and hardware reset

I/O & Channels: Electrically isolated discrete outputs for reliable industrial control

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 100 × 120 × 30 mm

Weight: 0.25 kg
