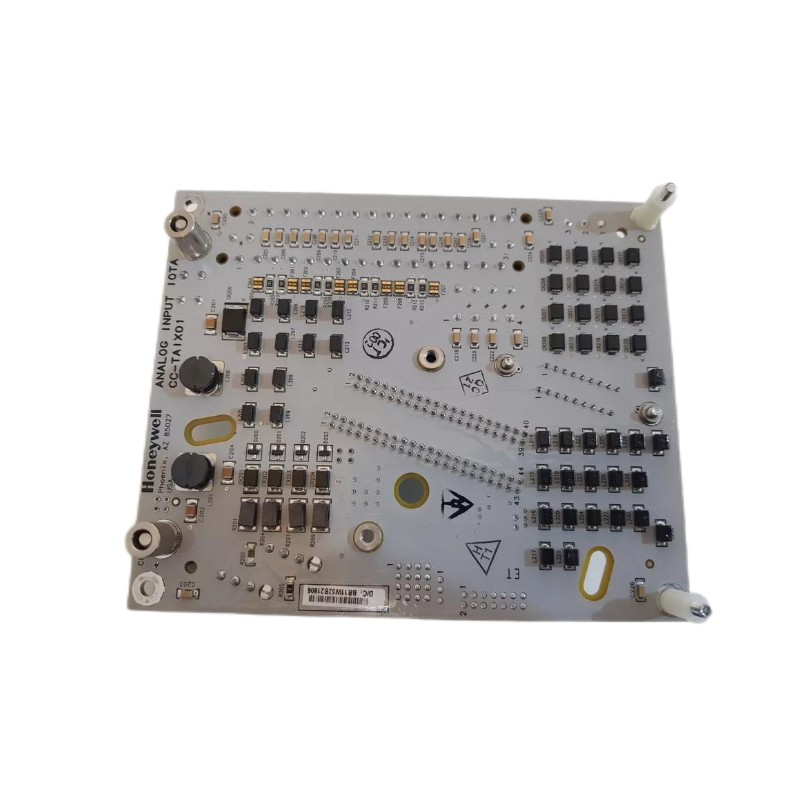

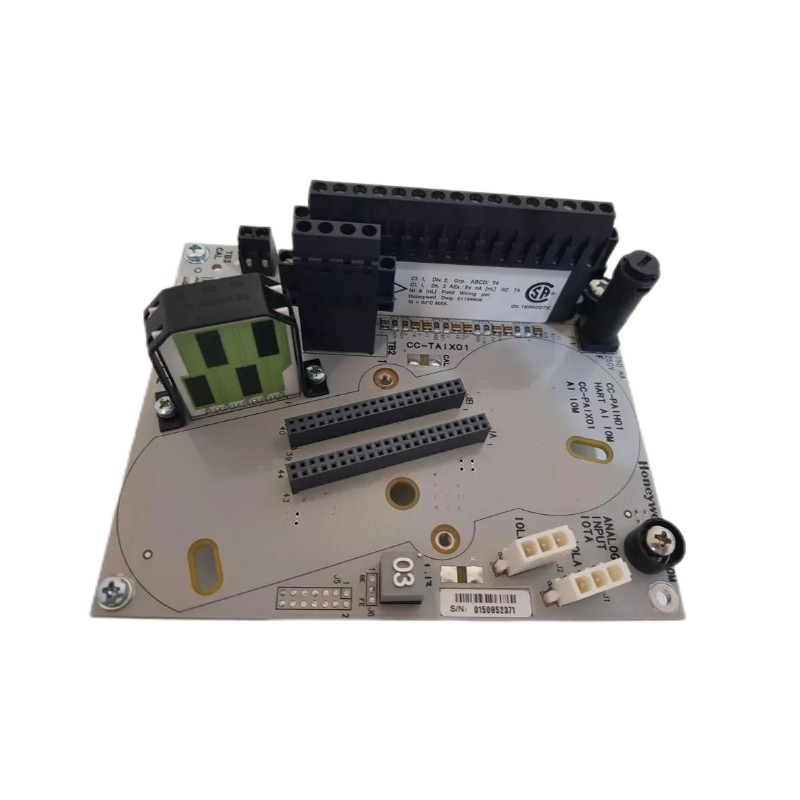

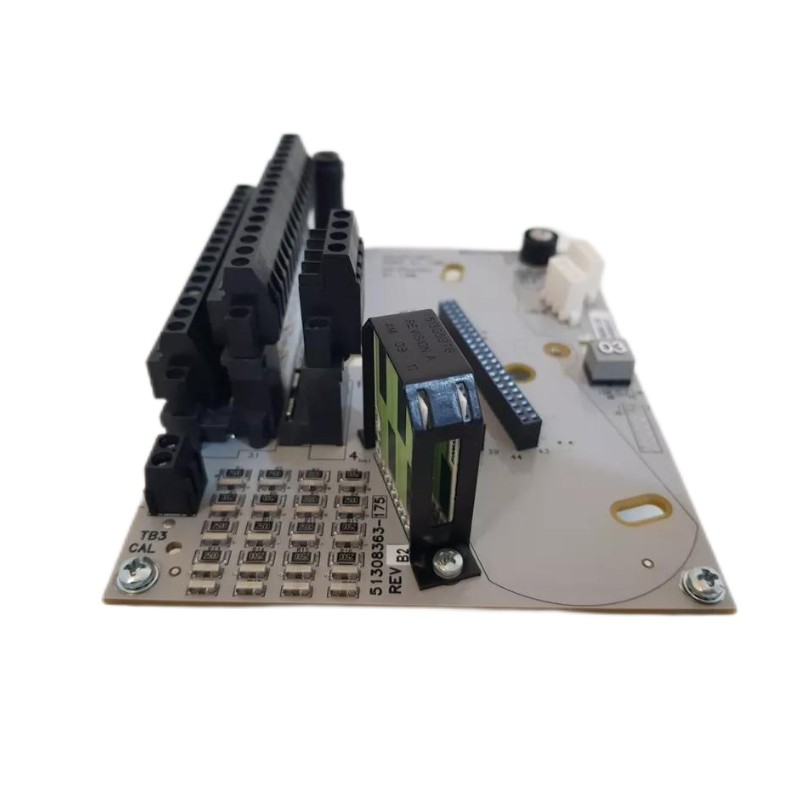

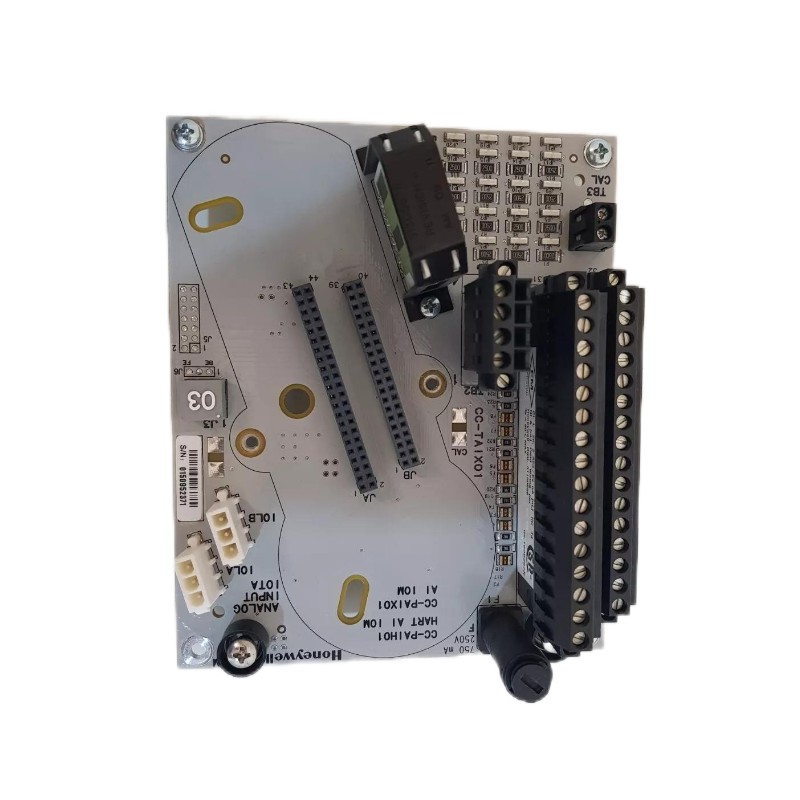

Honeywell CC-TAIX01 51308363-175 | 16-Channel Analog Input Module Rave reviews

Overview

The Honeywell CC-TAIX01 51308363-175 is an advanced analog input module designed for integration with Honeywell's Experion® Process Knowledge System (PKS) and C300 controllers. This module offers high-precision measurement capabilities for a wide range of analog signals, including thermocouples (TC), resistance temperature detectors (RTD), voltage, and current inputs. It is engineered to deliver reliable performance in industrial automation and process control applications.

General Information

• Part Number: 51308363-175

• Manufacturer: Honeywell

• Series: CC-TAIX01

• Type: Analog Input Module

• Channels: 16 input channels (12 single-ended, 4 differential)

• Signal Types Supported:

• Thermocouple (TC): -200°C to 1800°C

• Resistance Temperature Detector (RTD): -200°C to 600°C

• Voltage: 0 to 10 V

• Current: 0 to 20 mA

• Mounting: Installed on Series C I/O baseplate or C300 system chassis

• Application: Industrial process monitoring and control

Power Specifications

• Supply Voltage: 24 V DC

• Current Consumption: Approximately 0.195 A at 24 V DC

• Power Dissipation: Approximately 2.464 W

• Input Impedance:

• 250 Ω for current inputs

• 10 MΩ for voltage inputs

• Accuracy: ±0.25% of full scale

• Resolution: 16-bit A/D conversion

• Common Mode Rejection Ratio: 70 dB

Communication & Interface

• Interface Type: Redundant I/O communication link for C300 controller

• Supported Protocols: FTE / ControlNet

• Sampling Rate: 50 ms per channel

• Diagnostics: Channel fault detection, line break detection, module self-test

• Isolation: 2500 V isolation between channels and system

Environmental Specifications

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +105°C

• Humidity: 5% to 95% RH, non-condensing

• Vibration: 5 g peak-to-peak, 10 to 2000 Hz

• Shock: 50 g, 11 ms

Dimensions & Weight

• Dimensions: Approximately 145 × 130 × 40 mm

• Weight: Approximately 0.35 kg
