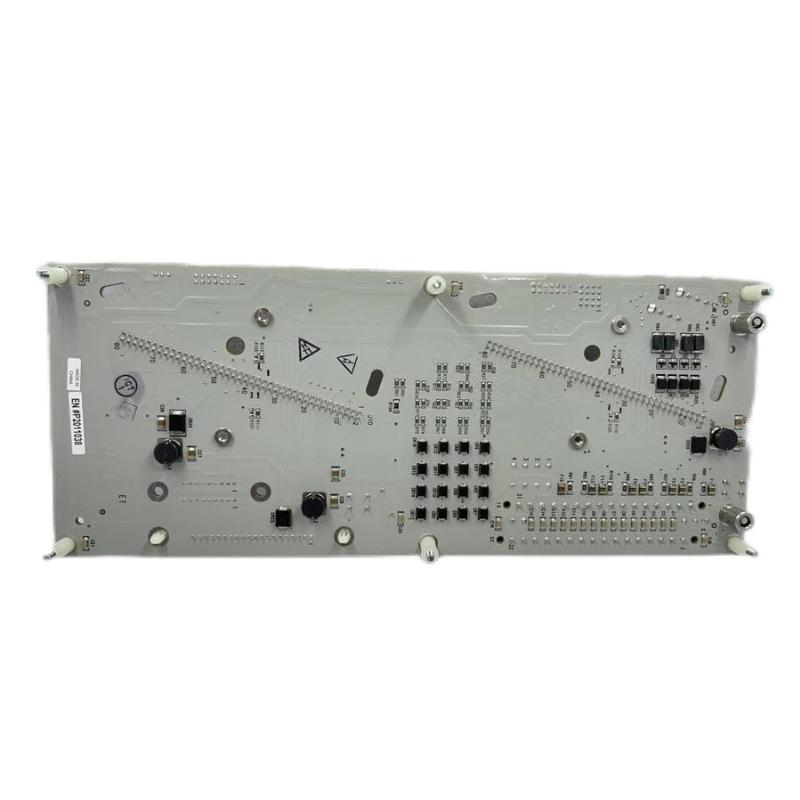

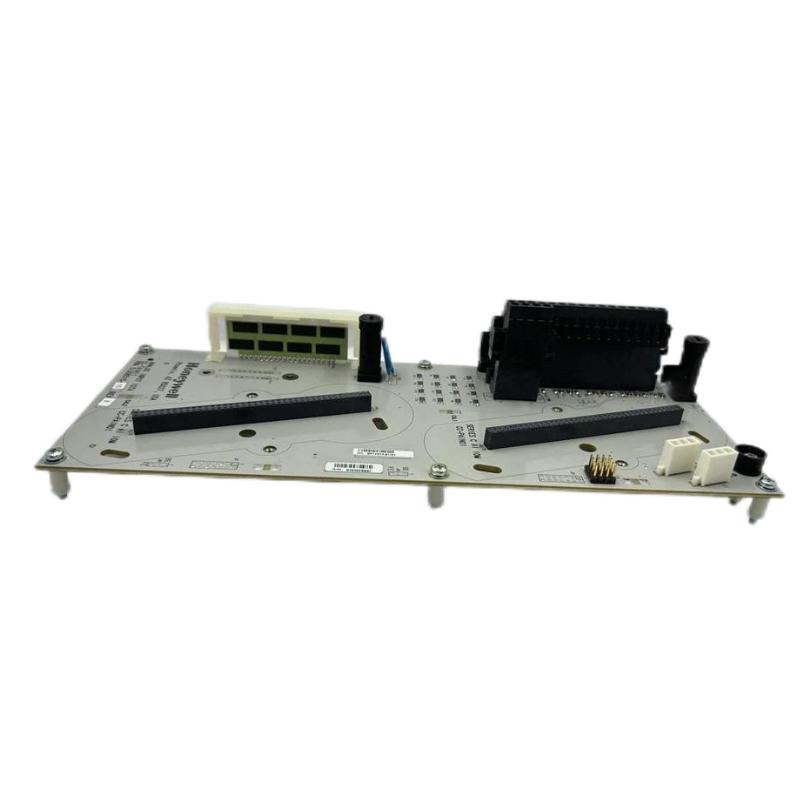

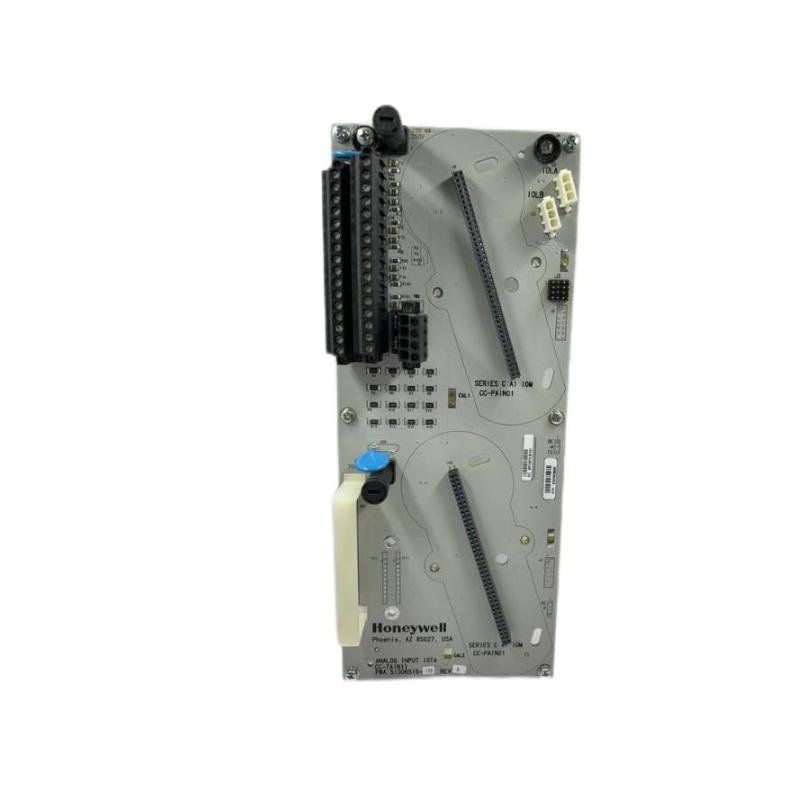

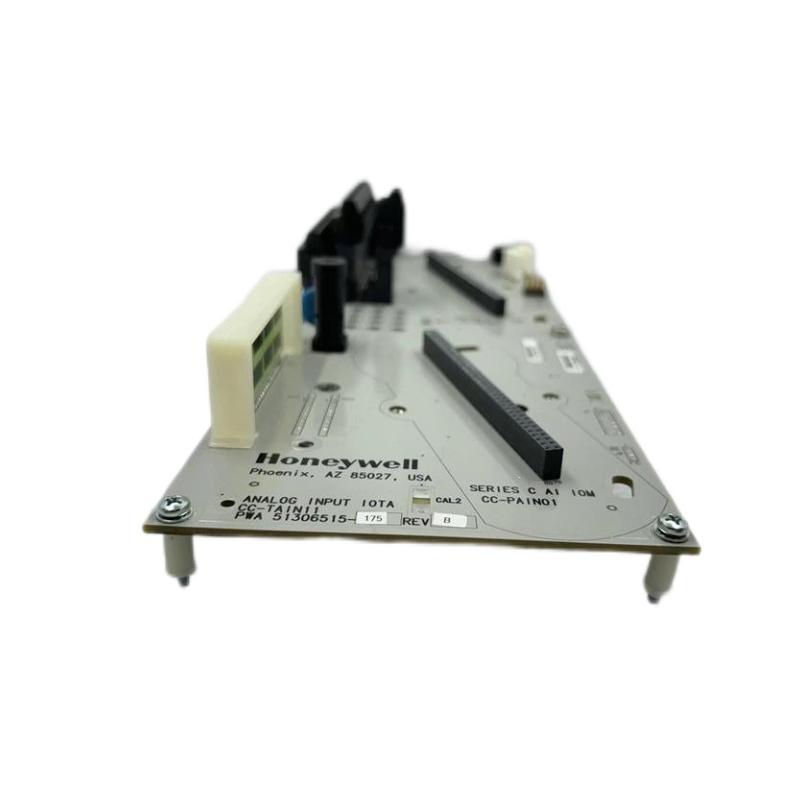

Honeywell CC-TAIN11 51306515-175 | 16-Channel Redundant Analog Input Module

Overview

The Honeywell CC-TAIN11 51306515-175 is a redundant high-level analog input module designed for the Experion® PKS and C300 control systems. It ensures accurate acquisition of analog signals with enhanced reliability for critical automation applications.

General Information

• Part Number: 51306515-175

• Manufacturer: Honeywell

• Brand Origin: United States

• Series: CC-TAIN11 (Series C I/O)

• Type: Redundant Analog Input Module

• Channels: 16 input channels (redundant configuration)

• Signal Type: ±10 V DC or 4–20 mA, selectable input ranges

• Mounting Options: Rack- or chassis-mounted on IOTA baseplate

• Application: Industrial process monitoring and control with high availability

Power Specifications

• Supply Voltage: 24 V DC nominal

• Power Consumption: Approx. 5 W (typical)

• Protection: Input surge and reverse polarity protection

• Indicators: LEDs for module health, fault status, and redundancy status

Communication & Interface

• Interface Type: Redundant I/O communication link for C300 controller

• Supported Protocols: FTE / ControlNet (with Series C I/O)

• Diagnostics: Channel fault detection, line-break detection, module self-test

• Update Time: Typical 10 ms per channel

• Isolation: Channel-to-channel and channel-to-system galvanic isolation

Environmental

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: −40 °C to +70 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Class: IP20

Dimensions & Weight

• Dimensions: Approx. 145 × 130 × 40 mm

• Weight: Approx. 0.35 kg

Genuine new inventory, always available for quotation.
