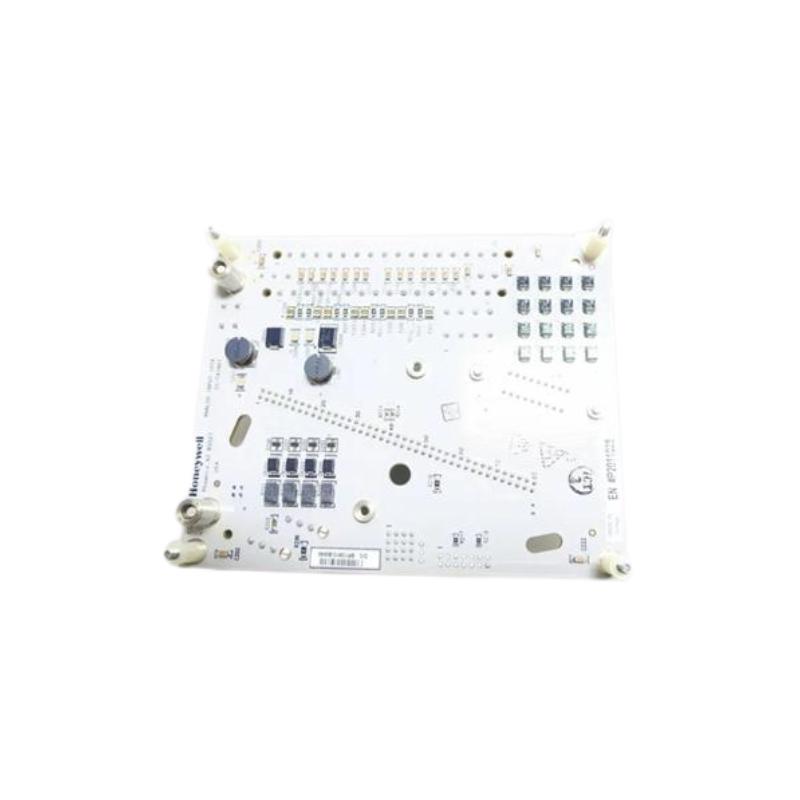

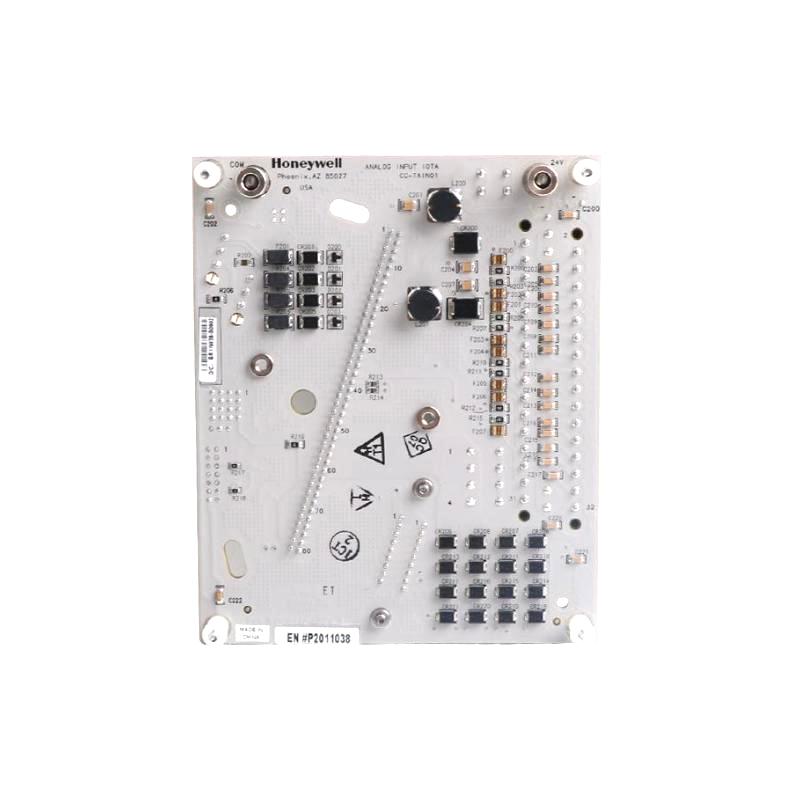

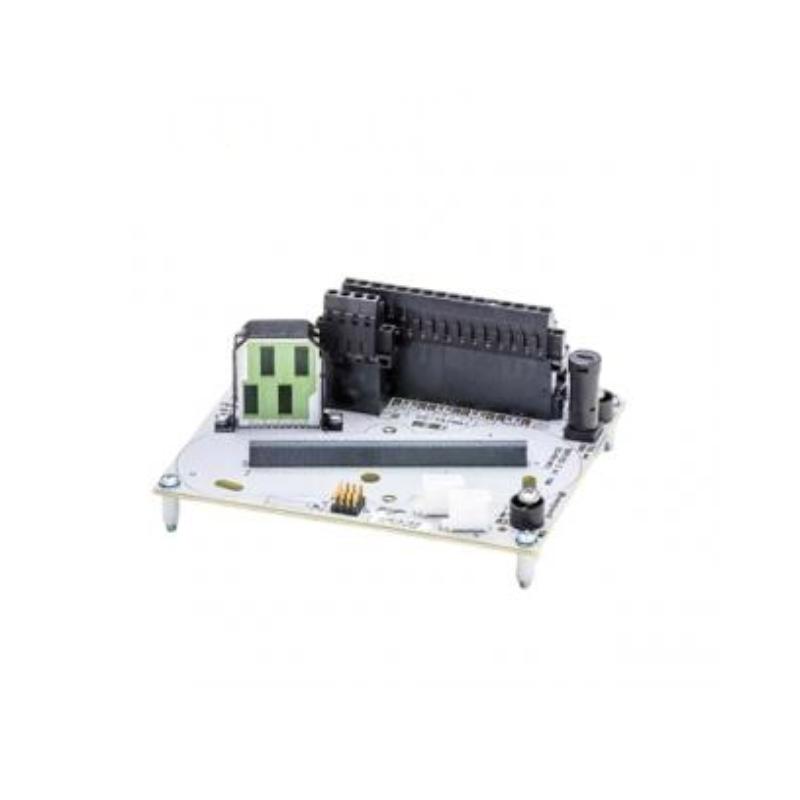

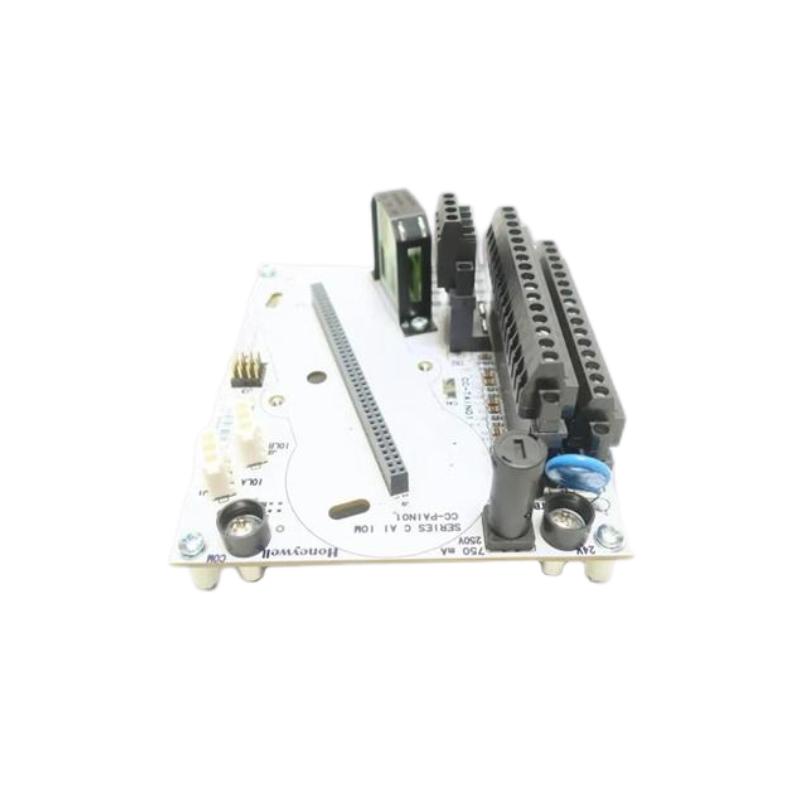

Honeywell CC-TAIN01 51306513-175 | 16-Channel Analog Input Module Original

Overview

The Honeywell CC-TAIN01 51306513-175 is a high-performance analog input module engineered for Experion PKS and C300 distributed control systems. It provides precise measurement and signal conditioning for various process variables, including temperature, flow, and pressure. With advanced diagnostics, reliable isolation, and stable operation, the CC-TAIN01 ensures accurate and secure data acquisition for industrial automation applications.

General Information

• Part Number: 51306513-175

• Manufacturer: Honeywell

• Brand Origin: United States

• Series: CC-TAIN01

• Type: Analog Input Module

• Channels: 16 isolated analog input channels

• Signal Range: 4–20 mA, 0–10 V DC

• Mounting Type: Installed on Series 8 I/O baseplate or C300 system chassis

• Application: Process control, monitoring, and signal acquisition

Power Specifications

• Supply Voltage: 24 V DC nominal

• Power Consumption: 6.5 W typical

• Input Impedance: 250 Ω for current input

• Accuracy: ±0.1% of full scale

• Protection: Surge, overvoltage, and reverse polarity protection

Communication & Interface

• Interface Type: Redundant I/O communication link

• Protocol: FTE / ControlNet

• Sampling Rate: 10 ms typical

• Diagnostics: Line break detection, out-of-range indication, module self-test

• Isolation: Channel-to-channel and channel-to-system isolation

Environmental

• Operating Temperature: 0°C to +55°C

• Storage Temperature: −40°C to +70°C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20

Dimensions & Weight

• Dimensions: 145 × 130 × 40 mm

• Weight: Approx. 0.35 kg

All goods are brand new originals, with stable stock and instant support.
