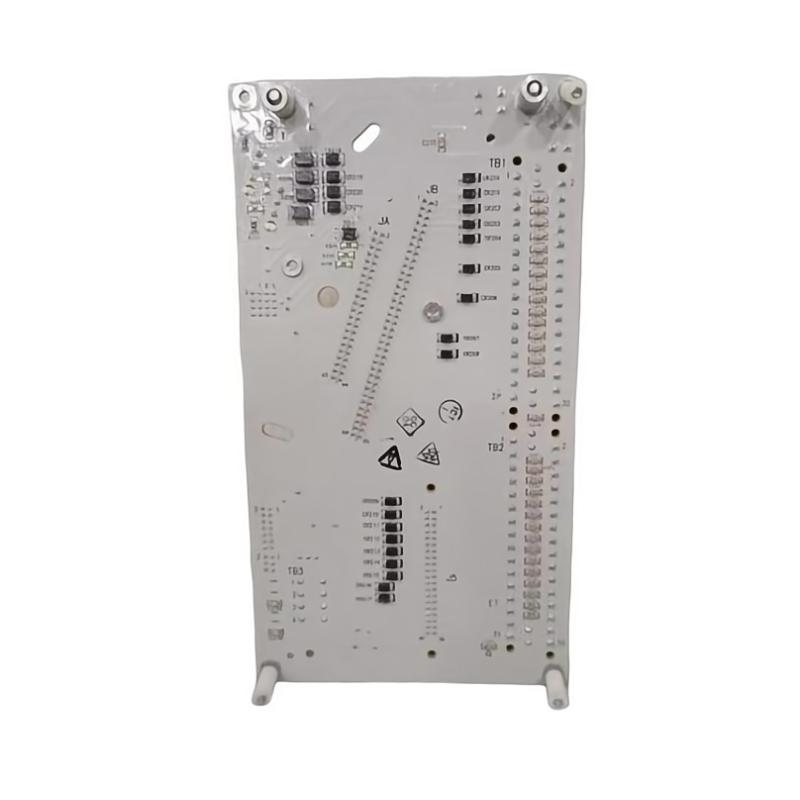

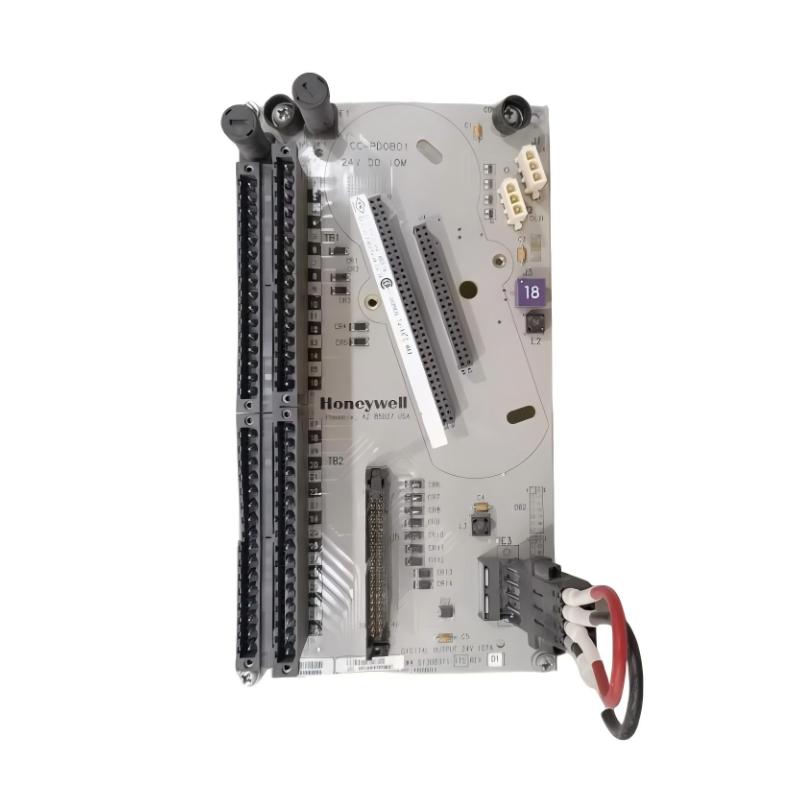

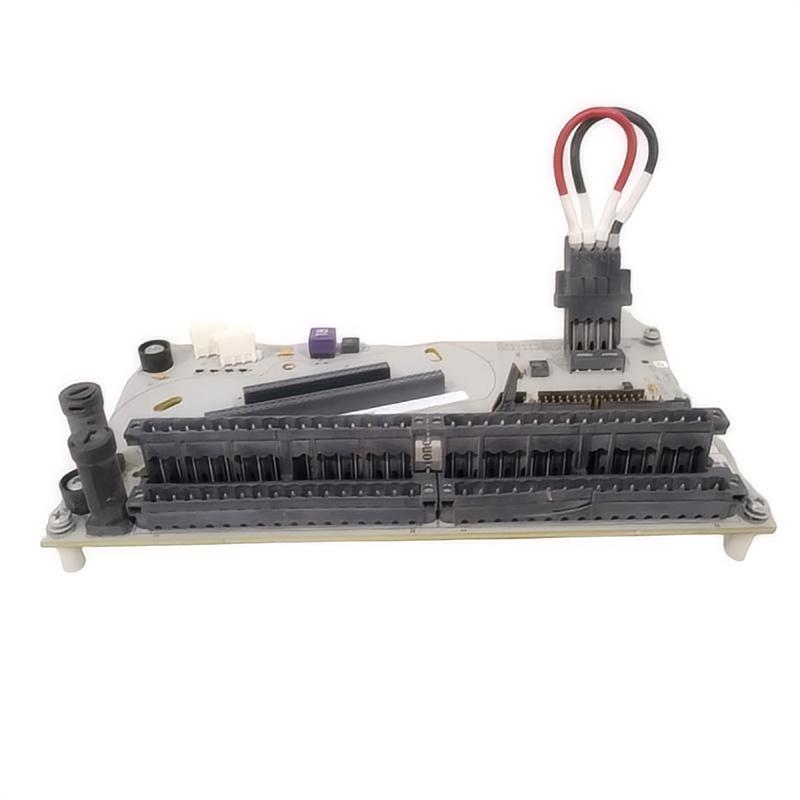

Honeywell CC-TD0B01 51308371-175 Digital Output Module

Overview

The Honeywell CC-TD0B01 is a digital output module designed for Honeywell control systems. It provides reliable switching of field devices, including actuators, relays, and indicators, enabling precise automation control and seamless integration into industrial networks.

General Information

Part Number: 51308371-175

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: CC-TD0

Type: Digital Output Module

Mounting: DIN rail or panel installation within industrial control cabinets

Technology: Solid-state switching, fault detection, and diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via control system backplane

Protection: Overload, short-circuit, and reverse-polarity protection

Indicators: LEDs for output status and module health

Communication & Interface

Bus Interface: Compatible with Honeywell controller networks

Output Channels: Multiple digital outputs for field device control

Diagnostics: Output monitoring, fault detection, and status reporting

Operator Interface: LED indicators for each output channel

Reset Features: Supports soft and hardware reset for module recovery

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 278 × 29 × 19 mm

Weight: ~ 0.6 kg
