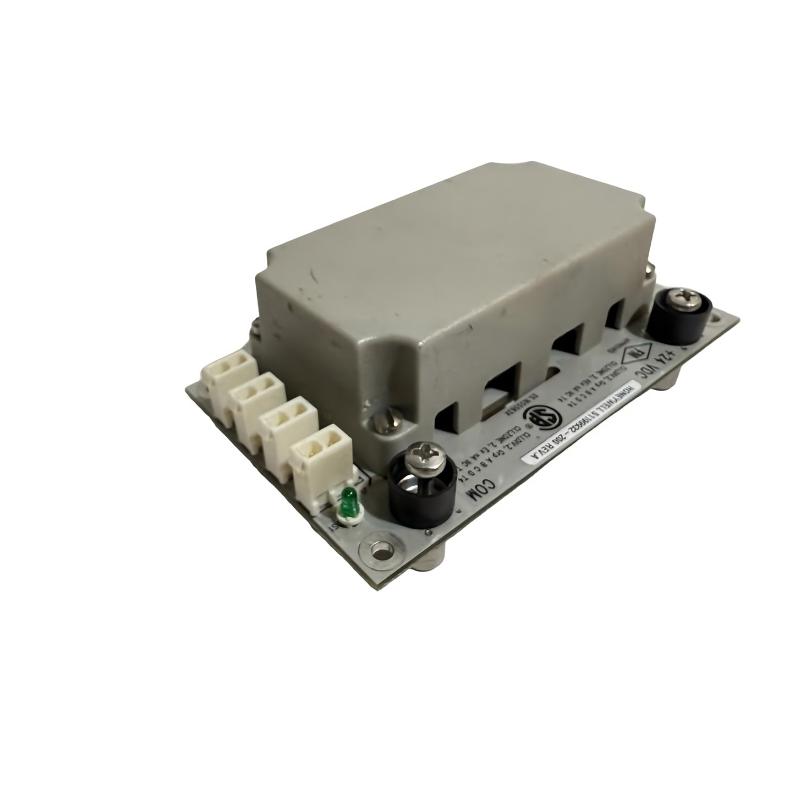

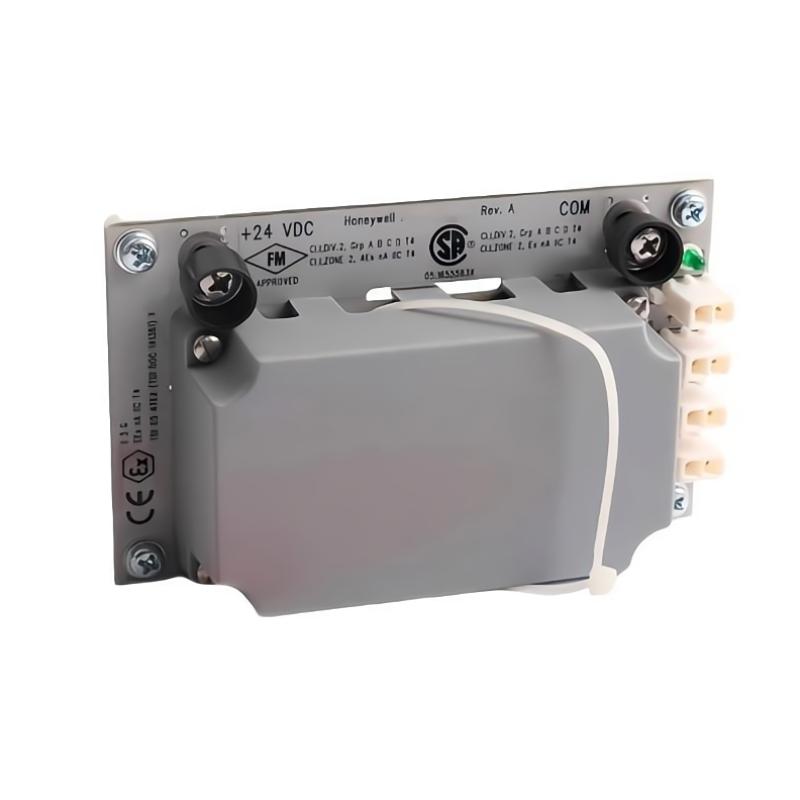

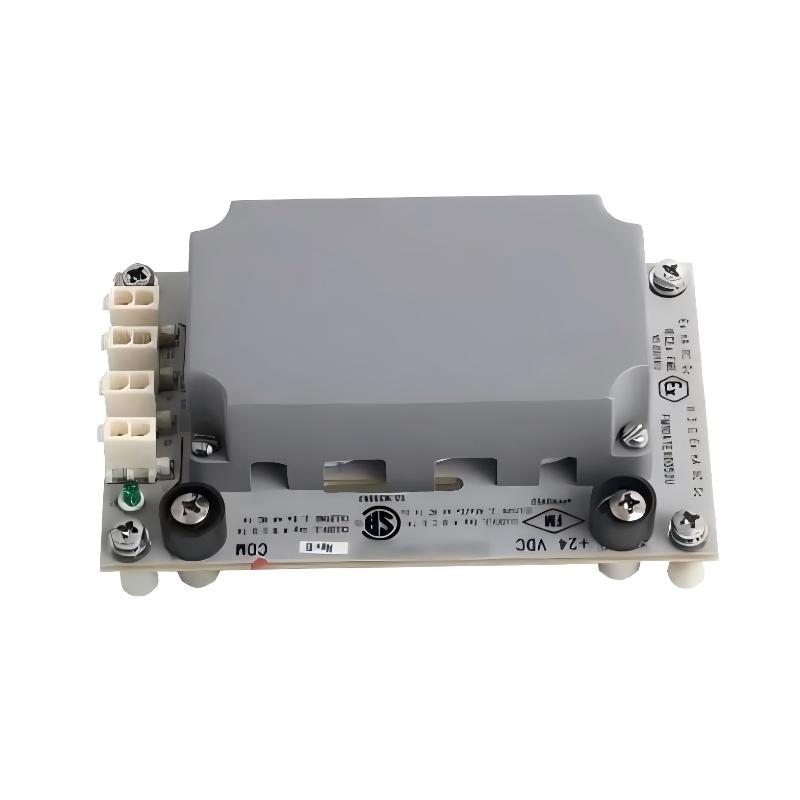

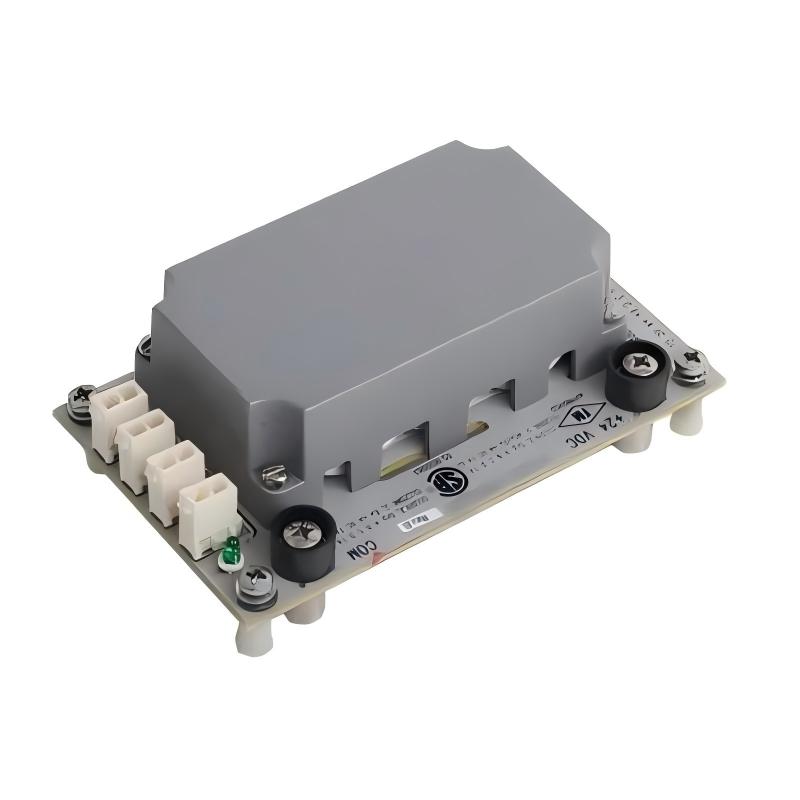

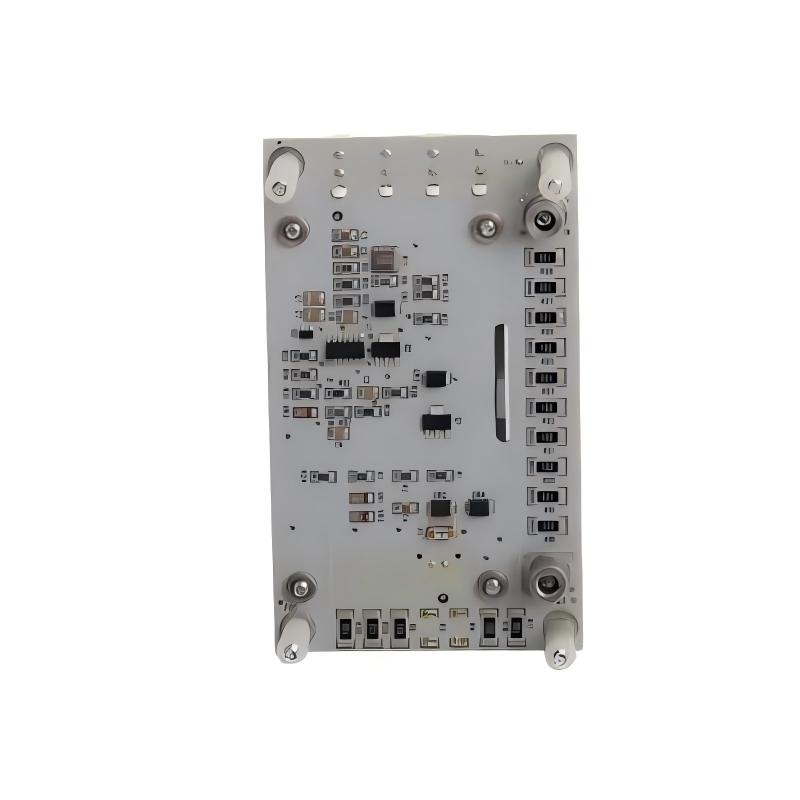

Honeywell CC-SCMB03 C300 Memory Backup Component

Overview

The Honeywell CC-SCMB03 is a memory backup component designed for Honeywell C300 controllers used in industrial automation systems. It safeguards critical controller data and configuration parameters during power interruptions, ensuring system stability and fast recovery once power is restored.

General Information

Part Number: CC-SCMB03

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: C300 Controller Components

Type: Memory Backup Component

Mounting: Direct installation on the C300 controller module

Technology: Battery-backed memory retention for controller data protection

Power Specifications

Supply Voltage: 3.6 V DC (internal battery system)

Power Consumption: Ultra-low power consumption for long-term memory retention

Input: Powered through integrated backup battery

Protection: Internal protection against short-circuit and voltage fluctuation

Indicators: None (status monitored via controller diagnostics)

Communication & Interface

Bus Interface: Integrated with the C300 controller architecture

Diagnostics: Battery and memory status monitored by the host controller

Operator Interface: Status information accessible through the controller system

Reset Features: Automatic data retention during power loss and seamless recovery after power restoration

I/O & Channels: Not applicable; dedicated to memory backup functionality

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for installation inside industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 102 × 51 × 25 mm

Weight: ~ 0.2 kg
