Overview

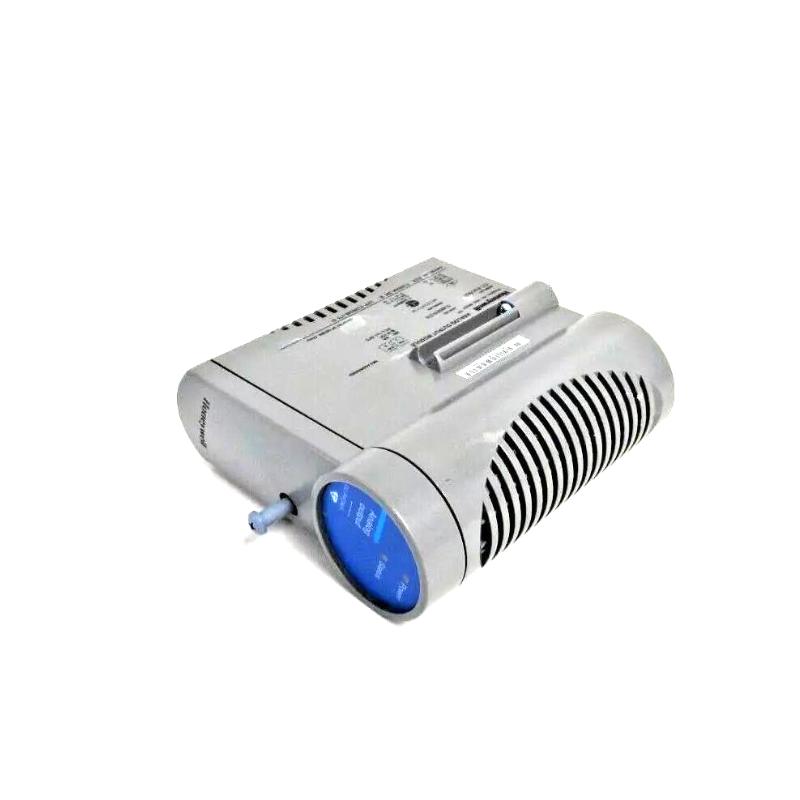

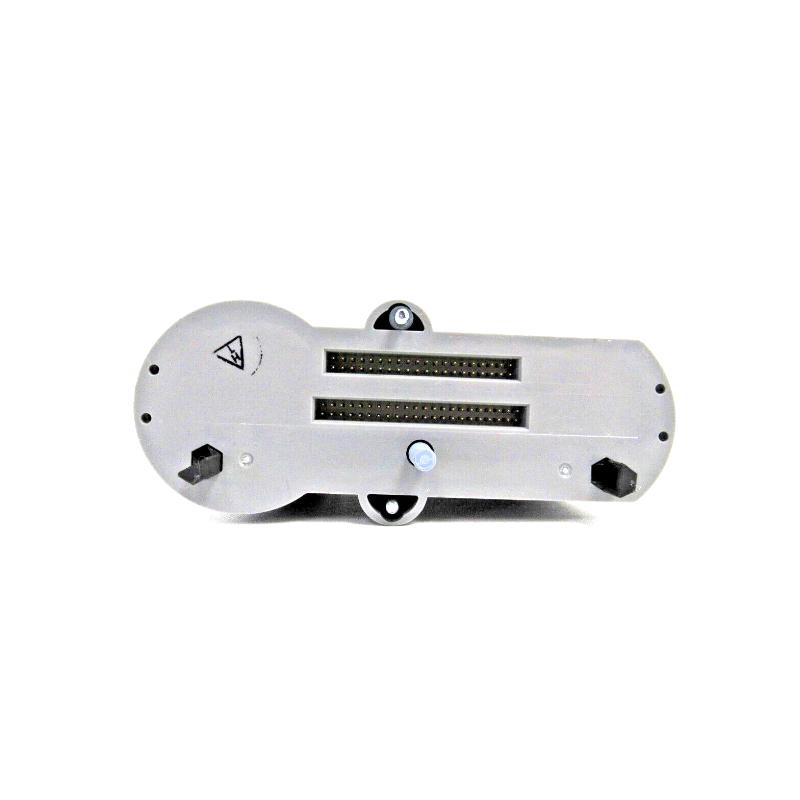

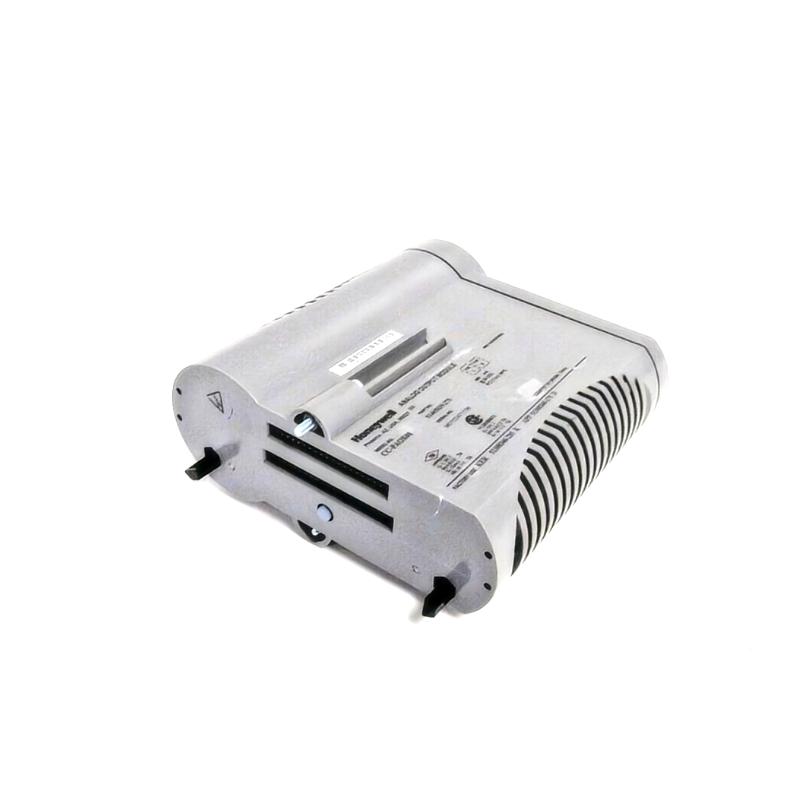

The Honeywell CC-PAOX01 51405039-275 is a high-performance analog output module for industrial automation and process control. Manufactured by Honeywell International Inc., USA, it provides accurate conversion of digital signals to analog outputs for actuators, recording devices, and monitoring systems.
General Information
Manufacturer: Honeywell International Inc.
Country of Origin: USA
Part Number: CC-PAOX01 51405039-275
Product Name: Experion® PKS Series C Analog Output Module
Product Type: High-Level Analog Output Module
Channels: 16
Output Types Supported: 4–20 mA, 0–20 mA
Mounting: Rack-mounted module
Application: Industrial automation, process control, DCS integration
Power Specifications
Supply Voltage: 24 V DC (±10%)
Power Consumption: Approx. 4 W
Field Power: Provided by external sources
Isolation: 500 V AC channel-to-channel, 1500 V AC channel-to-system
Communication & Interface
Signal Type: 4–20 mA, 0–20 mA analog output
Interface: HART 7 protocol support
Data Update Rate: Standard process scan rates
Diagnostics: Open circuit, short circuit, overrange/underrange detection
Redundancy: Supports redundant configurations
Environmental
Operating Temperature: 0°C to 60°C
Storage Temperature: −40°C to +85°C
Relative Humidity: 5% to 95% RH, non-condensing
Vibration Resistance: Compliant with industry standards
Protection Class: IP20 (installed in control cabinet)
Dimensions & Weight
Dimensions: 130 × 130 × 50 mm
Weight: Approx. 0.35 kg
