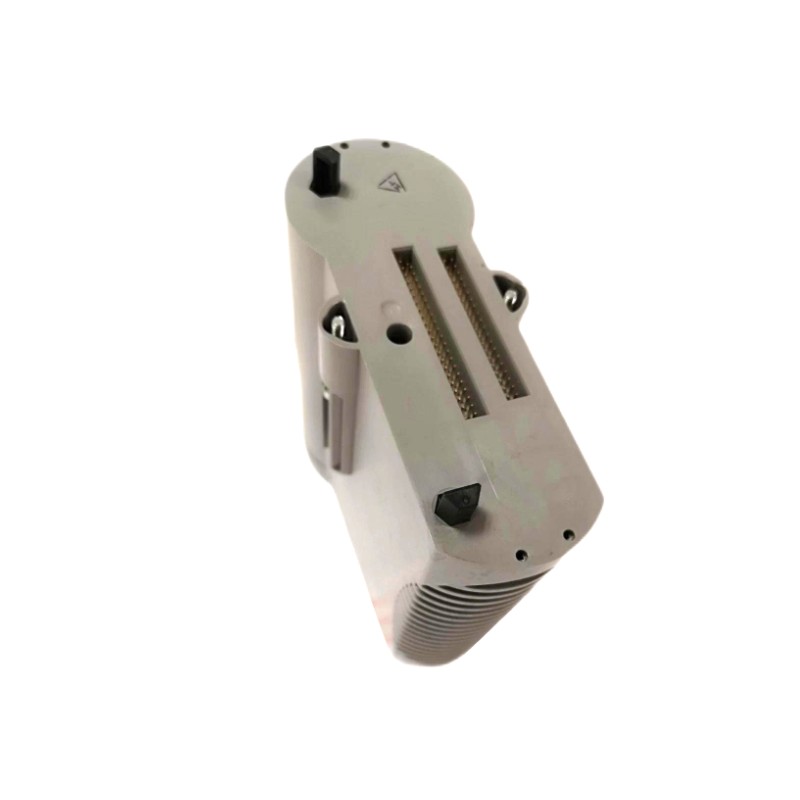

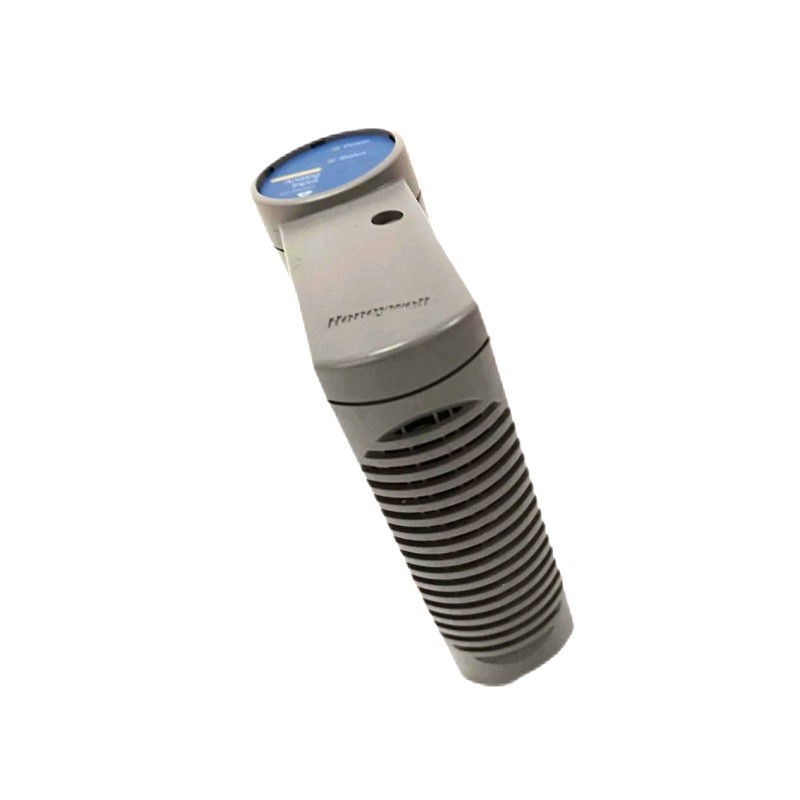

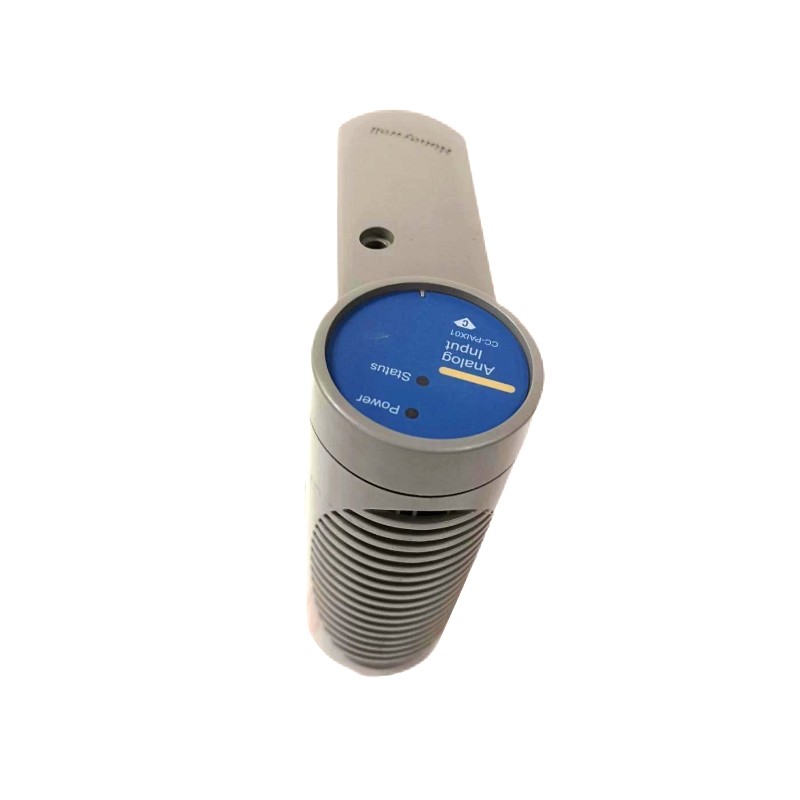

Honeywell CC-PAIX01 51405038-275 Analog Input Module Efficient delivery

Overview

The Honeywell CC-PAIX01 51405038-275 is a high-performance analog input module designed for industrial automation and process control systems. Manufactured by Honeywell International Inc., USA, this module delivers reliable acquisition of 4–20 mA analog signals and precise monitoring in distributed control systems (DCS).

General Information

Manufacturer: Honeywell International Inc.
Country of Origin: USA
Part Number: CC-PAIX01 51405038-275
Product Name: Experion® PKS Series C Analog Input Module
Product Type: High-Level Analog Input Module
Channels: 16 total (12 single-ended, 4 differential)
Input Types Supported: 4–20 mA, 0–20 mA
Mounting: Rack-mounted module
Application: Industrial process control, automation, and DCS integration

Power Specifications

Supply Voltage: 24 V DC (±10%)
Power Consumption: Approx. 1.5 W
Field Power: Provided by external sources
Isolation: 2500 V AC field-to-system

Communication & Interface

Signal Type: 4–20 mA and 0–20 mA analog input
Interface: HART 7 protocol support
Data Update Rate: Standard process scan rates
Diagnostics: Open circuit detection, short circuit detection, overrange/underrange detection
Redundancy: Supports redundant configurations for enhanced reliability

Environmental

Operating Temperature: 0 °C to 60 °C
Storage Temperature: −40 °C to +85 °C
Relative Humidity: 5% to 95% RH, non-condensing
Vibration Resistance: Compliant with industry standards
Protection Class: IP20 (for installation inside a control cabinet)

Dimensions & Weight

Dimensions: 63.5 x 124.46 x 307.34 mm
Weight:  0.299 kg
