Honeywell CC-PAIH01 51405038-175 High-Level HART Analog Input Module Hot Items

Overview

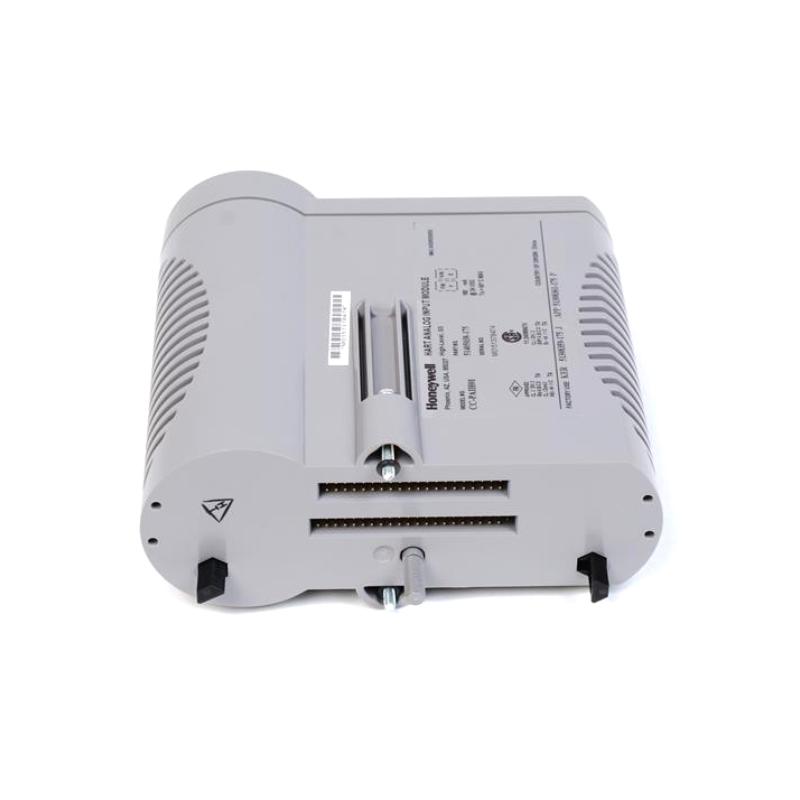

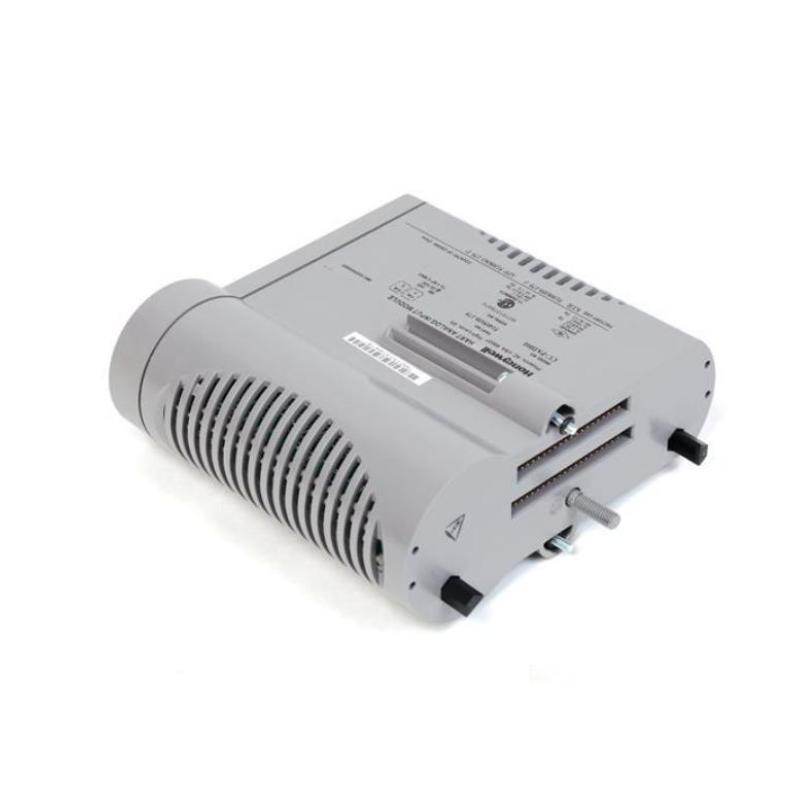

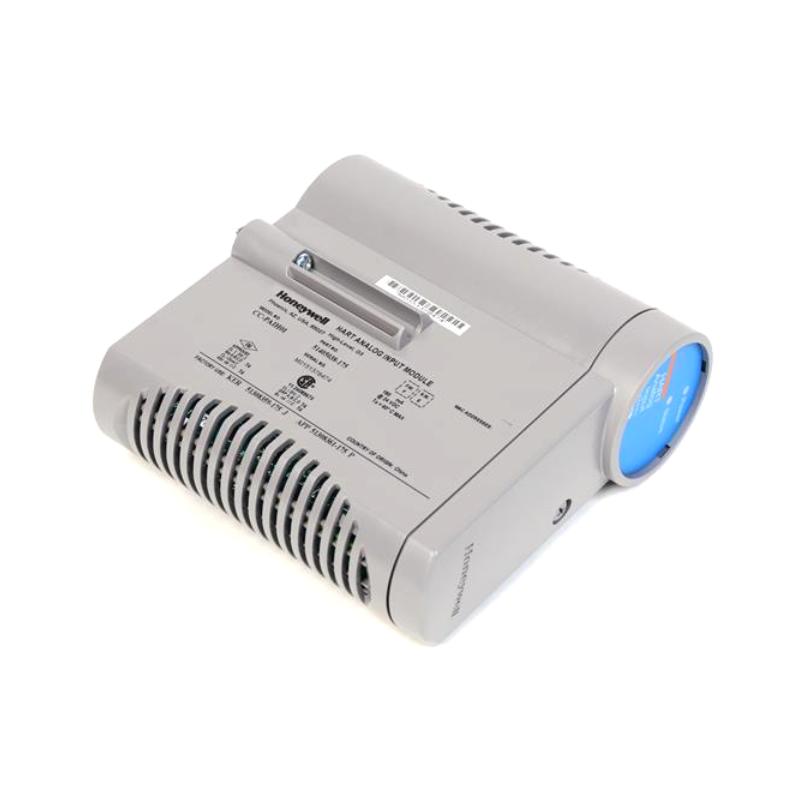

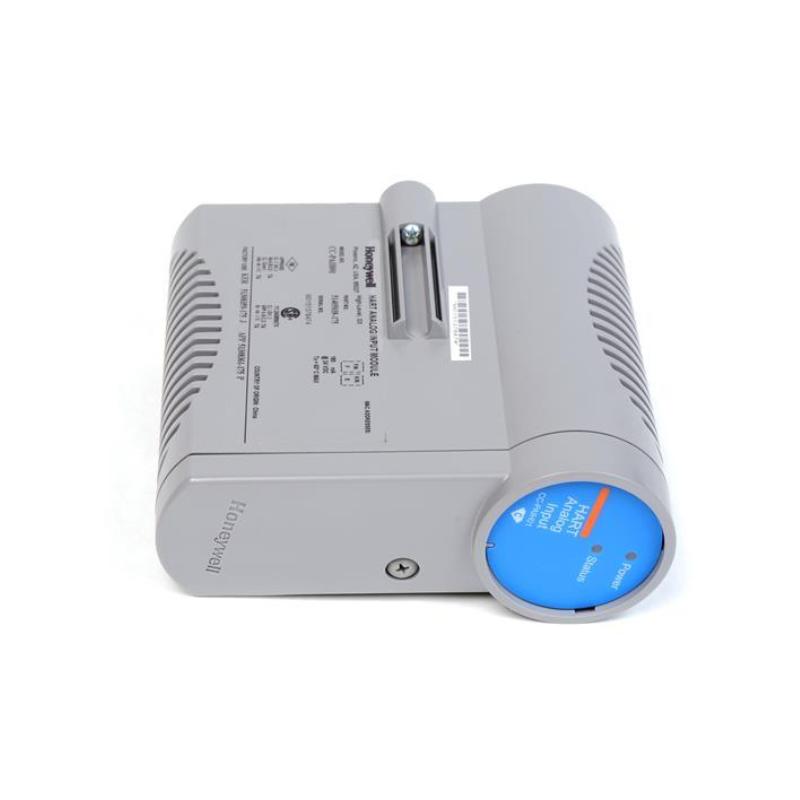

The Honeywell CC‑PAIH01 (51405038‑175) is a high-level analog input module designed for use in Honeywell's Experion® PKS and other control systems. It provides high-precision analog signal acquisition while supporting HART digital communication for smart field devices, making it ideal for process automation in industries such as oil & gas, chemical, and power generation.

General Information

• Manufacturer: Honeywell

• Model Number: CC‑PAIH01

• Part Number: 51405038‑175

• Type: High-Level HART Analog Input Module

• Function: Acquires analog signals from field devices and provides isolation for input channels

• Applications: Process automation, safety instrumented systems (SIS), industrial monitoring

Electrical Specifications

• Input Channels: 16

• Input Signal Types: Configurable 4–20 mA, 0–20 mA, ±10 V DC

• HART Protocol Support: HART 7 (Point-to-Point & Multidrop)

• Resolution: 16-bit

• Accuracy: ±0.1% of full scale

• Isolation: 1500 VAC (channel-to-channel)

• Update Rate: Configurable (typical 100 ms per channel)

• Power Supply: 24 VDC (from system backplane)

• Operating Temperature Range: −40 °C to +70 °C

Environmental Specifications

• Storage Temperature Range: −40 °C to +85 °C

• Humidity Range: 5% to 95% relative humidity (non-condensing)

• Protection Rating: IP20 (when installed in standard rack/cabinet)

• Installation Environment: Industrial control cabinet, DIN‑rail or rack mount

Dimensions & Weight

• Dimensions (L × W × H): Approx. 100  × 120  × 60 mm

• Weight: Approx. 0.5 kg
