Overview

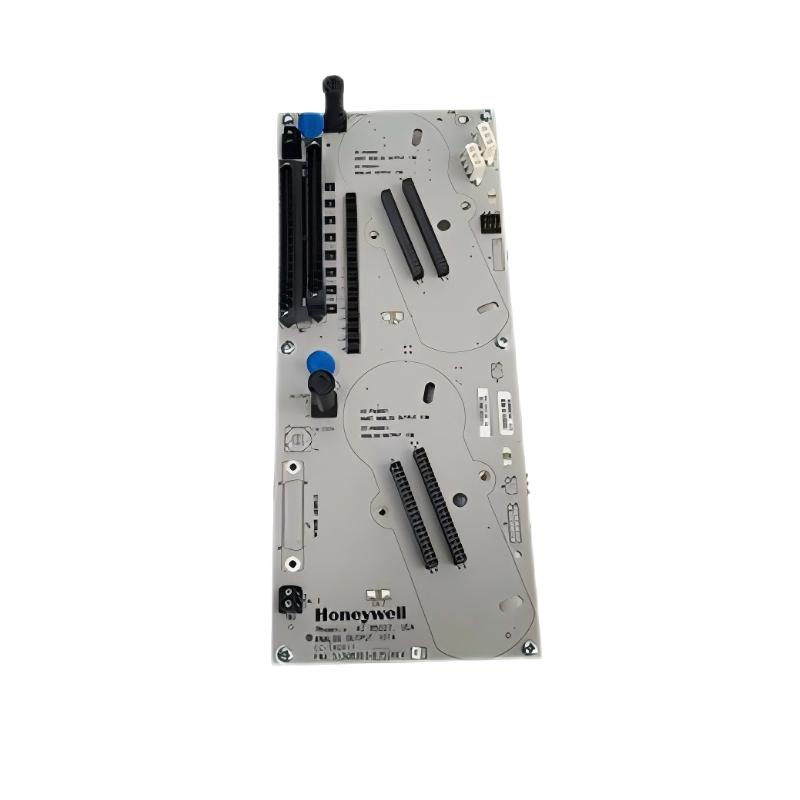

The Honeywell CC‑GDIL21 (Part No. 51306319‑175) is a digital input module designed for industrial automation and control systems. It offers high-density signal acquisition with reliable isolation and fast response times, making it suitable for safety-critical and process control applications.

General Information

• Manufacturer: Honeywell

• Model Number: CC‑GDIL21

• Part Number: 51306319‑175

• Type: Digital Input Module (GI/IS IOTA)

• Series: Experion Series‑C I/O

• Function: Acquires discrete (on/off) signals from field devices and provides isolation for input channels

• Applications: Process automation, safety instrumented systems (SIS), industrial monitoring

Electrical Specifications

• Input Channels: 32

• Input Voltage Range: 18–30 V DC

• Input Impedance: 4.2 kΩ

• ON Sense Threshold: ≥13 V DC or ≥3 mA

• OFF Sense Threshold: ≤5 V DC or ≤1.2 mA

• Scanning Resolution: 1 ms for Sequence of Events (SOE)

• Scanning Speeds: Normal – 20 ms; Fast – 5 ms

• Absolute Delay: 5 ms ± 20%

• Galvanic Isolation: 1500 V AC RMS or ±1500 V DC

• Isolation Technique: Optical (Integrated in IOM)

Environmental Specifications

• Operating Temperature Range: −40 °C to +70 °C

• Protection Rating: IP20 (when installed in standard rack/cabinet)

• Installation Environment: Industrial control cabinet, DIN‑rail or rack mount

Dimensions & Weight

• Dimensions (L × W × H): Approx. 100  × 120  × 60 mm

• Weight: Approx. 0.5 kg
