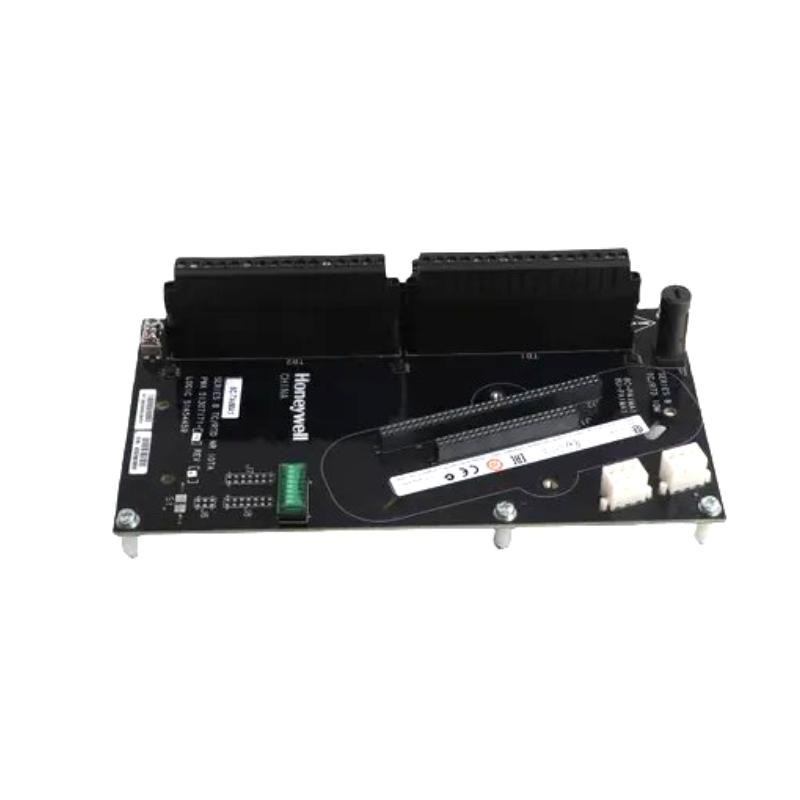

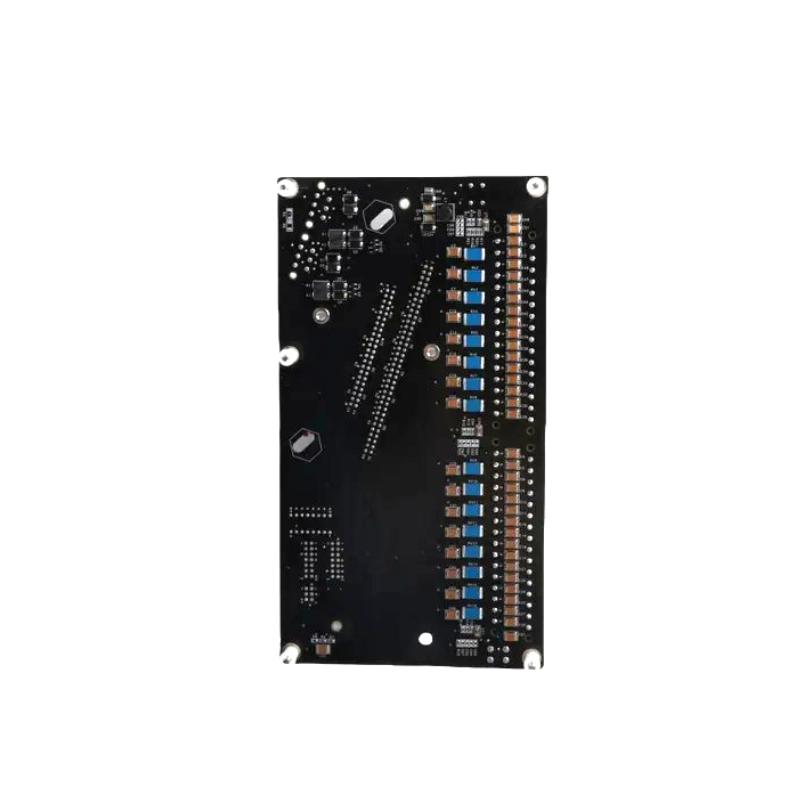

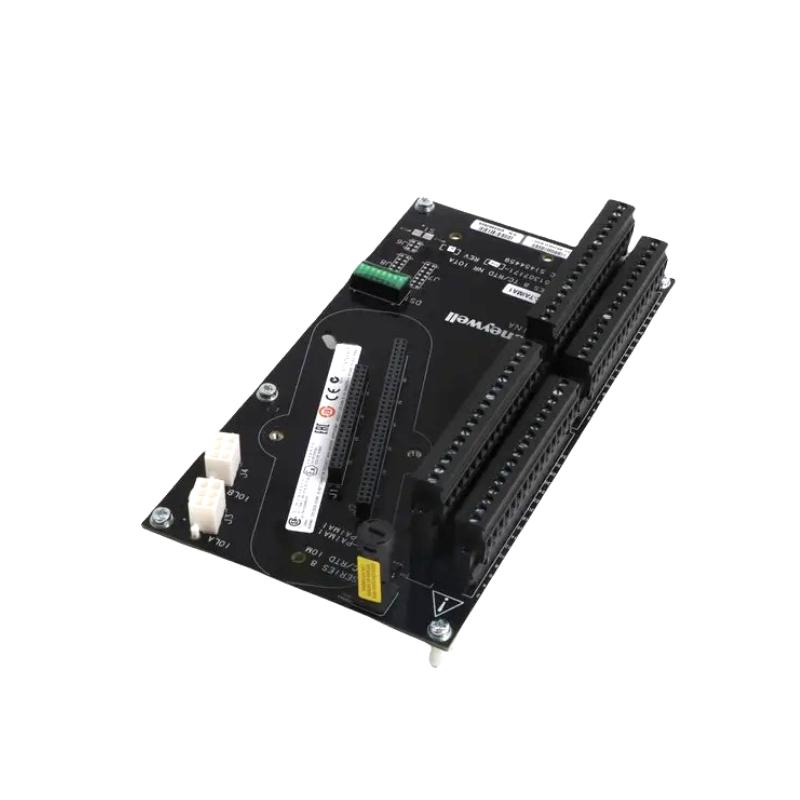

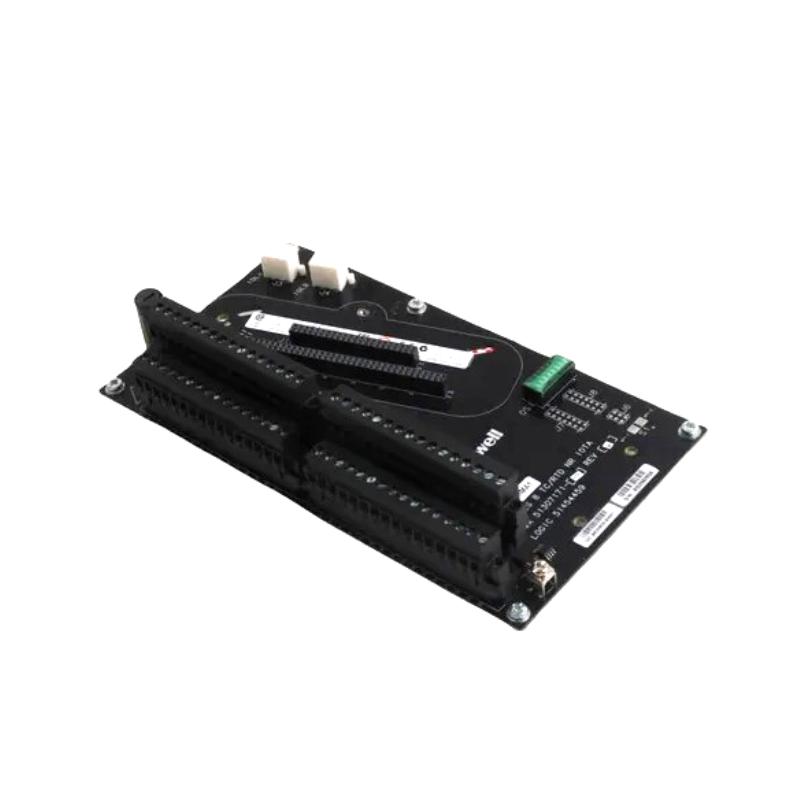

Honeywell 8C-TDODB1 51307151-175 Digital Output Module Price Advantage

Overview
The Honeywell 8C-TDODB1 (51307151-175) is a high-density 32-channel digital output module from the Series 8 I/O family. Designed for use with the C300 controller in Honeywell Experion PKS systems, it provides fast and reliable 24 V DC discrete output control to operate a wide range of field devices such as relays, lamps, and solenoid valves.

General Information

• Manufacturer: Honeywell Process Solutions

• Origin: United States

• Model Number: 8C-TDODB1

• Part Number: 51307151-175

• Type: Digital Output Module

• Series: Series 8 (C300 Controller Platform)

• Channels: 32 isolated digital outputs

• Mounting: Installed on IOTA / IOM base assembly

• Function: Provides discrete output control signals from the controller to field devices for process operation

Power Specifications

• Supply Voltage: 24 V DC nominal

• Output Voltage Range: 18 V DC to 30 V DC

• Channel Current: Up to 0.5 A per channel

• Power Consumption: ≤ 12 W

• Isolation Voltage: 1000 V AC RMS (output to system)

• Protection: Integrated short-circuit, overload, and reverse-polarity protection

Communication & Interface

• System Interface: Communicates with the C300 controller through the I/O Link network

• Output Type: 24 V DC transistor-type outputs

• Diagnostics: LED indicators for each channel, fault monitoring, and self-diagnostic features

• Configuration: Hot-swappable design allowing replacement without interrupting system operation

Environmental

• Operating Temperature: −40 °C to +70 °C

• Humidity: 5 % to 95 % RH, non-condensing

• Protection Rating: IP20 (intended for installation in an enclosed control cabinet)

Dimensions & Weight

• Dimensions (L × W × H): Approx. 313 × 278 × 30 mm

• Weight: Approx. 0.55 kg
