Overview

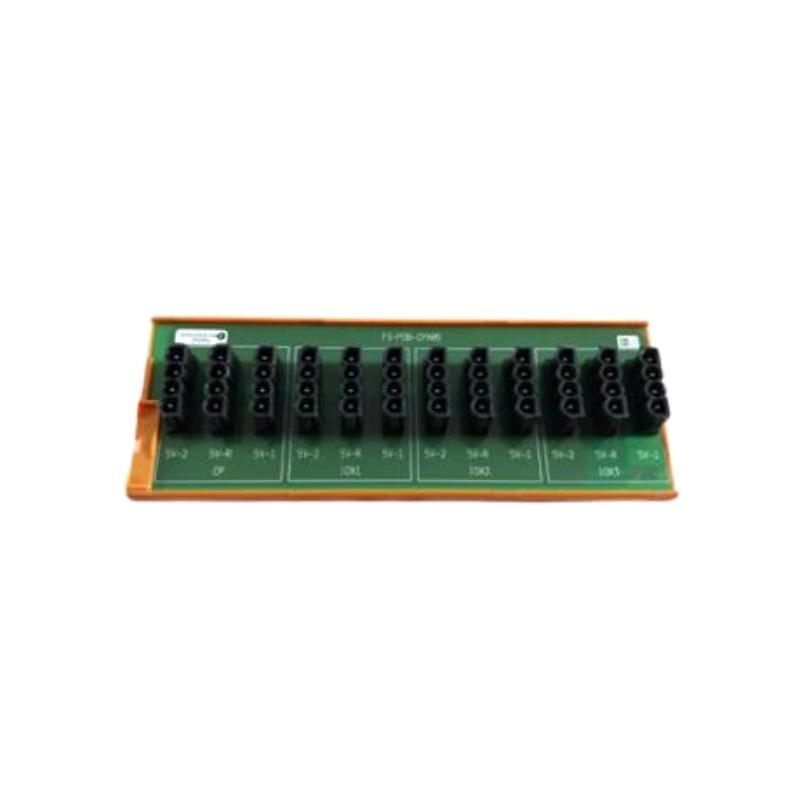

The Honeywell FS-PDB-IOX05 is an I/O interface module used in Experion and C300 control systems. It provides signal conditioning, reliable communication, and connection between field I/O modules and the main system bus, ensuring stable and accurate data transfer.
General Information
Part Number: FS-PDB-IOX05
Manufacturer: Honeywell
Series: Experion / C300
Type: I/O Interface Module
Mounting: Installed in the system chassis or I/O rack
Technology: Signal processing with internal bus communication
Power Specifications
Supply Voltage: Backplane-powered
Power Consumption: Low power module
Input Source: System backplane
Protection: Surge and noise protection built-in
Indicators: LED status and operation indicators
Communication & Interface
System Role: Connects field I/O modules to the controller via system bus
I/O Bus Interface: Experion / C300 internal I/O bus
Diagnostics: Module self-check and fault indication
Operator Interface: LEDs for module status
Reset Features: Supports system-managed reset
I/O & Channels
Channel Type: Signal interface
Relay Channels: None
External Load Support: Not applicable
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial control cabinet
Dimensions & Weight
Dimensions (W × H × D): Approx. 234 × 27 × 112 mm
Weight: ~0.3 kg
