Overview

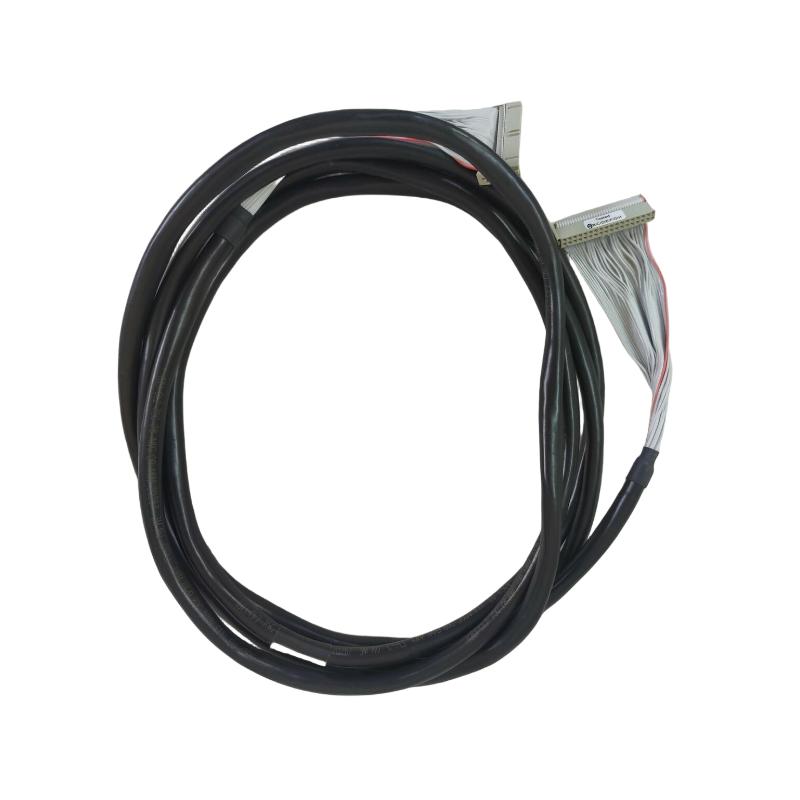

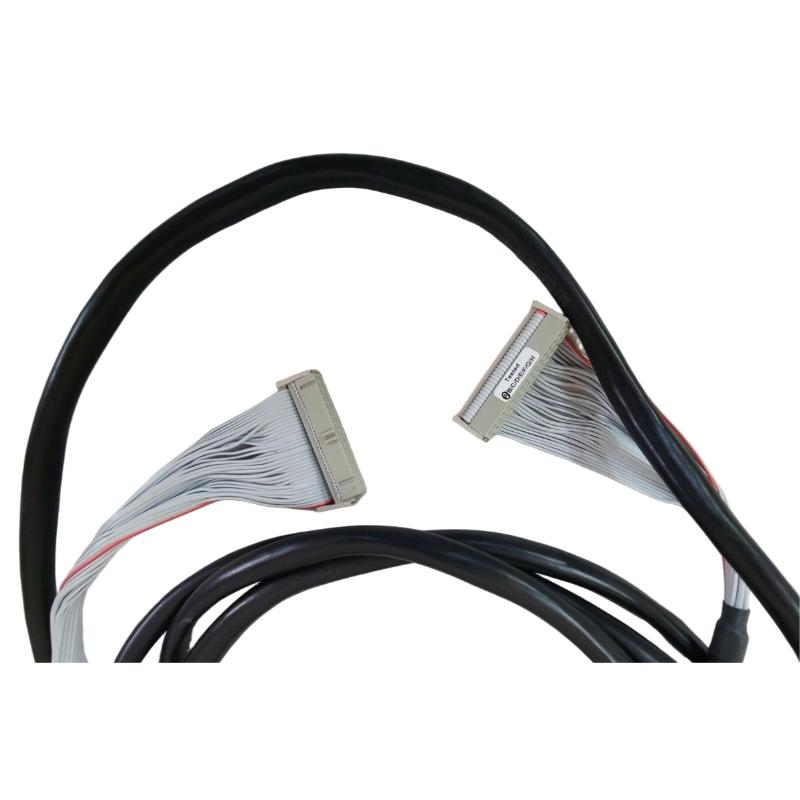

The Honeywell FS-IOBUS-CPX-1 is an I/O bus interface module designed for Experion and C300 control systems. It provides reliable communication and signal routing between the controller and field I/O modules, ensuring stable operation and proper backplane integration.
General Information

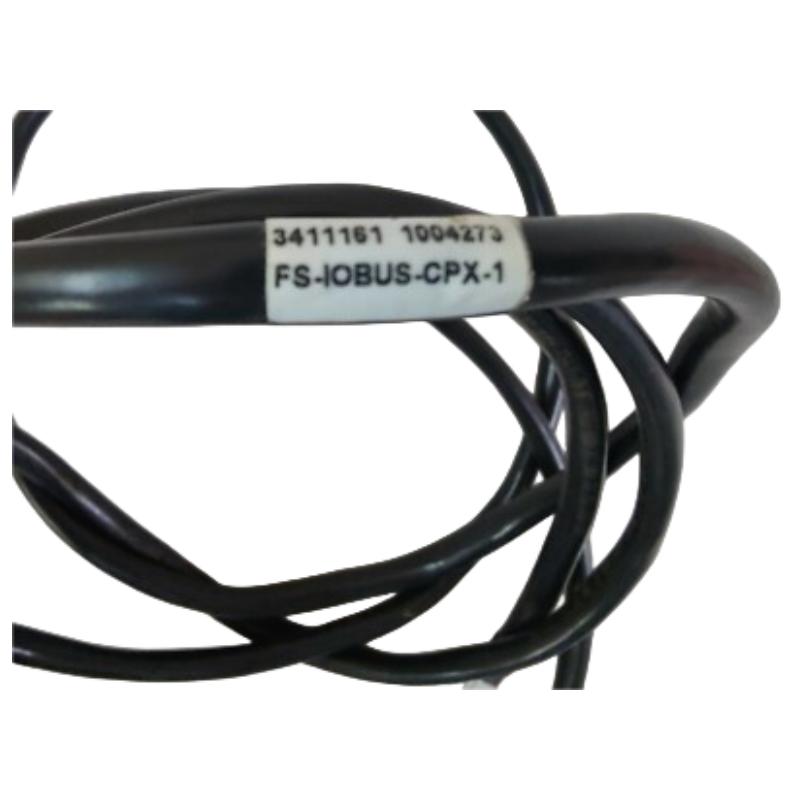

Part Number: FS-IOBUS-CPX-1
Manufacturer: Honeywell
Series: Experion / C300
Type: I/O Bus Interface Module
Mounting: Installed on I/O chassis or terminal base
Technology: Passive signal routing with connector-based backplane communication
Power Specifications
Supply Voltage: Powered via I/O backplane
Power Consumption: Minimal (passive module)
Input Source: Backplane power distribution
Protection: Connector protection and bus isolation
Indicators: None
Communication & Interface
System Role: Connects controller to I/O modules
I/O Bus Interface: Experion / C300 I/O bus
Connectors: Standard backplane connection (female/male configuration)
Diagnostics: Not applicable
Operator Interface: None
Reset Features: Not applicable
I/O & Channels
I/O Channels: None
Relay Channels: None
External Load Support: Not applicable
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment
Dimensions & Weight
Dimensions (W × H × D): 234 × 27 × 112 mm
Weight: ~0.3 kg
