Overview

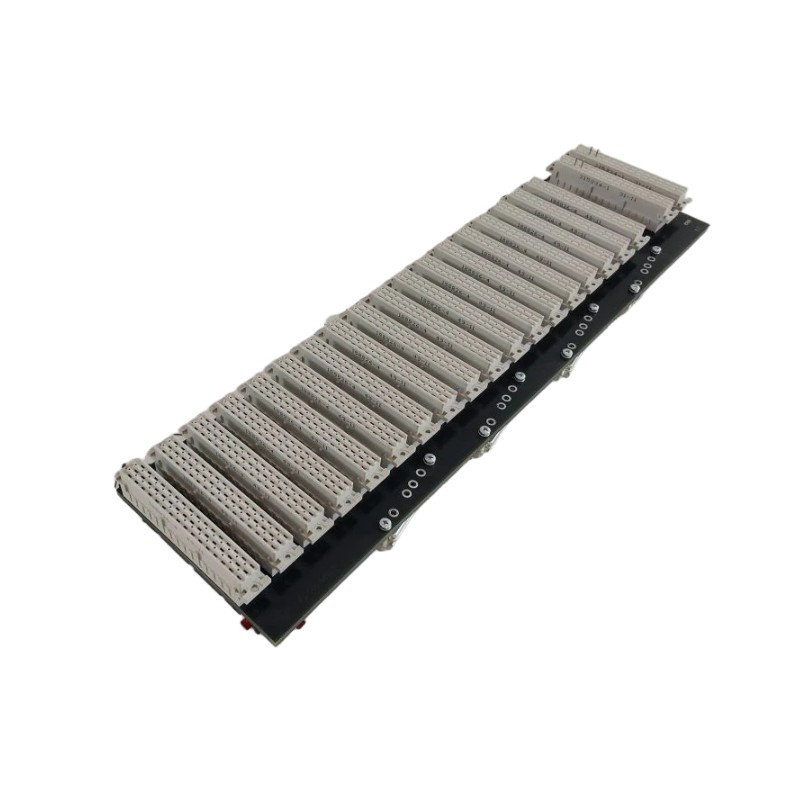

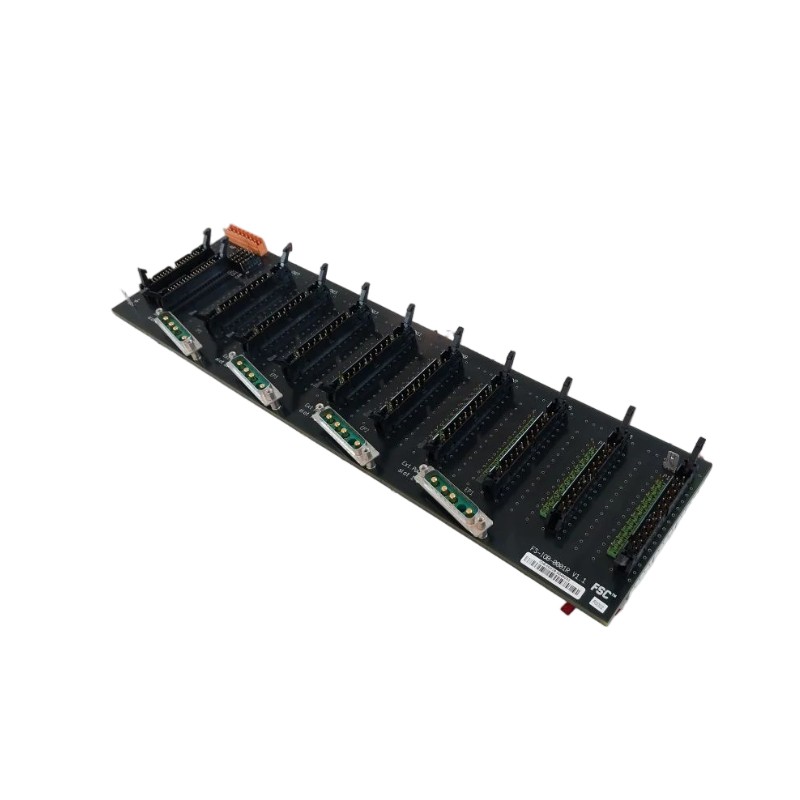

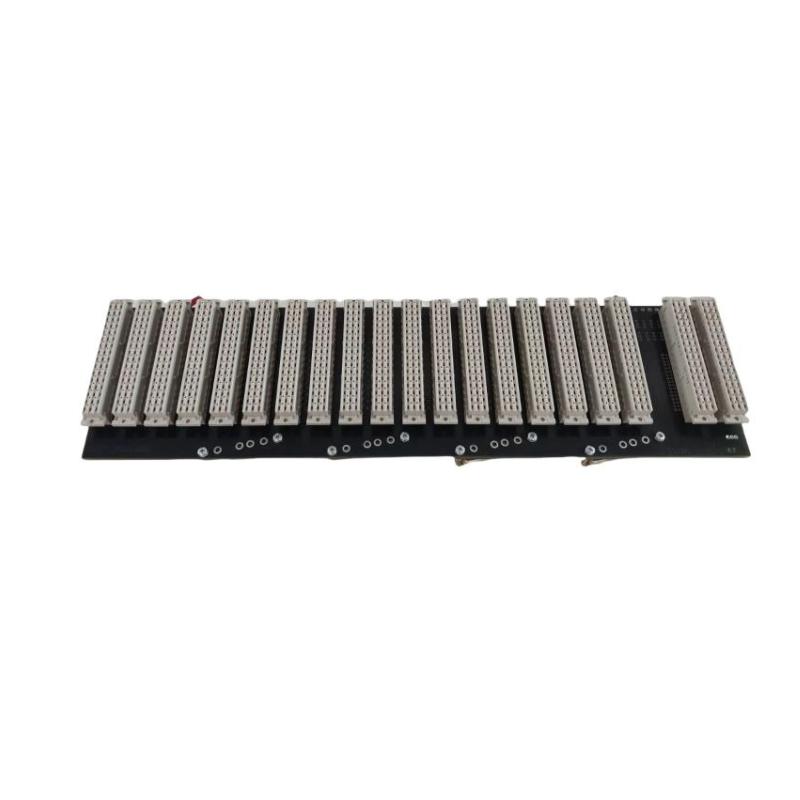

The Honeywell FS-IOB-0001S is an I/O base module used in Honeywell Experion and C300 control systems. It provides the physical and electrical foundation for installing Field I/O modules, ensuring proper mechanical support, secure backplane connection, and reliable communication within the I/O subsystem.
General Information
Part Number: FS-IOB-0001S
Manufacturer: Honeywell
Series: Experion / C300
Type: I/O Base Module
Mounting: Cabinet or chassis installation
Technology: Passive backplane interface with mechanical alignment features
Power Specifications
Supply Voltage: Supplied from system backplane
Power Consumption: None (passive module)
Input Source: Backplane power distribution
Protection: Reinforced connector housing and grounding support
Indicators: None
Communication & Interface
System Role: Serves as the base interface for Honeywell I/O modules
Backplane Interface: Experion / C300 I/O bus
Diagnostics: Not applicable (no active circuitry)
Operator Interface: None
Reset Features: Not applicable
I/O & Channels
I/O Channels: None (base only)
Relay Channels: None
External Load Support: Not applicable
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial control cabinet environment
Dimensions & Weight
Dimensions (W × H × D): Approx. 234 × 27 × 112 mm
Weight: ~0.25 kg
