Overview

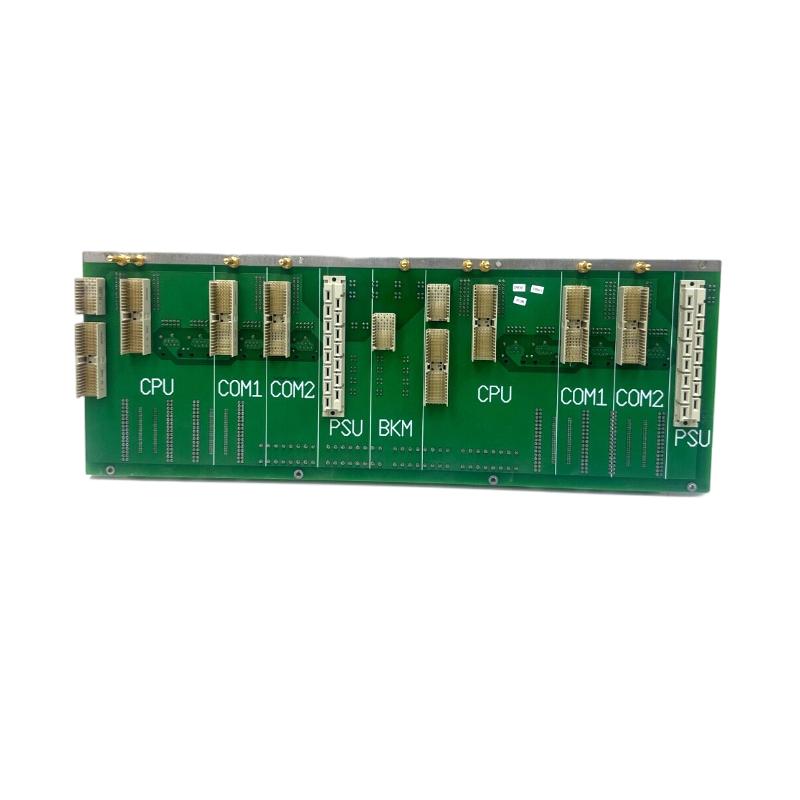

The Honeywell FS-CPB-0001 is a Control Processor Base module designed for use in Honeywell’s Experion and C300 process control systems. It provides the mechanical and electrical foundation for installing a control processor, ensuring stable mounting, backplane connectivity, and reliable communication with the system network.
General Information
Part Number: FS-CPB-0001
Manufacturer: Honeywell
Series: Experion / C300
Type: Control Processor Base Module
Mounting: Chassis-mounted base for processor modules
Technology: Backplane interface, grounding support, module alignment guides
Power Specifications
Supply Voltage: Provided through system backplane
Power Consumption: None (passive base module)
Input Source: System power distribution through chassis
Protection: Backplane connector protection and reinforced grounding
Indicators: None
Communication & Interface
System Role: Serves as the physical and electrical base for C300 control processors
Backplane Interface: Standard C300 / FIM / I/O network bus
Diagnostics: No active diagnostics (passive module)
Operator Interface: None
Reset Features: Not applicable
I/O & Channels
I/O Channels: None
Relay Channels: None
External Load Support: Not applicable
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial control cabinet protection
Dimensions & Weight
Dimensions (W × H × D): Approx. 234 × 27 × 112 mm
Weight: ~0.25 kg
