Overview

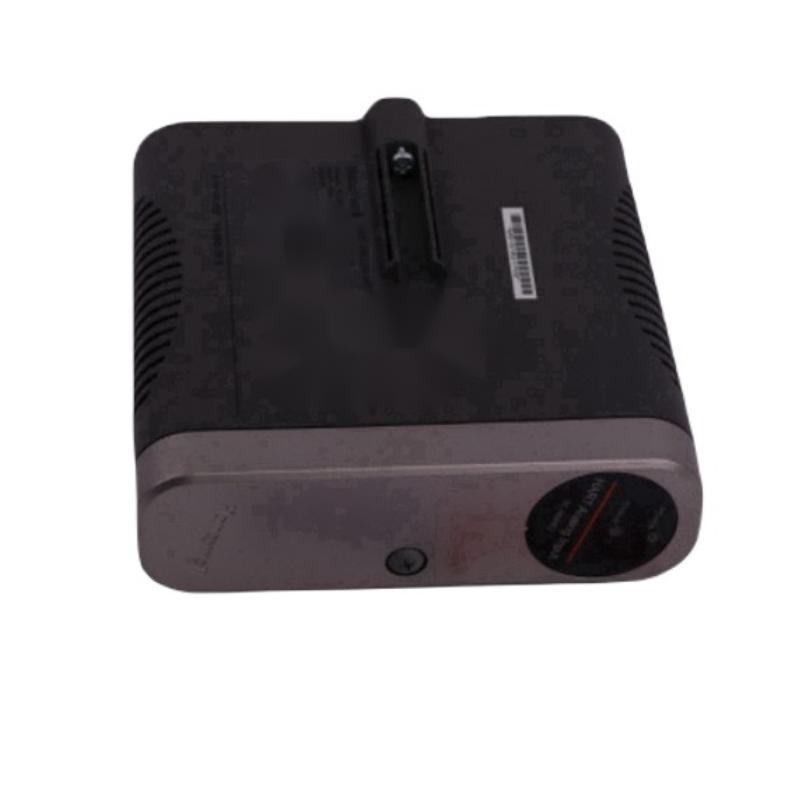

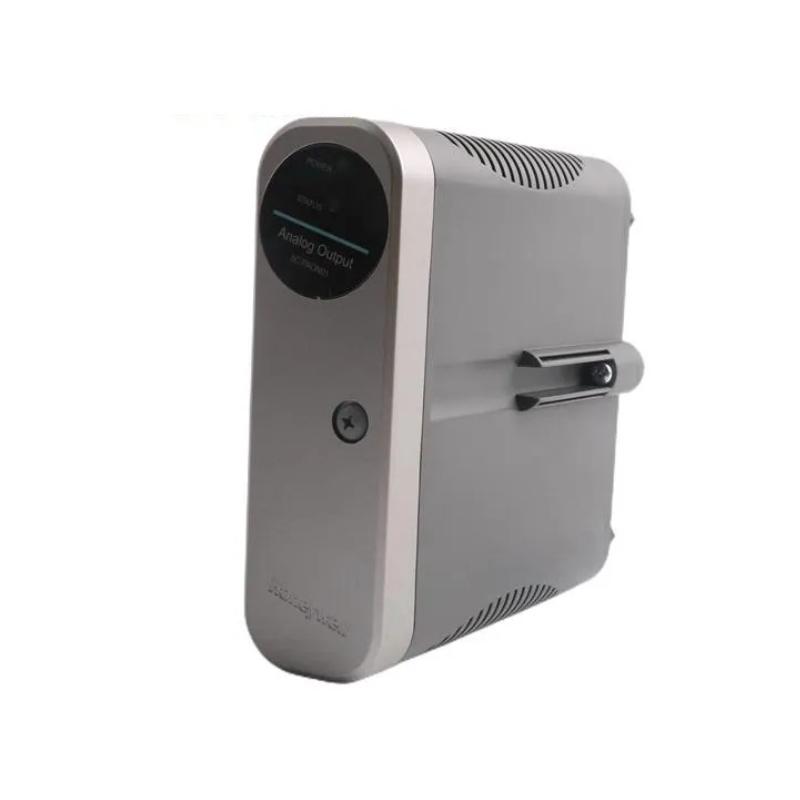

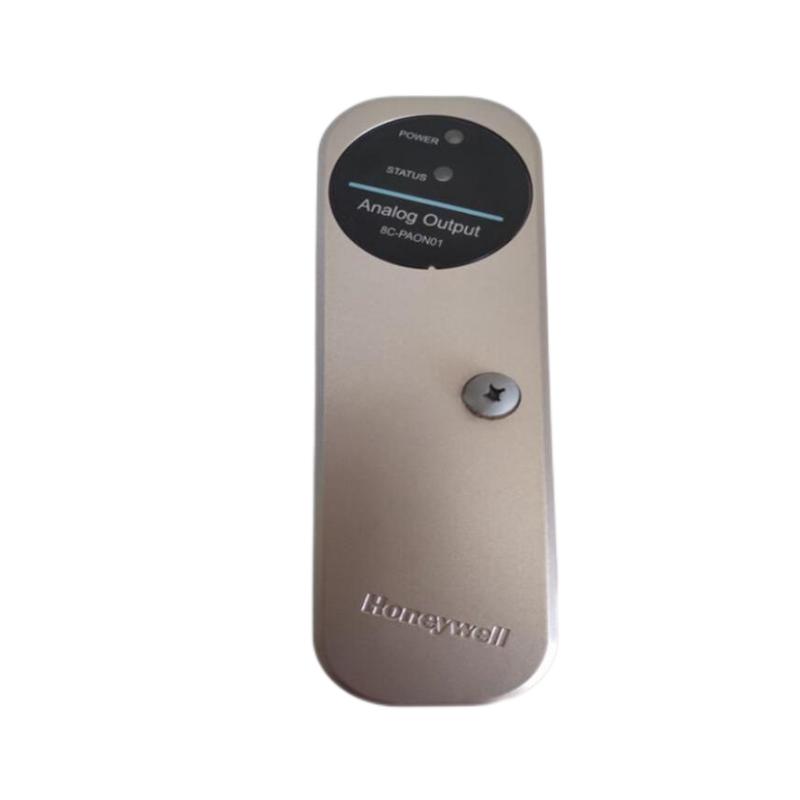

The Honeywell 8C-PAON01 (51454357-175) is a 16-channel analog output module designed for process automation systems. It provides 4–20 mA DC outputs with HART communication, advanced diagnostics, and configurable fail-safe functions. The coated version ensures durability and protection in harsh industrial environments.

General Information

• Part Number: 51454357-175 / 8C-PAON01

• Product Name / Model: 8C-PAON01 Analog Output Module

• Manufacturer: Honeywell

• Country of Origin: United States

• Series / Module Type: Coated Series 8 AO

• Type: Analog Output Module

• Mounting / Format: Backplane / rack installation

• Application Area: Industrial process control, DCS systems, plant automation

Electrical Specifications

• Number of Output Channels: 16

• Output Type: 4–20 mA DC

• Output Range: Configurable (2.9 mA to 21.1 mA)

• Maximum Open-Circuit Voltage: 22 V

• Output Ripple: 100 mV peak-to-peak (on 250 Ω load)

• Resolution: ±0.05% of full scale

• Accuracy: ±0.35% of full scale (at 25 °C)

• Response Time: 80 ms (to reach within 1%)

• Fail-Safe (FAILOPT): Configurable (HOLD last value or set to safe value)

• Diagnostics: Open-wire detection and soft-failure indication

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −40 °C to +70 °C

• Relative Humidity: Up to 95%, non-condensing

• Cooling Method: Natural convection

• Protection: Conformal coating for humidity and dust resistance

Dimensions & Weight

• Dimensions (L × W × H): 210  × 70  × 58 mm

• Weight: 0.30 kg
