Overview

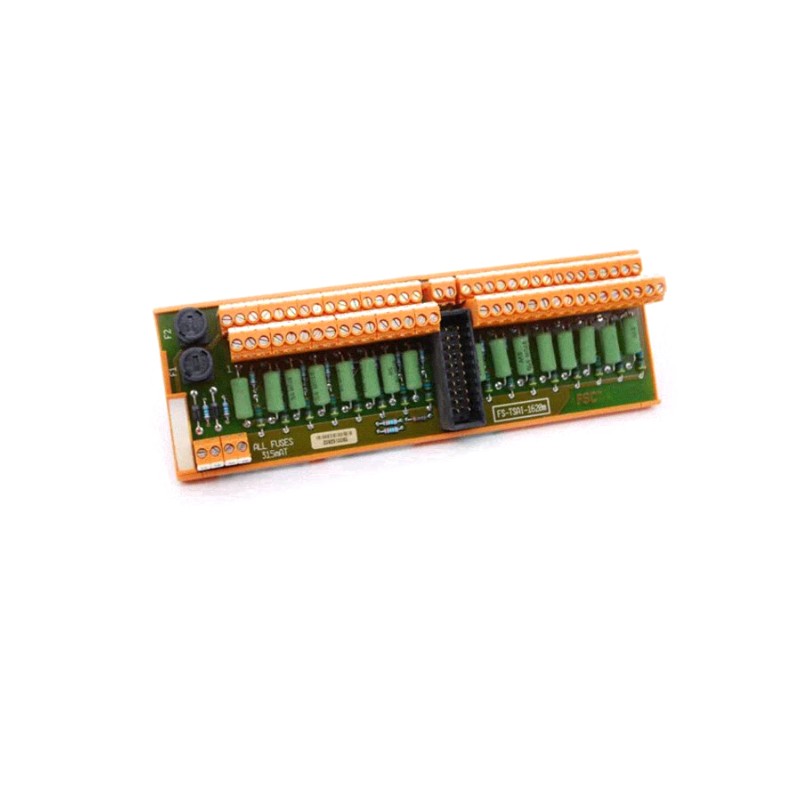

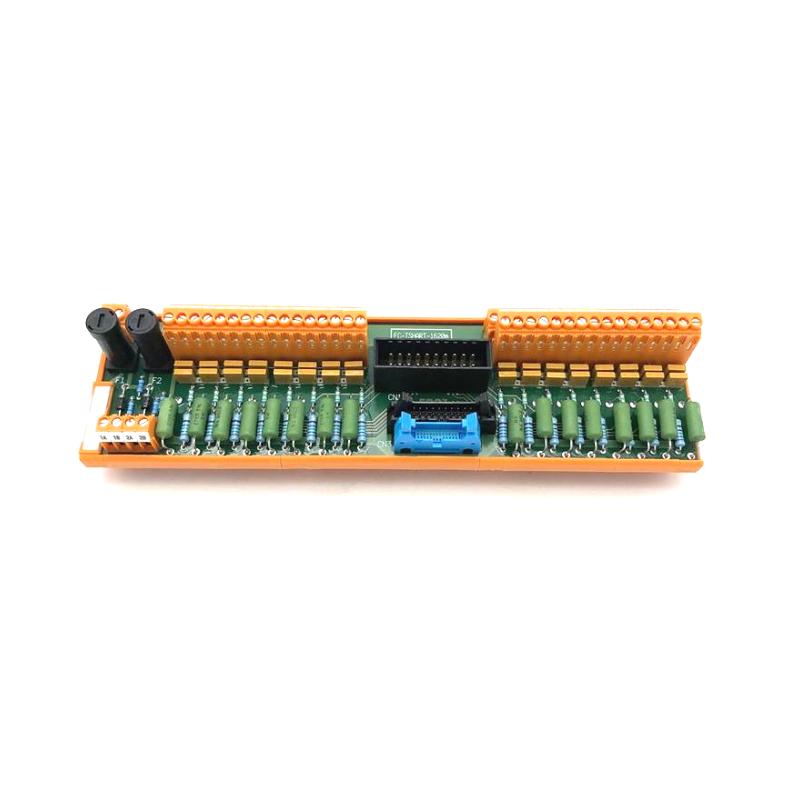

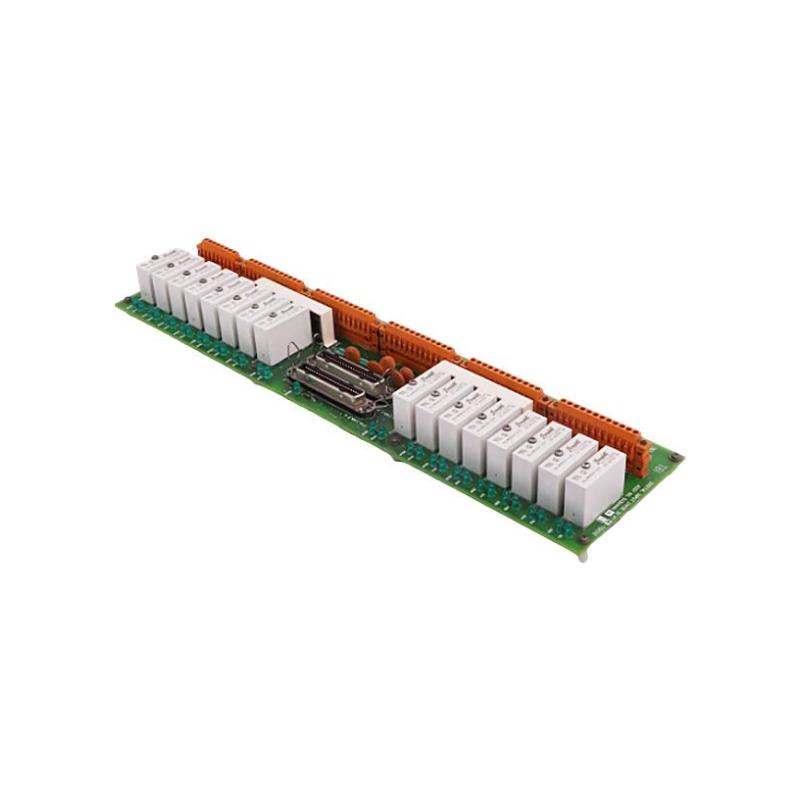

The Honeywell FC-TSHART-1620M is a 16-channel analog input field termination assembly (FTA) module used in Honeywell Safety Manager systems. It accepts 0–20 mA and 4–20 mA signals from field transmitters and provides HART communication for diagnostics and configuration.
General Information
Part Number: FC-TSHART-1620M
Manufacturer: Honeywell
Series: FC (Field/Control Modules)
Type: Field Termination Assembly (FTA) Module
Mounting: Snap-in DIN rail installation
Technology: Analog signal conversion, HART communication, fault monitoring
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low no-load current
Input: Powered from external 24 V DC supply
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LEDs for power and fault status
Communication & Interface
Field Interface: Accepts analog signals from transmitters
Bus Coupler Role: Converts and routes field signals to SAI-1620m safe analog modules
Diagnostics: Monitors channel signals and external power supply
Operator Interface: LED indicators for power and fault
Reset Features: Supports soft and hardware reset via Safety Manager
I/O & Channels
Analog Inputs: 16 channels (divided into 2 groups of 8, common 0 V)
Digital Outputs: HART communication for each channel
External Load Support: Can interface with external devices within rated limits
Environmental
Operating Temperature: 0 to 50 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment
Dimensions & Weight
Dimensions (L × W × H): 250 × 70 × 60 mm
Weight: ~ 3.0 kg
