Overview

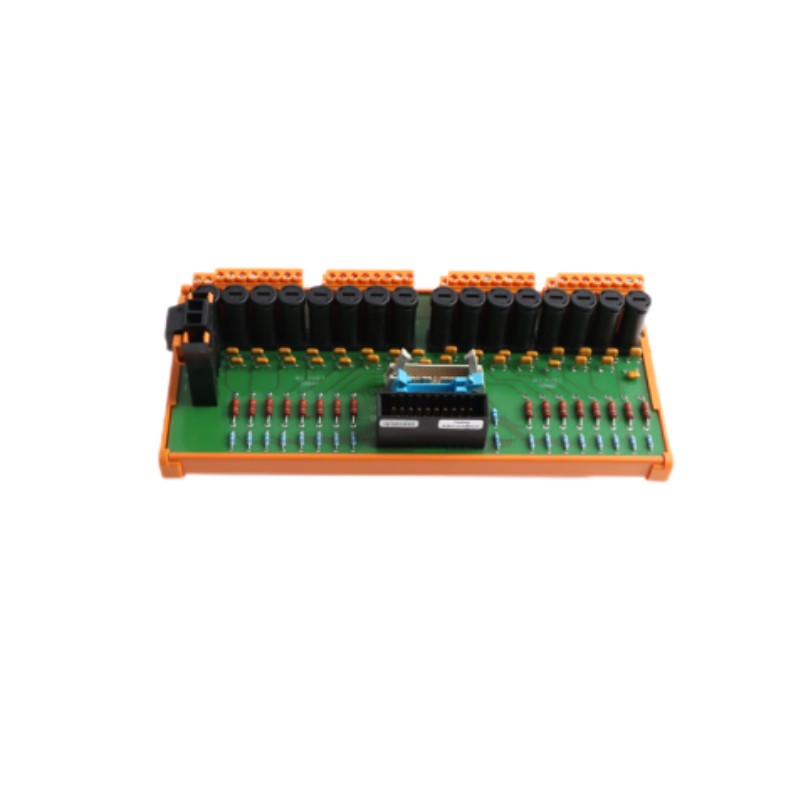

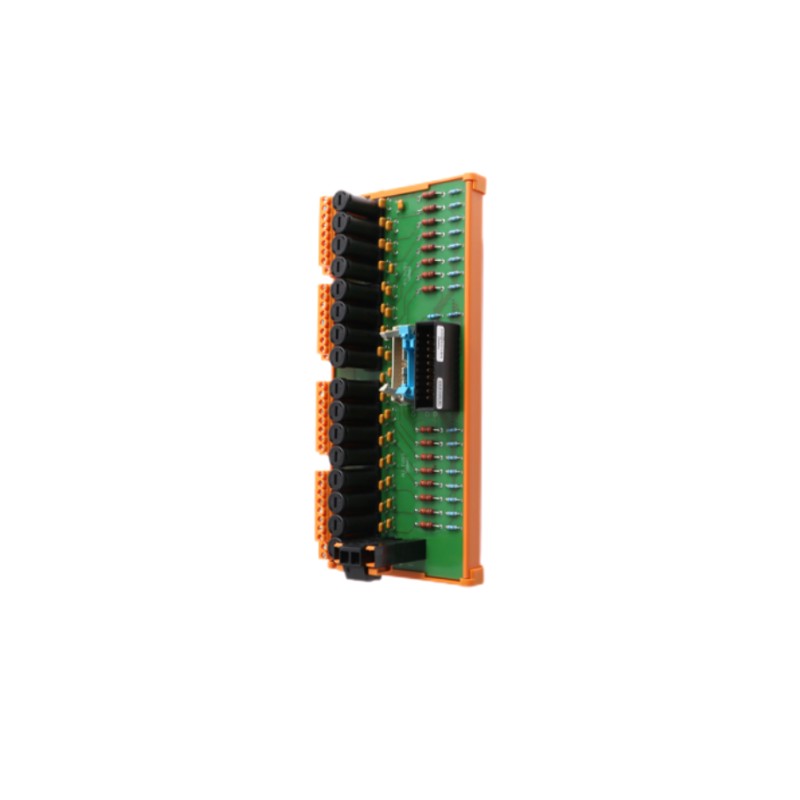

The Honeywell FC-TSGASH-1624 is a gas analyzer and transmitter module used in Honeywell Experion and related control systems. It provides accurate measurement, monitoring, and signaling of gas concentrations in industrial processes, ensuring process safety and regulatory compliance.
General Information
Part Number: FC-TSGASH-1624
Manufacturer: Honeywell
Series: FC (Field/Control Transmitter Modules)
Type: Gas Analyzer / Transmitter Module
Mounting: Rack or panel installation within control cabinets
Technology: Gas detection, signal processing, alarm output, digital communication
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input: Powered from system backplane or local supply
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LEDs for power, alarm, and fault status
Communication & Interface
Field Interface: Accepts input from gas sensors or analyzers
Bus Coupler Role: Integrates gas measurement signals into the control system
Diagnostics: Sensor status monitoring, fault detection, and calibration alerts
Operator Interface: LED indicators for module and alarm status
Reset Features: Supports soft and hardware reset via system controller
I/O & Channels
Analog Inputs: Channels for gas sensor signals
Digital Outputs: Alarm signaling for high/low thresholds
External Load Support: Can drive external warning devices within rated limits
Environmental
Operating Temperature: 0 to 50 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment
Dimensions & Weight
Dimensions (L × W × H): 210 × 150 × 45 mm
Weight: ~ 3.0 kg
