Overview

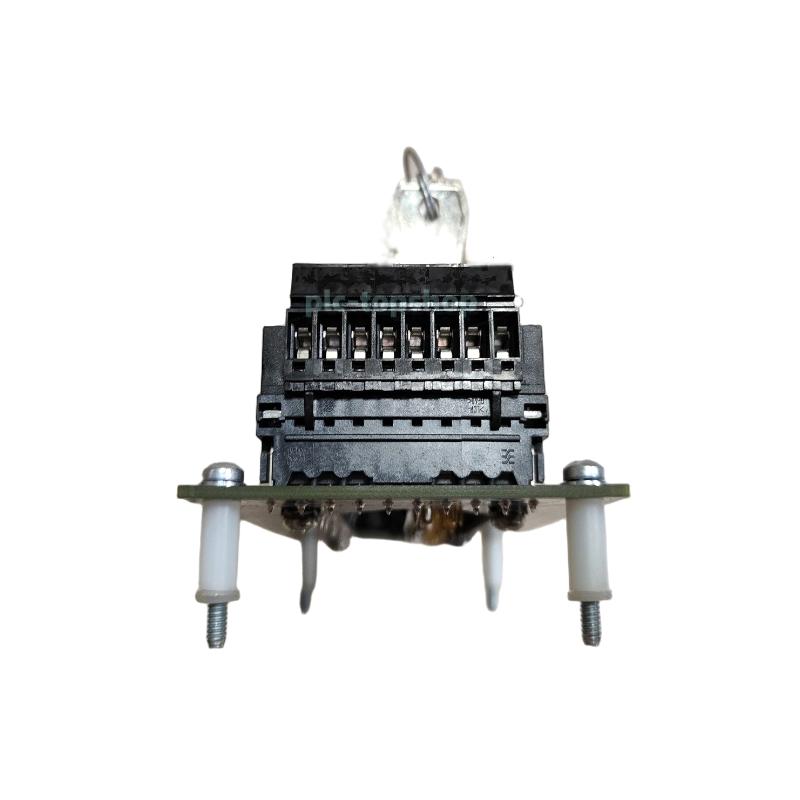

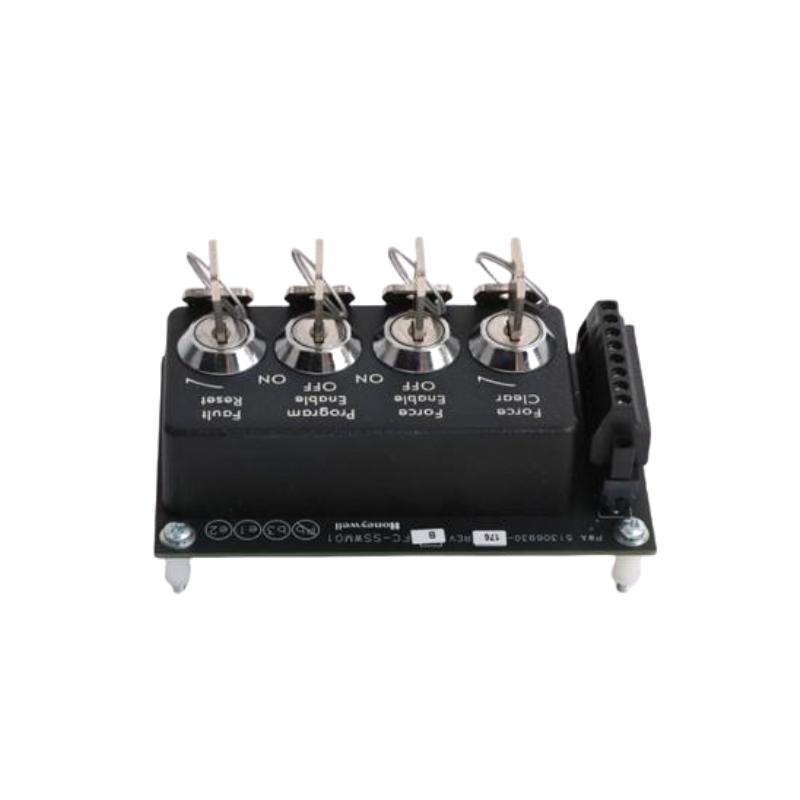

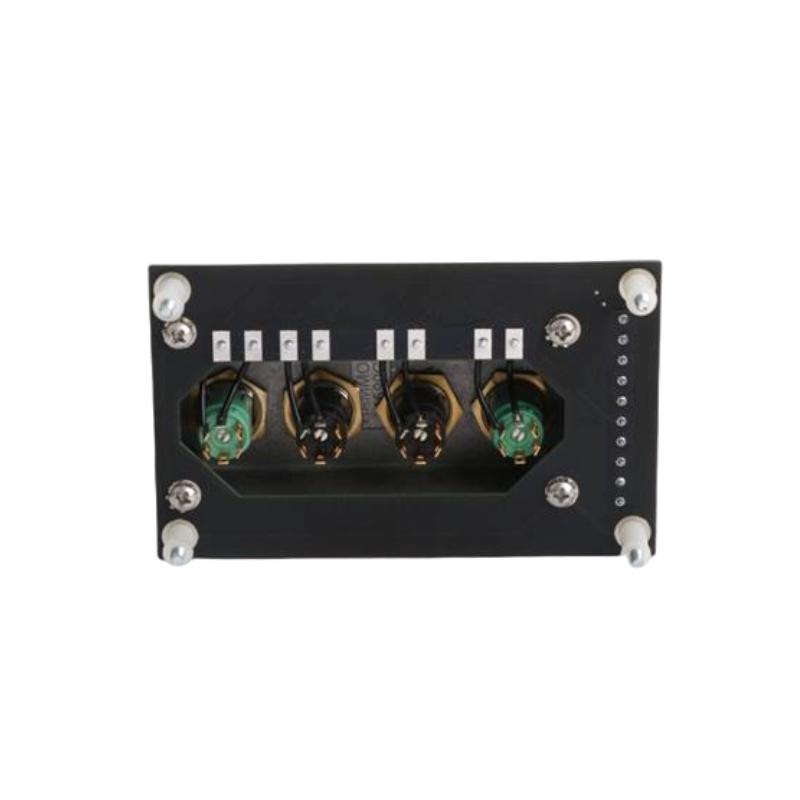

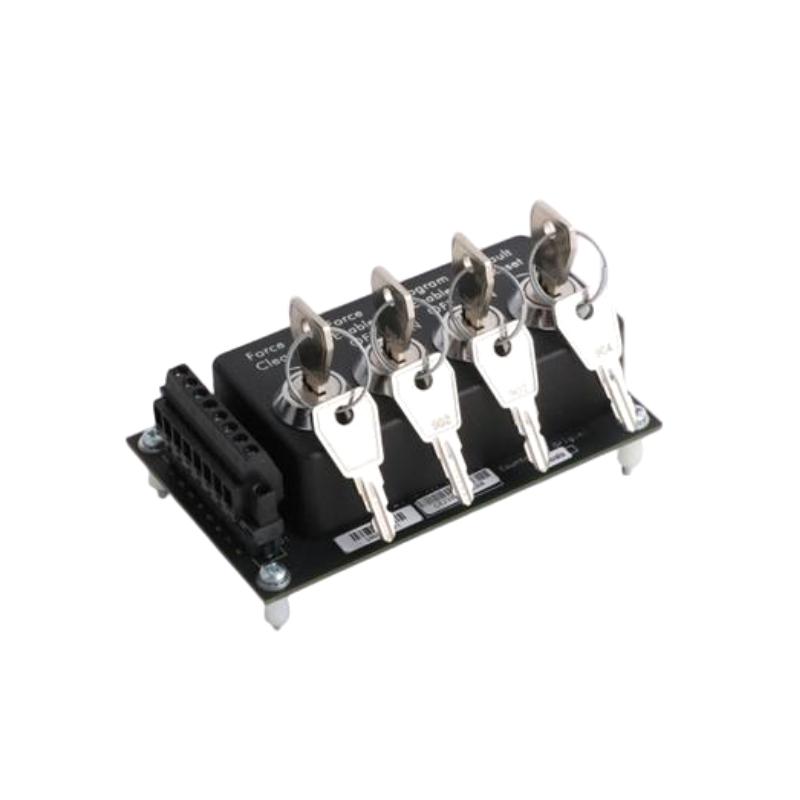

The Honeywell FC-SSWM01 is a solid-state warning module designed for use in Honeywell Experion and related control systems. It provides reliable visual and/or audible warning outputs based on system alarms or process conditions, ensuring operators are promptly alerted to critical events.
General Information
Part Number: FC-SSWM01
Manufacturer: Honeywell
Series: FC (Field/Control Alarm Modules)
Type: Solid State Warning Module
Mounting: Rack or panel installation within control cabinets
Technology: Solid-state output, alarm signaling, and system integration
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 5 W
Input: Powered from system backplane or local power source
Protection: Overvoltage and reverse-polarity protection
Indicators: LEDs for power, alarm, and fault status
Communication & Interface
Field Interface: Connects to alarm logic or control system outputs
Bus Coupler Role: Interfaces warning signals to the control network
Diagnostics: Alarm verification, fault detection, and status reporting
Operator Interface: LED indicators for module and alarm status
Reset Features: Supports soft and hardware reset via system controller
I/O & Channels
Output Channels: Multiple solid-state outputs for alarms
External Load Support: Can drive external warning devices within rated limits
Environmental
Operating Temperature: 0 to 55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment
Dimensions & Weight
Dimensions (L × W × H): 210 × 150 × 45 mm
Weight: ~ 2.3 kg
