Overview

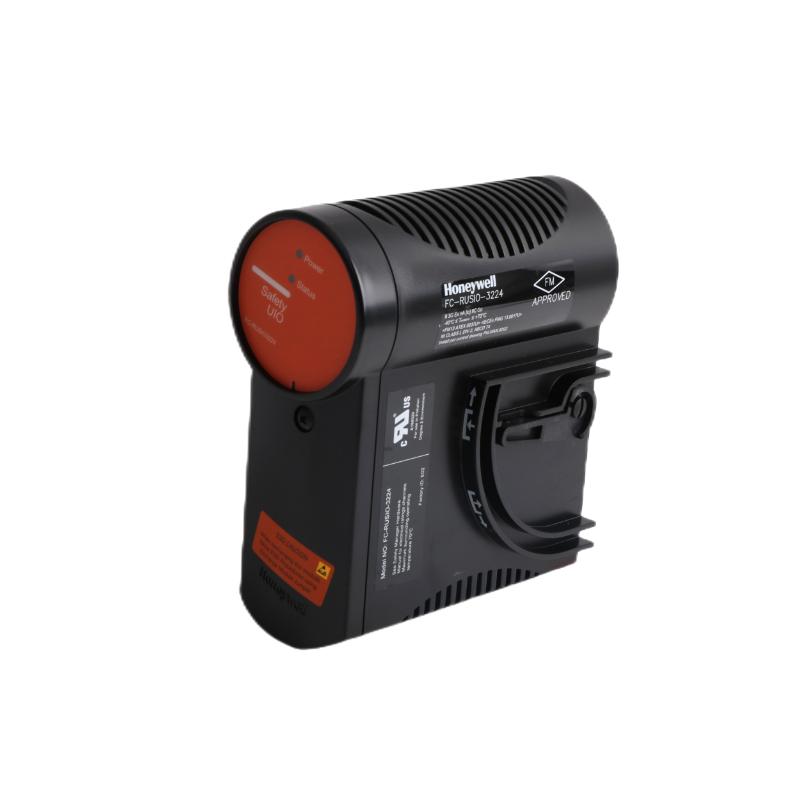

The Honeywell FC-RUSIO-334 is a remote I/O module designed for use in Honeywell Experion and related control systems. It facilitates distributed control by providing multiple input and output channels for process signals, enabling reliable monitoring and control of field devices.
General Information
Part Number: FC-RUSIO-334
Manufacturer: Honeywell
Series: FC (Field/Control I/O Modules)
Type: Remote Unit I/O Module
Mounting: Rack or chassis installation within control panels
Technology: Digital and analog signal processing, distributed control integration
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input: Powered from system backplane or local power source
Protection: Surge, short-circuit, and reverse-polarity protection
Indicators: LEDs for power, communication, and fault status
Communication & Interface
Field Interface: Supports analog and digital I/O signals from field devices
Bus Coupler Role: Connects remote I/O to main control system
Diagnostics: Fault detection, channel monitoring, and status reporting
Operator Interface: LED indicators for module status and communication
Reset Features: Supports soft and hardware reset via system controller
I/O & Channels
Analog Inputs: Multiple channels for process measurement
Analog Outputs: Configurable channels for control signals
Digital Inputs/Outputs: Supports discrete signal monitoring and control
External Load Support: Can drive external devices within rated limits
Environmental
Operating Temperature: 0 to 55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment
Dimensions & Weight
Dimensions (L × W × H): 210 × 150 × 45 mm
Weight: ~ 2.8 kg
