Overview

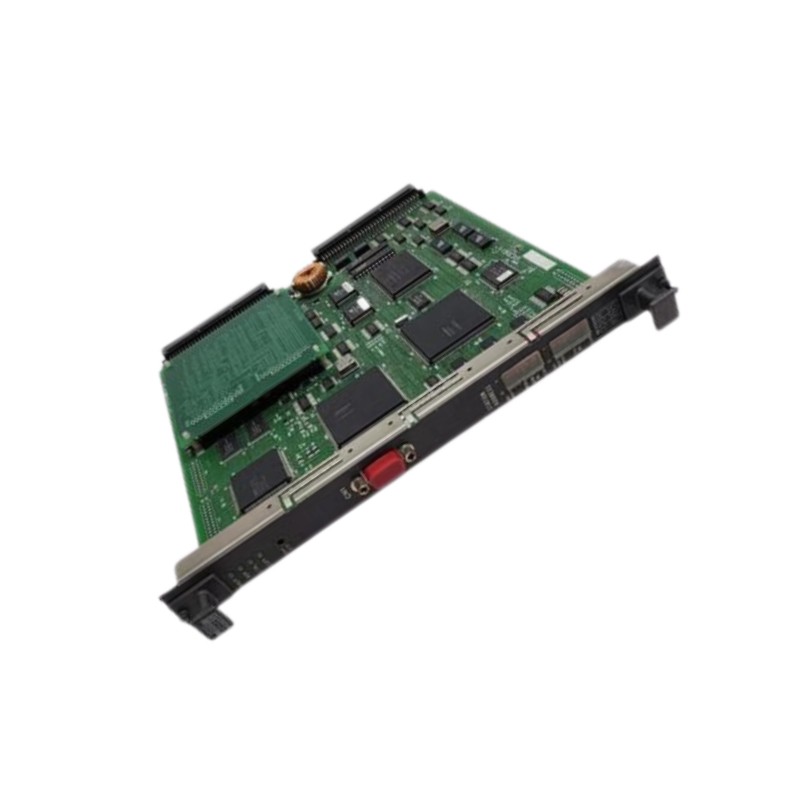

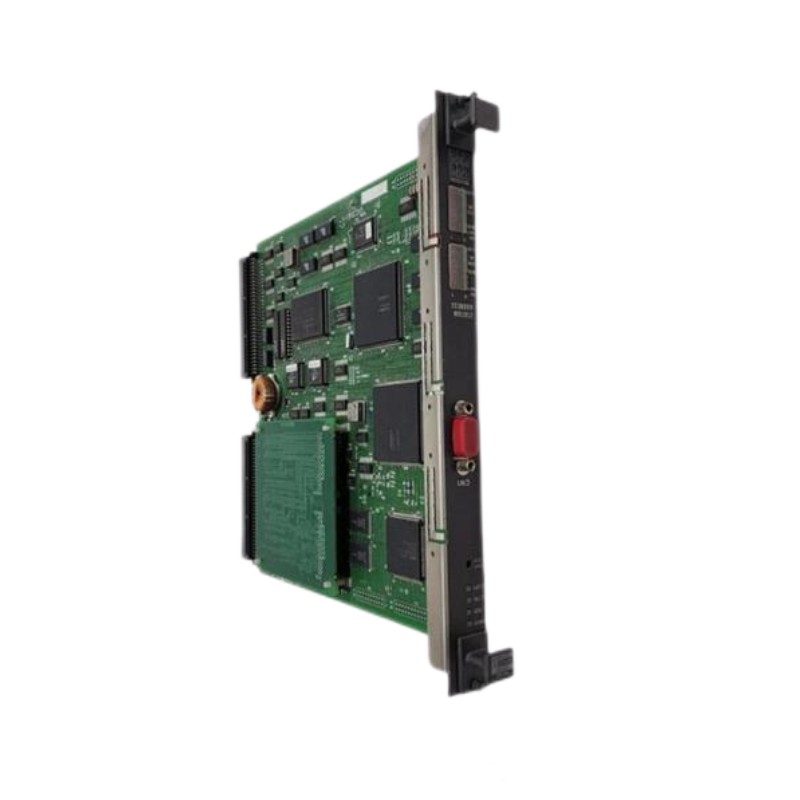

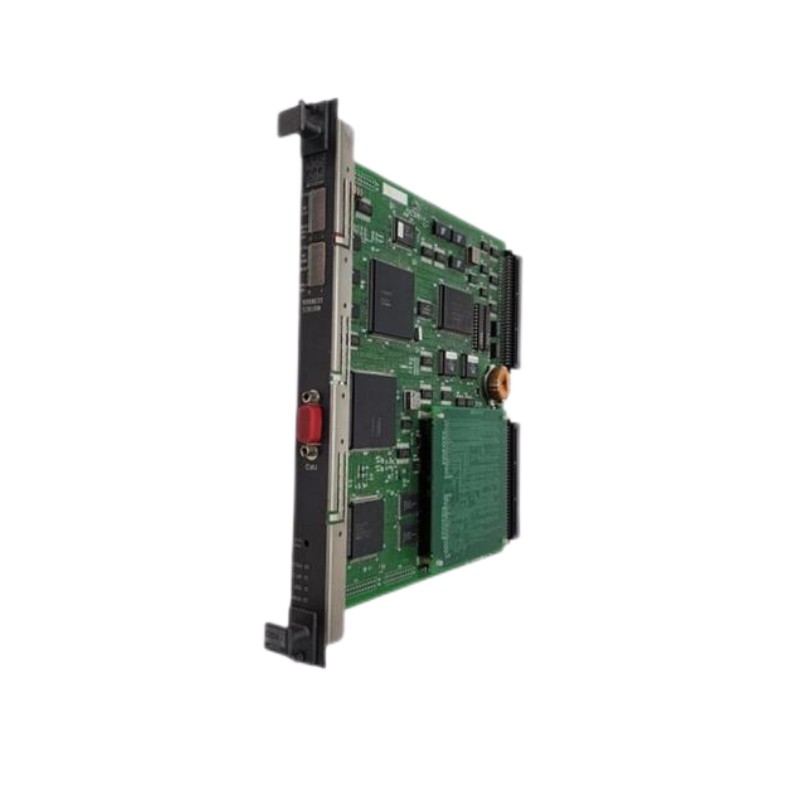

The Honeywell FC-MCAR-02 is a modular controller card used in Honeywell Field Control systems. It provides processing capabilities, communication interfaces, and logic execution for automation and process control applications.
General Information
Part Number: FC-MCAR-02
Manufacturer: Honeywell
Series: Field Control (FC Series)
Type: Controller Card / Modular Processor
Mounting: Installed into FC-series chassis or backplane
Technology: Digital processing, bus communication, diagnostic logic
Country of Origin: United States
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 12 W
Input Source: System backplane
Protection: Over-voltage and over-current protection
Indicators: LED indicators for power and status
Communication & Interface
Bus Type: Honeywell Field Control communication bus
Interface Role: Connects to backplane and communicates with I/O and peripheral modules
Diagnostics: Status monitoring, fault detection, and communication health
Operator Interface: LED indicators
Reset Features: Supports soft reset via controller
I/O & Channels
Relay Channels: None
External Load Support: Not applicable
Function: Provides processing and control logic for system operations
Environmental
Operating Temperature: 0 to +55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet or chassis installation required)
Dimensions & Weight
Dimensions (L × W × H): 130 × 60 × 35 mm
Weight: ~ 0.35 kg
