Overview

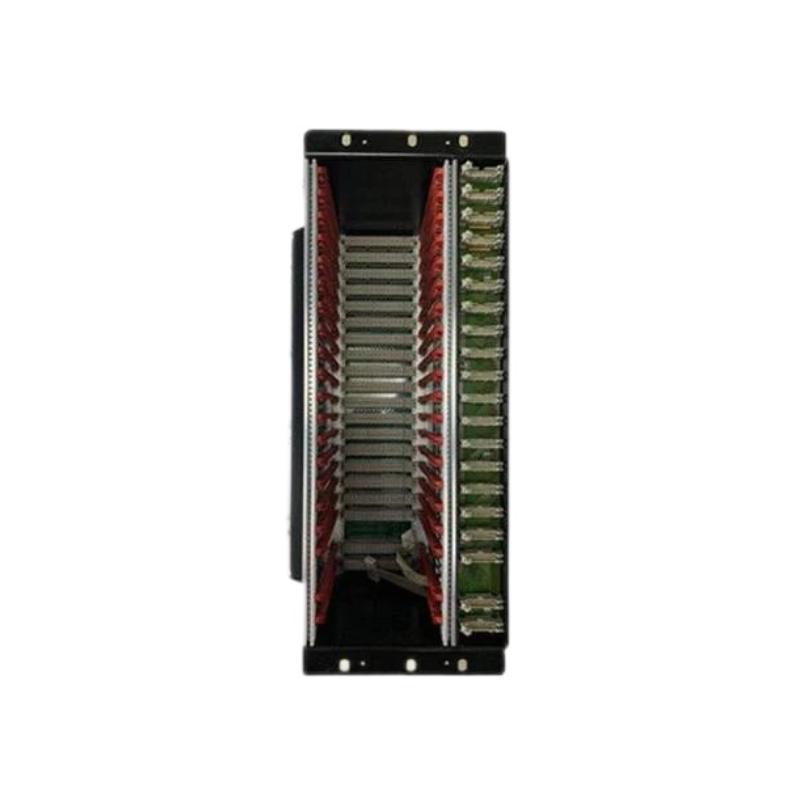

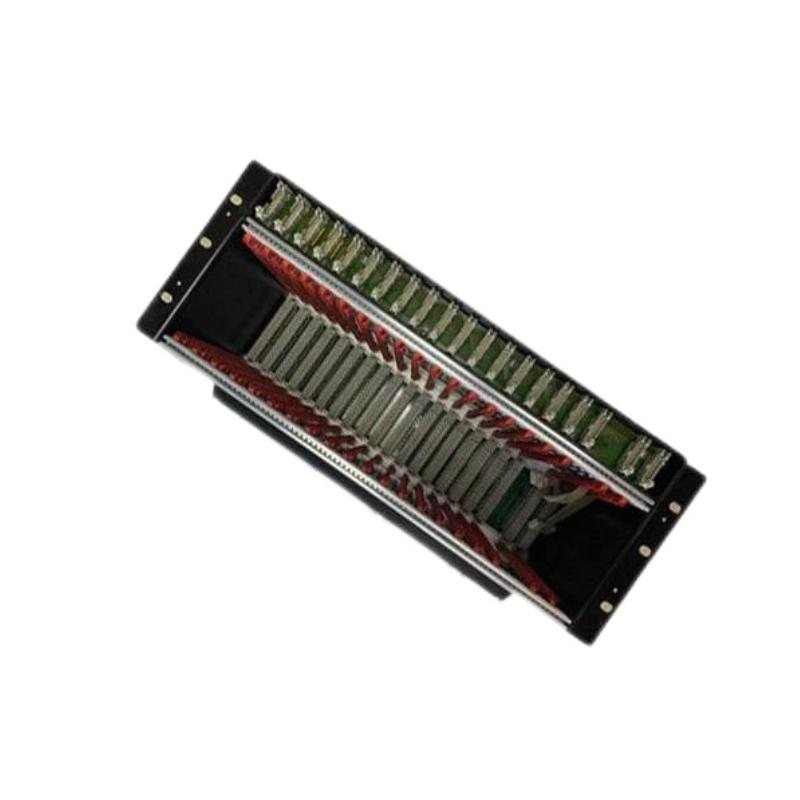

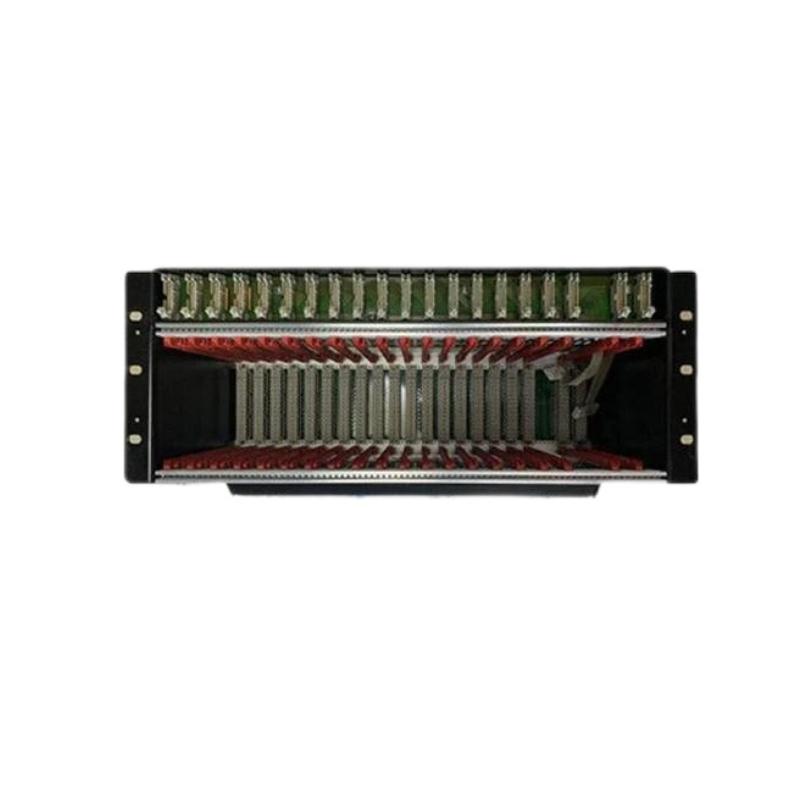

The Honeywell FC-IOCHAS-0001S is an I/O chassis module used in Honeywell Field Control systems. It provides a structural and electrical housing for multiple I/O modules, ensuring secure mounting, backplane connectivity, and reliable communication between controllers and I/O devices.
General Information
Part Number: FC-IOCHAS-0001S
Manufacturer: Honeywell
Series: Field Control (FC Series)
Type: I/O Chassis Module
Mounting: Panel or cabinet installation
Technology: Integrated backplane with slot connectors for FC-series I/O modules
Country of Origin: United States
Power Specifications
Supply Voltage: Distributed via system backplane
Power Distribution: Internal rails provide power to installed modules
Protection: Overcurrent and short-circuit protection
Indicators: None (passive chassis module)
Communication & Interface
Backplane Interface: FC-series control bus
Supported Modules: Analog, digital, and communication I/O modules
Diagnostics: Module seating verification; system controller performs I/O diagnostics
Operator Interface: Not applicable
Reset Features: Dependent on installed controller or modules
I/O & Channels
Relay Channels: None
External Load Support: None
Function: Provides structural and electrical support for I/O modules
Environmental
Operating Temperature: 0 to +55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (requires cabinet or panel installation)
Dimensions & Weight
Dimensions (L × W × H): 260 × 210 × 70 mm
Weight: ~ 1.2 kg
