Overview

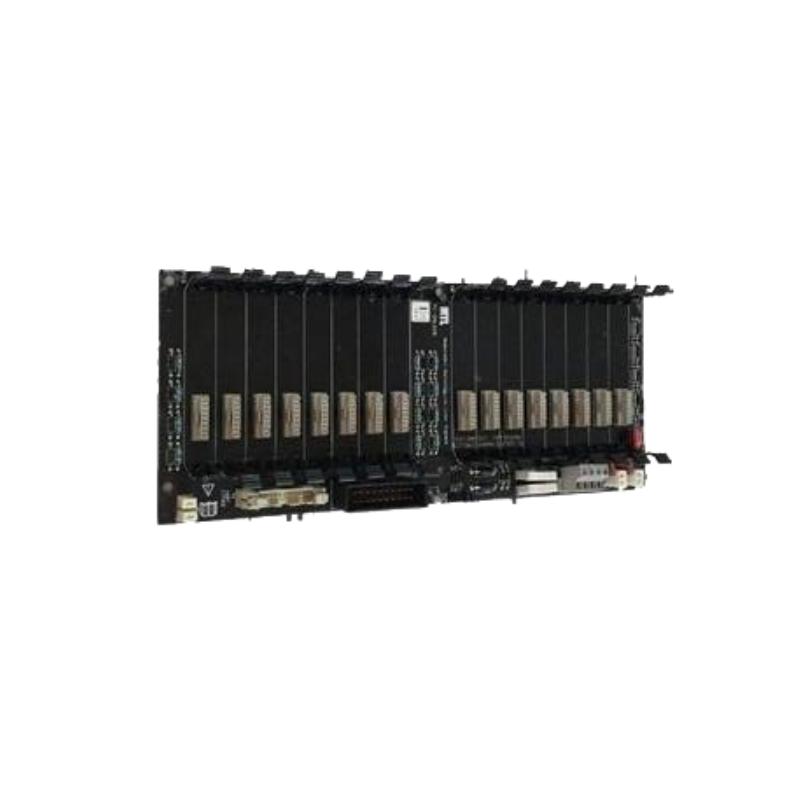

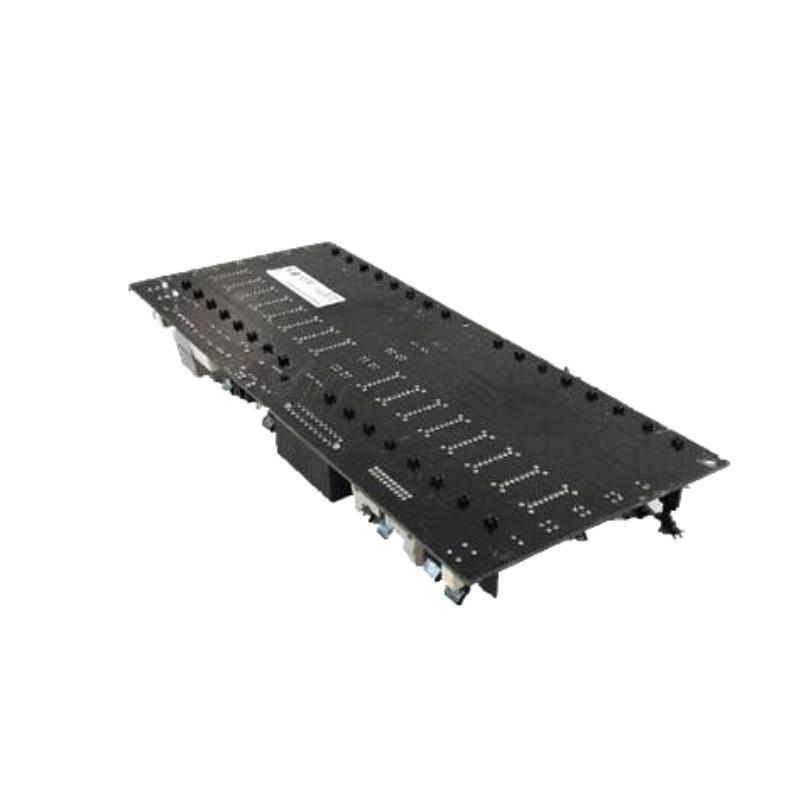

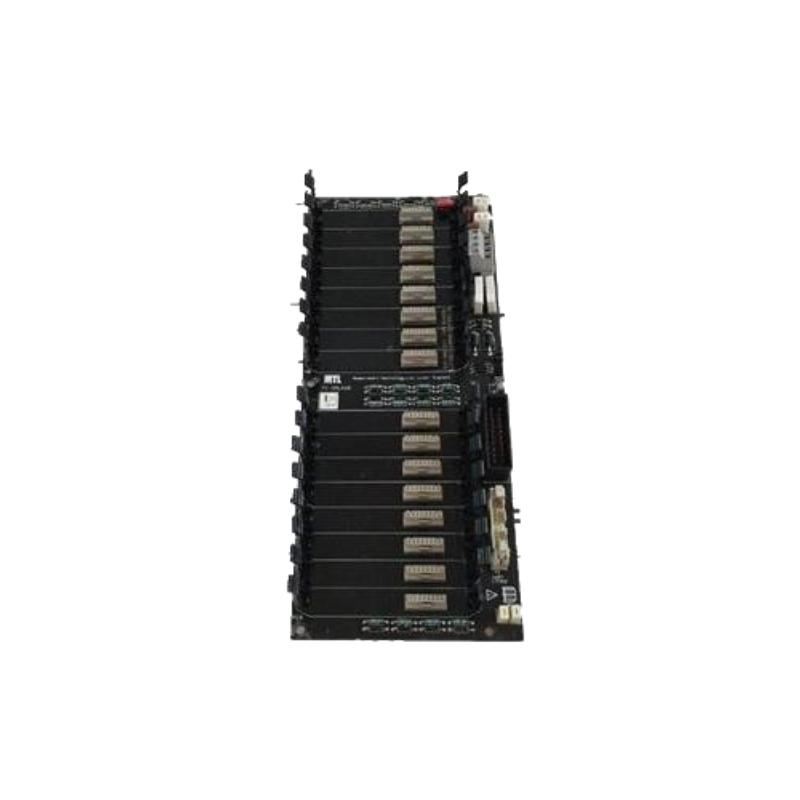

The Honeywell FC-GMLA16 is an analog I/O module used in Honeywell Field Control systems. It provides reliable acquisition and output of analog signals, offering signal conditioning, isolation, and communication with the system controller for precise process control.
General Information
Part Number: FC-GMLA16
Manufacturer: Honeywell
Series: Field Control (FC Series)
Type: Analog I/O Module
Mounting: Panel or DIN-rail installation
Technology: Signal conditioning, channel isolation, diagnostic monitoring
Country of Origin: United States
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 8 W
Input Source: System power bus
Protection: Over-voltage, over-current, and isolation protection
Indicators: LED indicators for power and channel status
Communication & Interface
Bus Type: Honeywell Field Control communication bus
Interface Role: Connects analog I/O channels to system controller
Diagnostics: Channel monitoring and fault detection
Operator Interface: LED indicators for power and signal status
Reset Features: Soft reset via controller
I/O & Channels
Channels: 16 analog input/output channels
Signal Support: Standard industrial analog signals
External Load Support: Not applicable
Function: Converts field analog signals to controller-readable data and vice versa
Environmental
Operating Temperature: 0 to +55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet installation recommended)
Dimensions & Weight
Dimensions (L × W × H): 130 × 60 × 35 mm
Weight: ~ 0.35 kg
