Overview

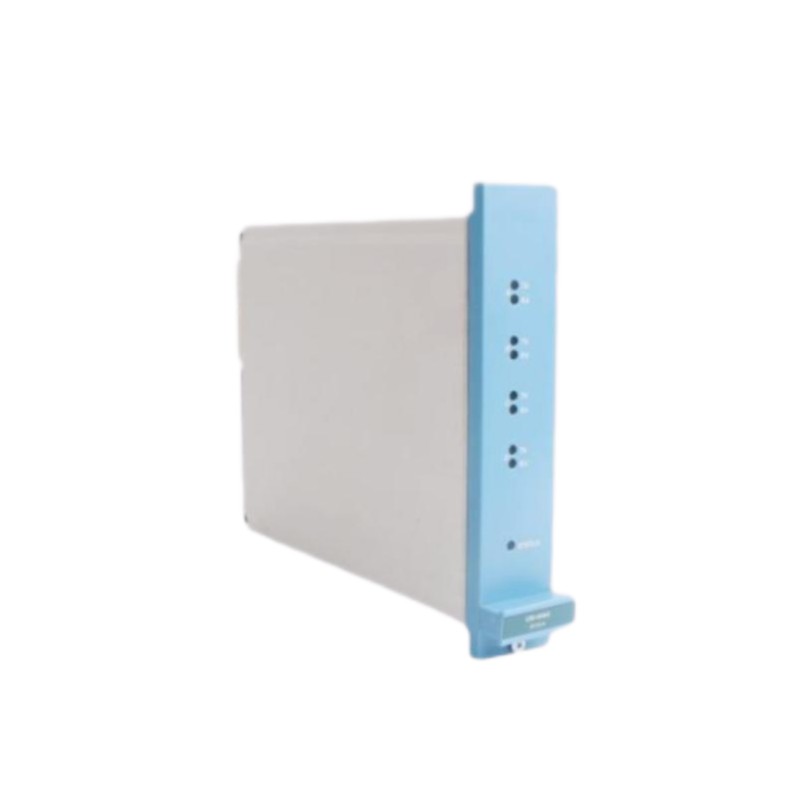

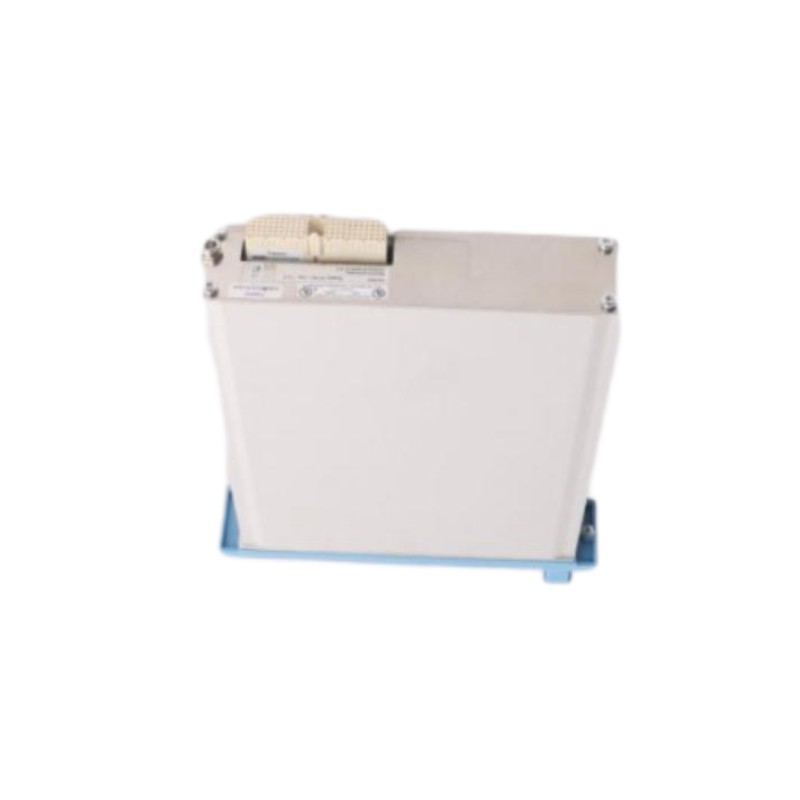

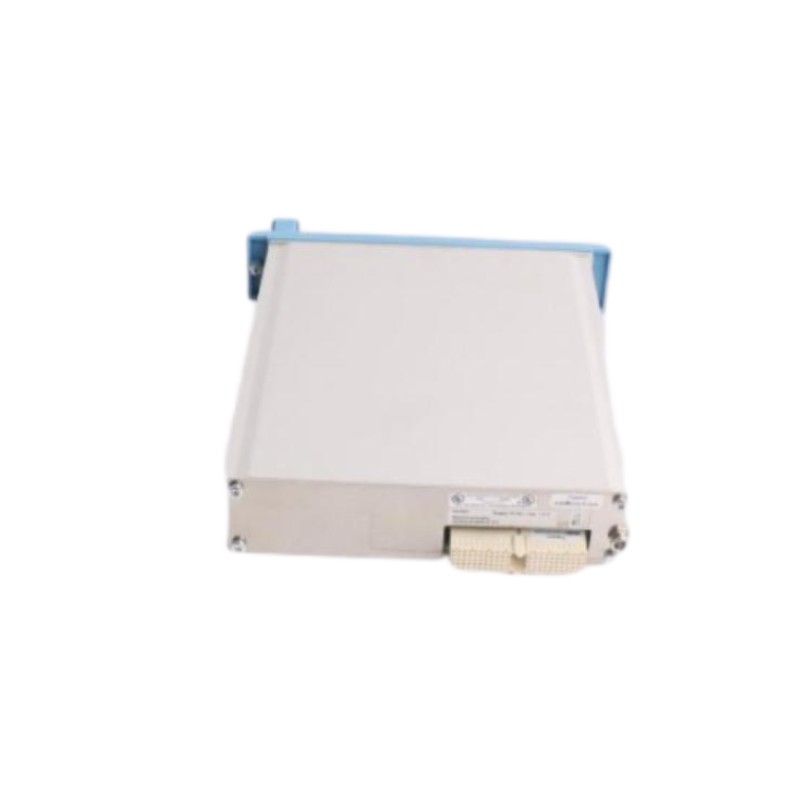

The Honeywell FC-FE-USI-0002 is a universal signal interface module used in Honeywell Field Control systems. It enables integration of various analog and digital signals into the control system, providing signal conditioning, isolation, and reliable data transmission.
General Information
Part Number: FC-FE-USI-0002
Manufacturer: Honeywell
Series: Field Control (FC Series)
Type: Universal Signal Interface Module
Mounting: Panel or DIN-rail installation
Technology: Signal conditioning, isolation, and monitoring for multiple signal types
Country of Origin: United States
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 7 W
Input Source: System power bus
Protection: Overcurrent, over-voltage, and isolation protection
Indicators: LED indicators for power and signal status
Communication & Interface
Bus Type: Honeywell Field Control communication bus
Interface Role: Connects analog and digital signals to the control system
Diagnostics: Signal fault detection and channel monitoring
Operator Interface: LED indicators for module and channel status
Reset Features: Soft reset via controller
I/O & Channels
Channels: Multiple analog and digital input/output channels
External Load Support: Not applicable
Function: Converts and transmits various signals to the control system
Environmental
Operating Temperature: 0 to +55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet or panel installation required)
Dimensions & Weight
Dimensions (L × W × H): 130 × 60 × 35 mm
Weight: ~ 0.3 kg
