Overview

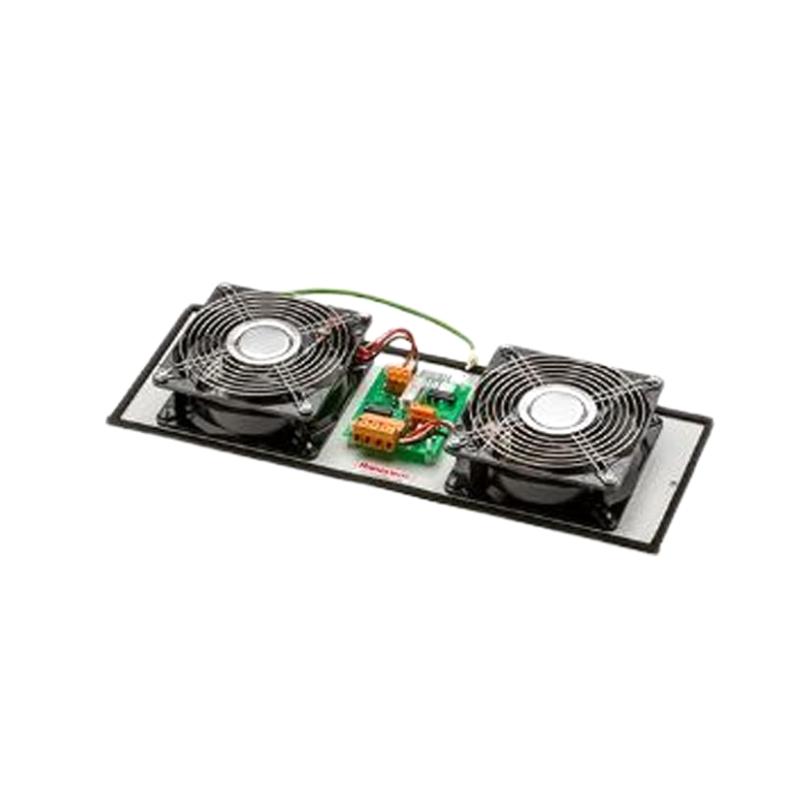

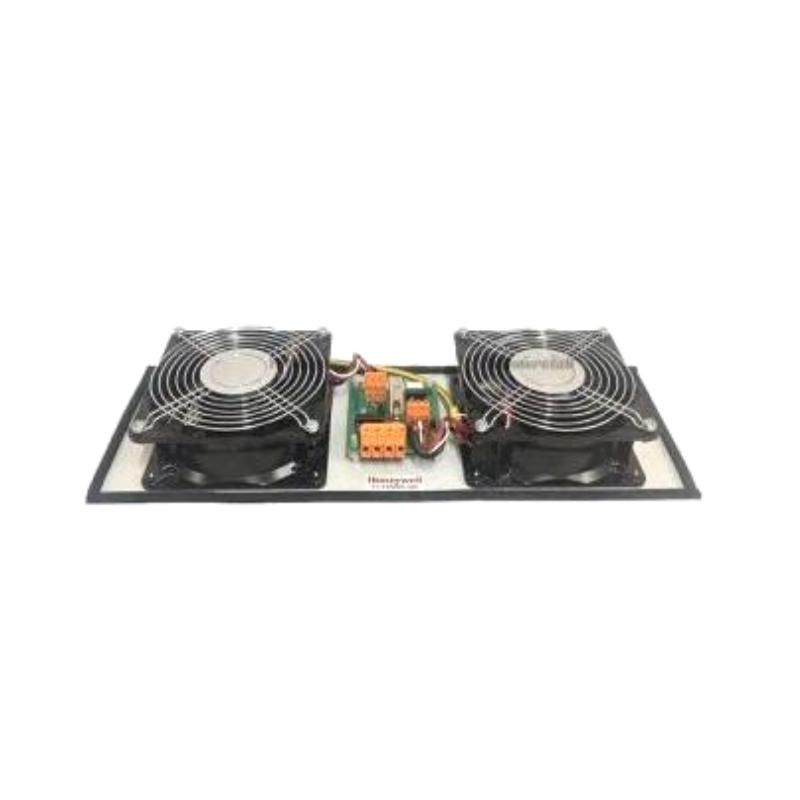

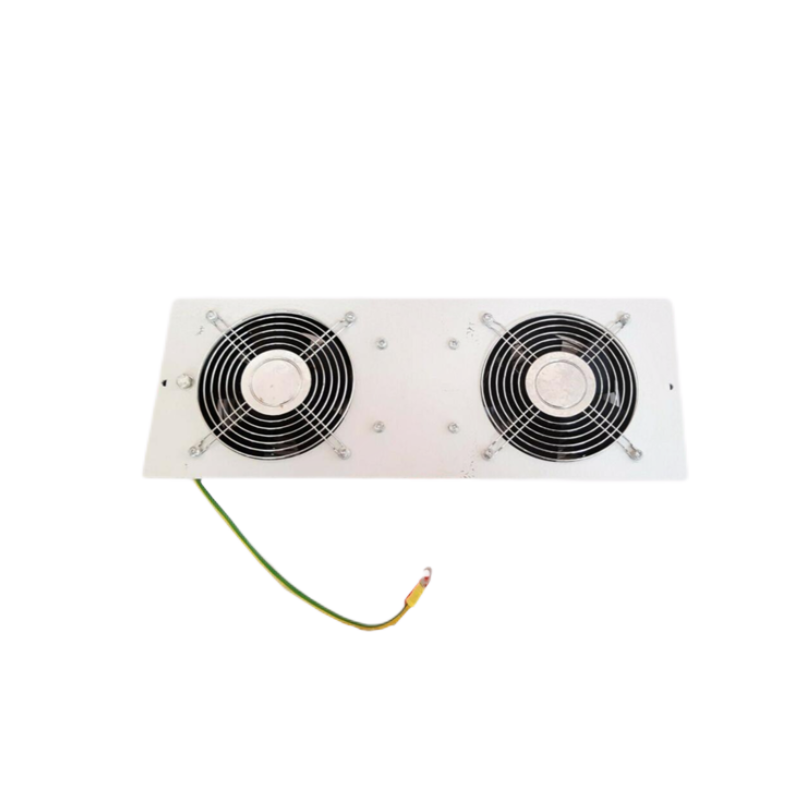

The Honeywell FC-FANWR-24R is a cooling fan module designed for Honeywell Field Control systems. It provides efficient airflow within control cabinets and chassis, ensuring stable temperature control for sensitive electronic modules and enhancing system reliability.
General Information
Part Number: FC-FANWR-24R
Manufacturer: Honeywell
Series: Field Control (FC Series)
Type: Cooling Fan Module
Mounting: Cabinet or panel installation
Technology: 24 V DC fan with built-in speed regulation and thermal protection
Country of Origin: United States
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 6 W
Input Source: System power bus
Protection: Overcurrent and thermal protection
Indicators: None
Communication & Interface
Bus Type: None (passive module)
Interface Role: Provides cooling to installed modules
Diagnostics: Monitored indirectly via system thermal sensors
Operator Interface: Not applicable
Reset Features: Not applicable
I/O & Channels
Relay Channels: None
External Load Support: Not applicable
Function: Ensures stable airflow and thermal management within FC system cabinets
Environmental
Operating Temperature: 0 to +55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (cabinet installation required)
Dimensions & Weight
Dimensions (L × W × H): 100 × 100 × 25 mm
Weight: ~ 0.15 kg
