Overview

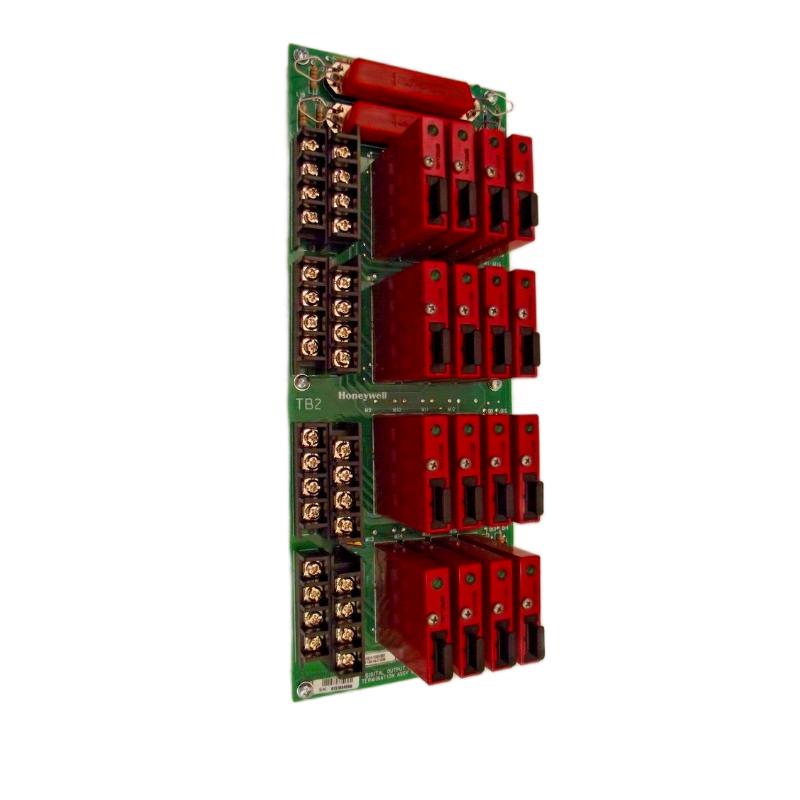

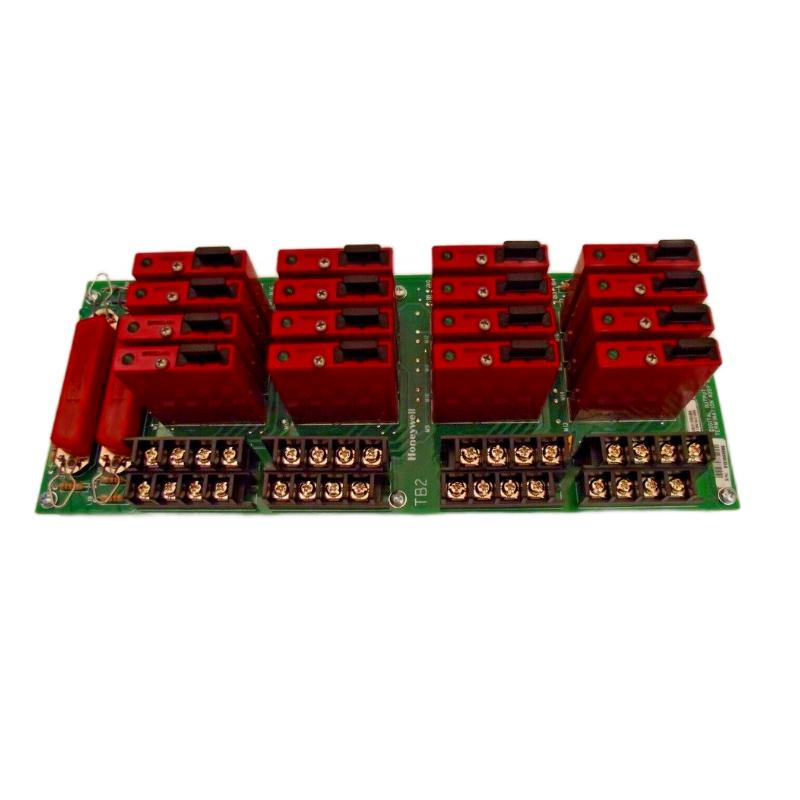

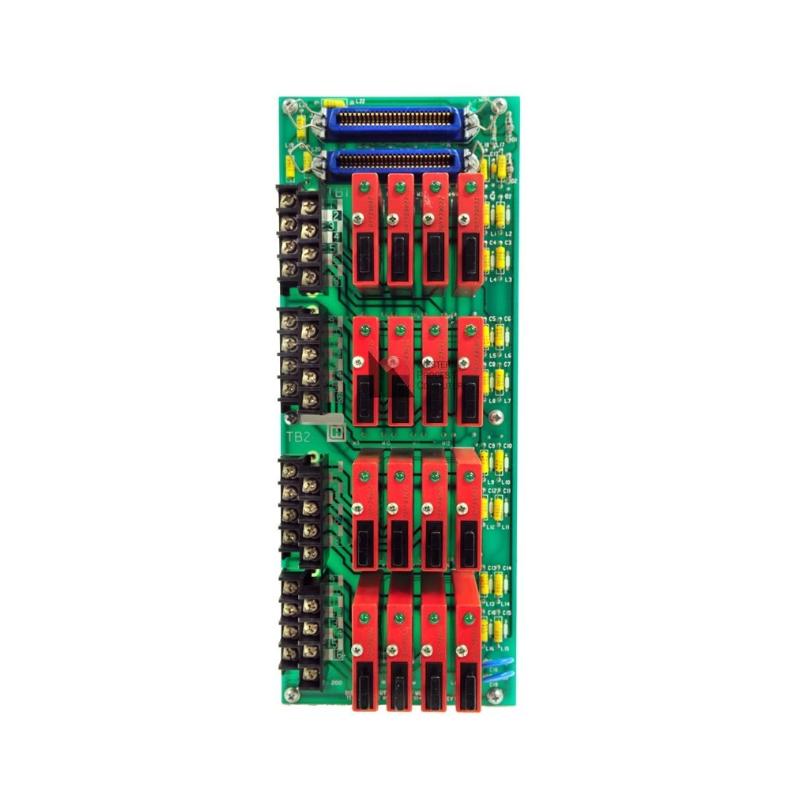

The Honeywell MC-TDOD54 is a digital output module designed for use in Honeywell Experion and DCS control systems. It provides reliable switching of digital signals to field devices such as solenoids, alarms, and actuators, making it suitable for demanding industrial automation environments.
General Information
Part Number: 51309153-275
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Series: MC Series
Type: Digital Output Module
Mounting: Panel or DIN-rail mounted
Technology: Isolated digital output channels with diagnostic monitoring
Power Specifications
Supply Voltage: 3–30 V DC
Current Rating: Up to 0.5 A per channel
Power Consumption: Optimized for continuous operation
Protection: Surge and short-circuit protection
Indicators: LEDs for output channel status
Communication & Interface
Output Channels: 16 isolated digital outputs
Module Role: Switches signals from control system to field devices
Diagnostics: Built-in monitoring with LED indication
Configuration: Configured via the system controller or DCS
Reset Features: Supports soft reset through system software
Environmental
Operating Temperature: –40 to +70 °C
Humidity: 5% to 95% RH, non-condensing
Approvals: CE, TUV, UL508, CSA
Dimensions & Weight
Dimensions (L × W × H): 378 × 278 × 28 mm (approx.)
Weight: ~0.47 kg
