Overview

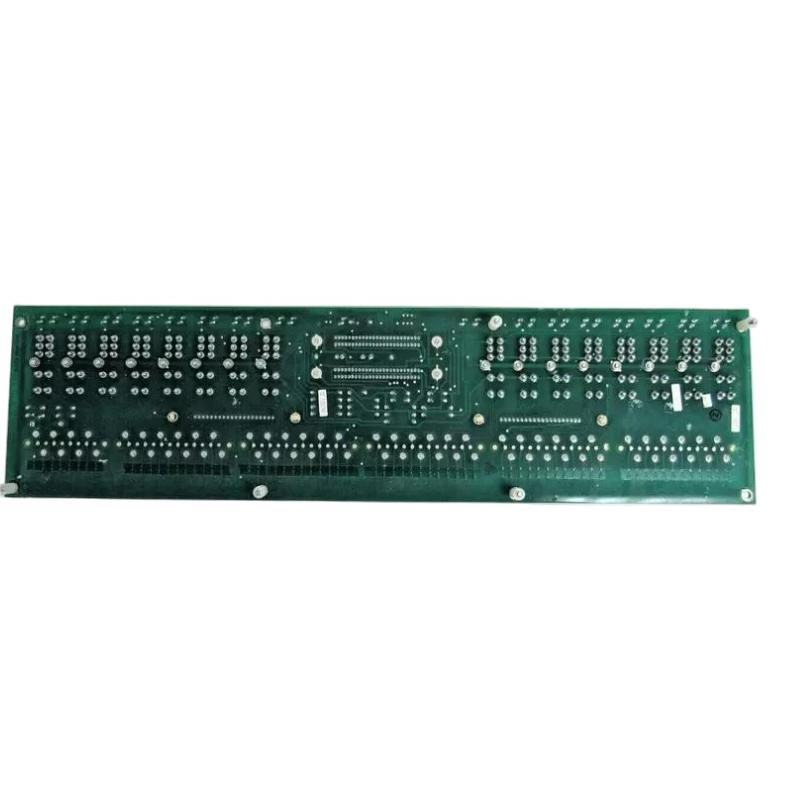

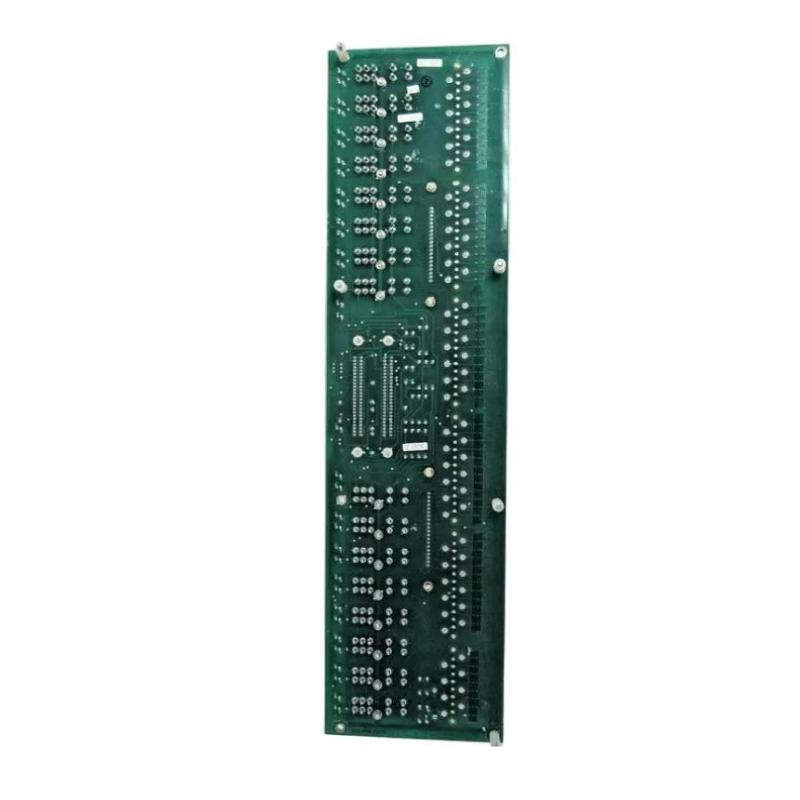

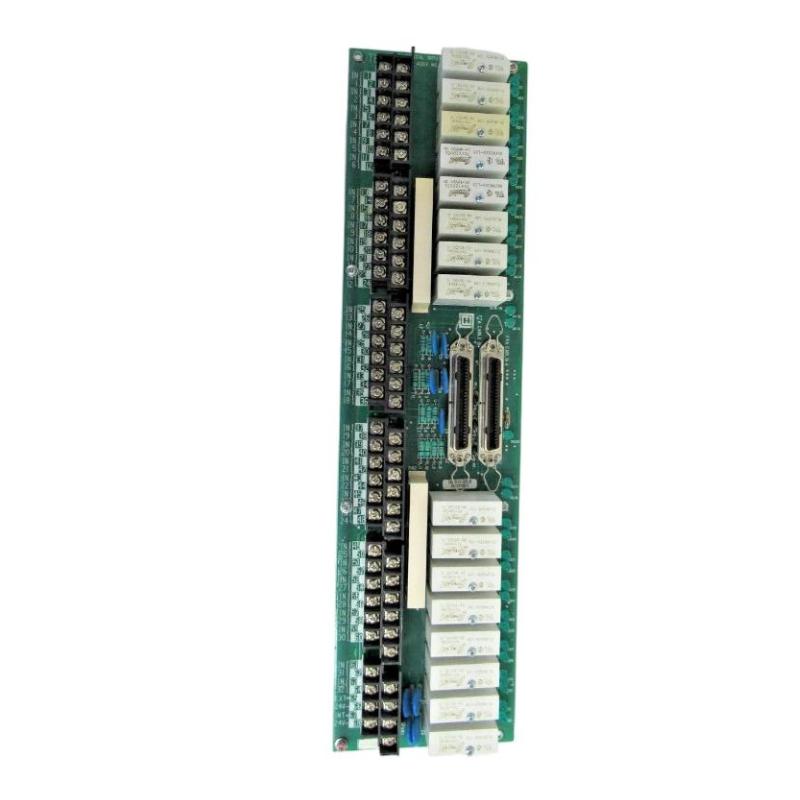

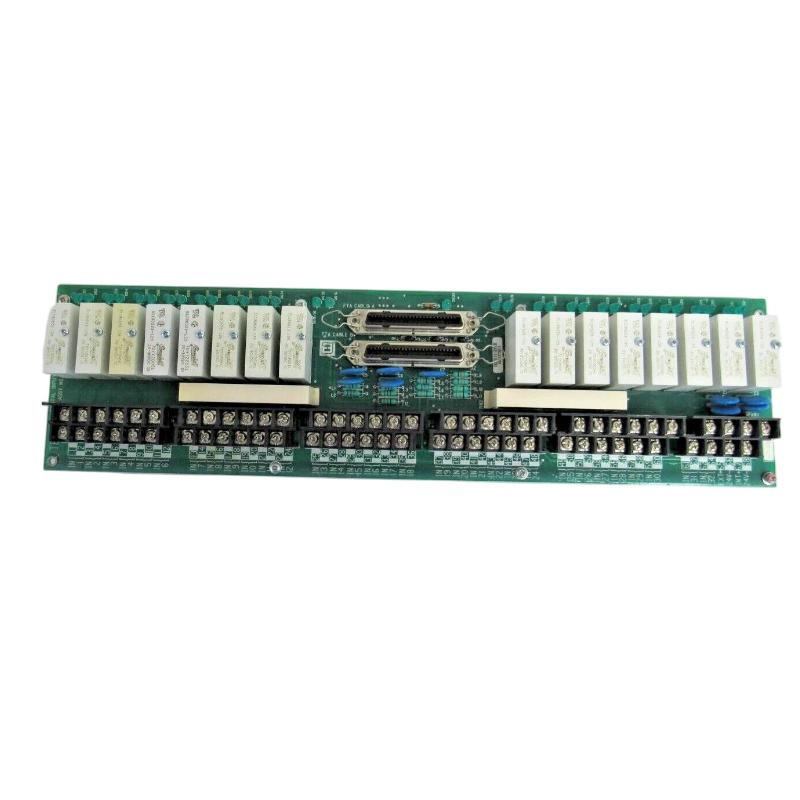

The Honeywell MC-TDID52 51304441-275 is a digital input module designed for use in Honeywell’s MasterLogic and Experion process control systems. It allows the system to receive and process discrete digital signals from field devices, enabling accurate monitoring and control of process states.
General Information
Part Number: 51304441-275
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Series: MC Series
Type: Digital Input Module
Mounting: Card or rack installation in system chassis
Technology: Signal isolation and processing for discrete inputs
Power Specifications
Supply Voltage: Powered via system backplane
Power Consumption: Low, designed for continuous operation
Input Source: Backplane power supply
Protection: Overvoltage and surge protection
Indicators: LEDs for power, channel status, and fault detection
Communication & Interface
Signal Interface: Discrete digital inputs from field devices
Module Role: Receives and conditions input signals for system processing
Diagnostics: Self-monitoring with status reporting
Operator Interface: Front-panel LEDs for channel and module health
Reset Features: Supports soft reset via system configuration software
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation in industrial cabinets
Dimensions & Weight
Dimensions (L × W × H): 200 × 120 × 35 mm (approx.)
Weight: ~0.35 kg
