Overview

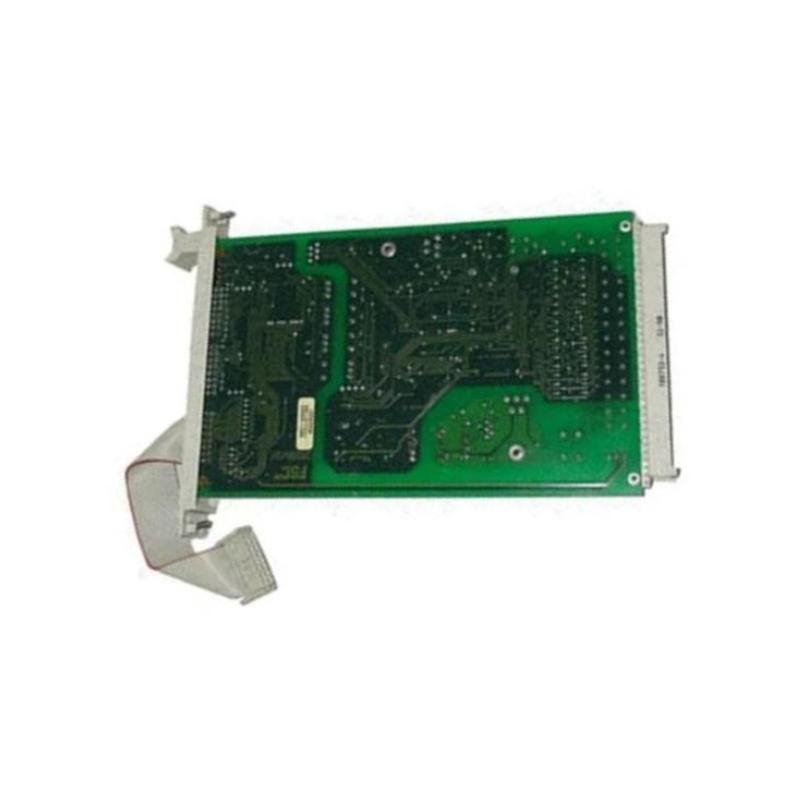

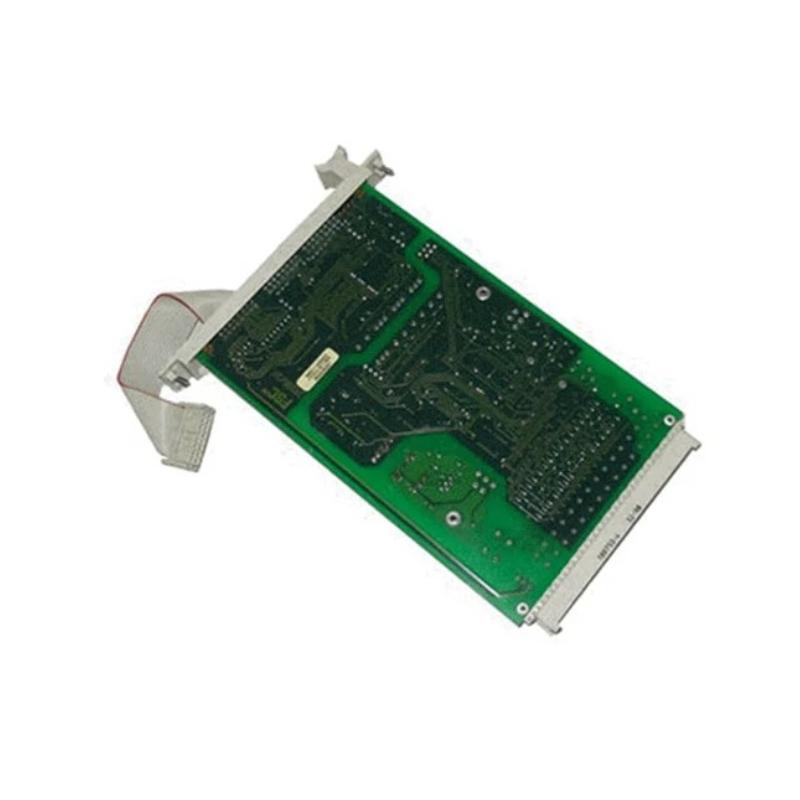

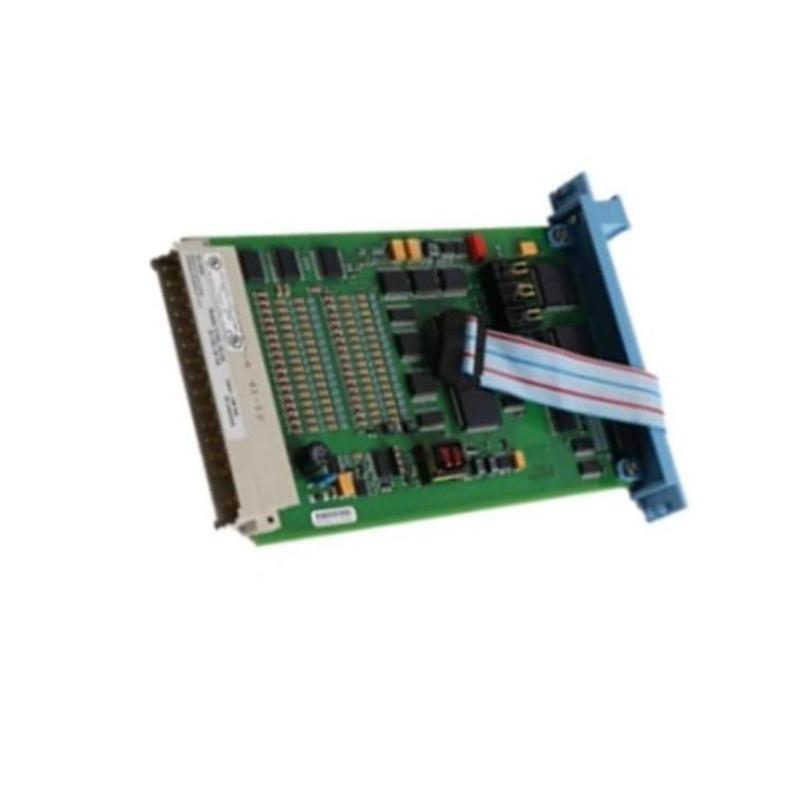

The Honeywell FC-SDI-1624M is a serial digital input module designed for use in Honeywell’s TDC 3000 and Experion process control systems. It allows reliable acquisition of discrete digital signals from field devices, supporting efficient monitoring and control of industrial processes.
General Information
Part Number: FC-SDI-1624M
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / United States
Series: FC Series
Type: Serial Digital Input Module
Mounting: Panel or rack installation within I/O chassis
Technology: Digital input processing with LED status indicators
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low, powered via system backplane
Protection: Surge and isolation protection
Indicators: LEDs for channel status and fault
Communication & Interface
Input Type: Discrete digital signals
Channels: 16–24 configurable input channels
Connection Type: Screw terminal field wiring interface
Diagnostics: Status and fault detection via LEDs
System Integration: Connects directly to Honeywell DCS input modules
Environmental
Operating Temperature: −10 to +60 °C
Humidity: 5–95% RH, non-condensing
Storage Temperature: −40 to +85 °C
Installation Environment: Indoor industrial control cabinets
Dimensions & Weight
Dimensions (W × H × D): 307 × 257 × 50 mm
Weight: ~ 2.0 kg
