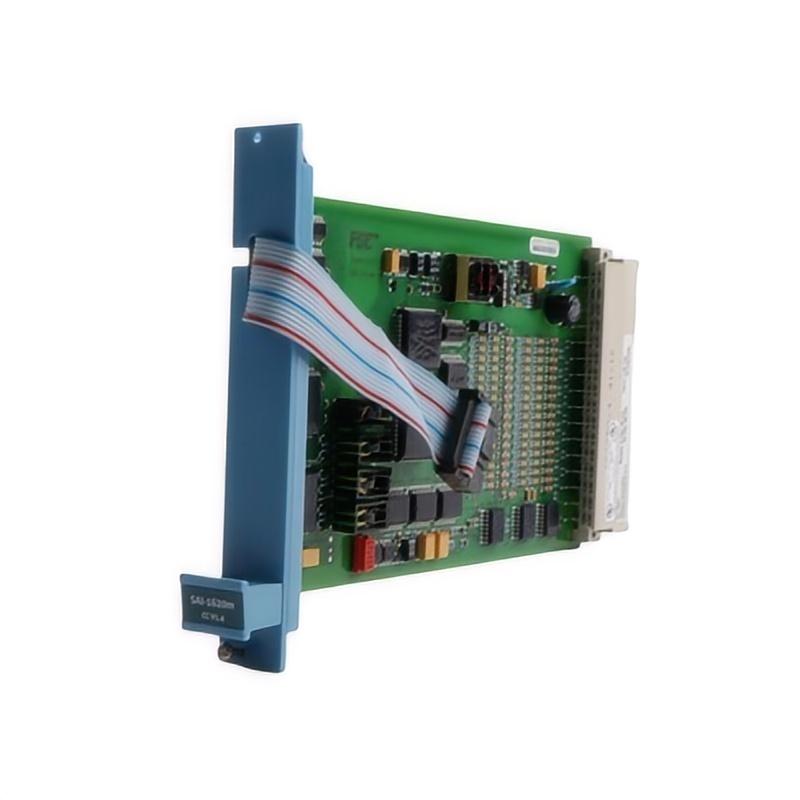

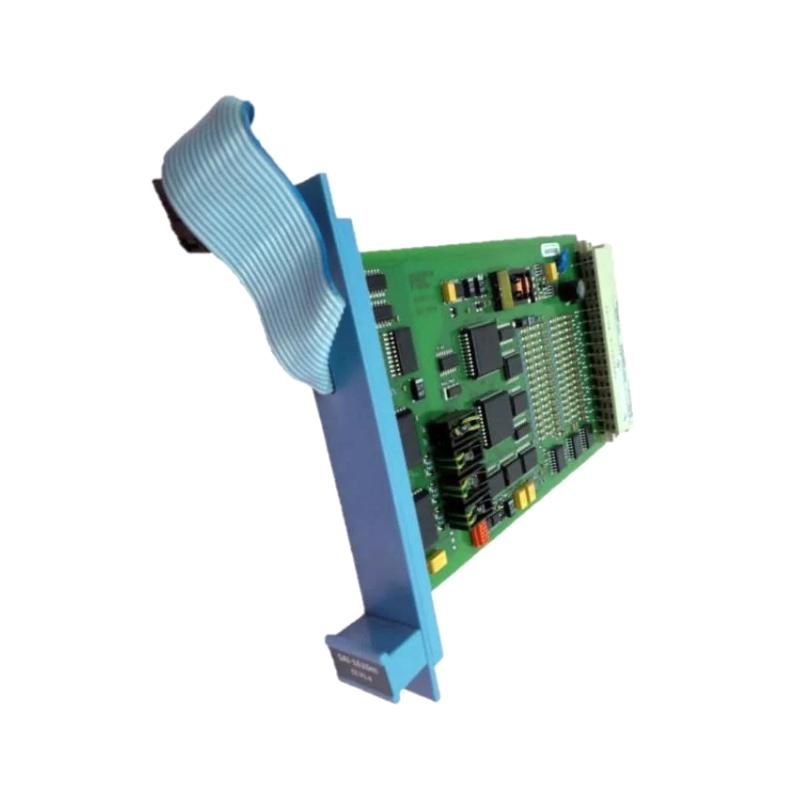

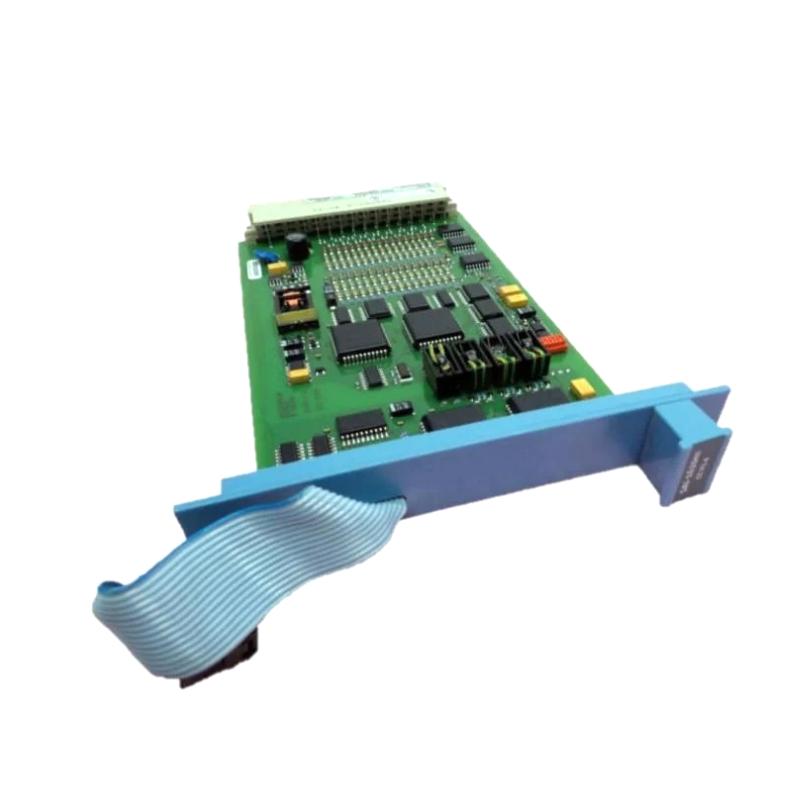

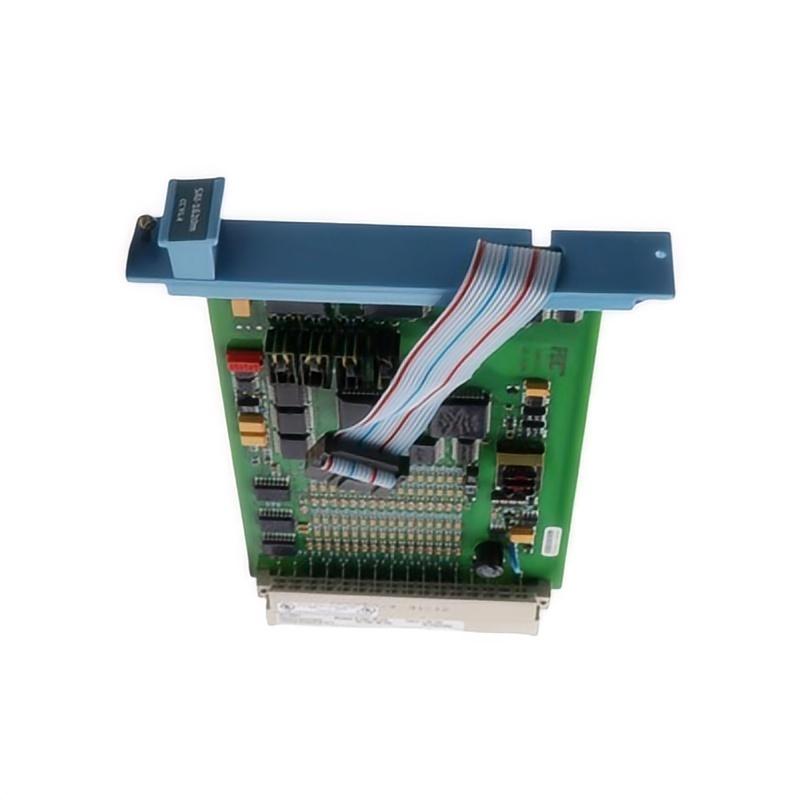

Honeywell FS‑SAI‑0410 | Safe Analog Input Module Shelf life 1 year

Overview
The Honeywell FS‑SAI‑0410 is a safety‑rated analog input module designed for use in Honeywell’s Safety Manager or FSC controller systems. It is engineered to acquire reliable analog signals from field sensors, provide input processing within safety instrumented systems (SIS), and deliver data with the integrity required for SIL‑certified applications.

General Information
Brand: Honeywell
Country of Origin: United States
Model Number: FS‑SAI‑0410
Series: Safety Manager I/O Modules
Product Type: Safe Analog Input Module
Application: Safety instrumented architectures, analog measurement interfaces, process control safety systems

Power Specifications
Supply Voltage: 24 V DC nominal (± tolerances as per system design)
Power Consumption: Typical module power draw (per module specification)
Protection: Overvoltage and short‑circuit protections integrated; designed for safe operational resilience

Communication & Interface
Input Channels: 4 analog input channels per module
Supported Signal Types: 0(4)‑20 mA current input, 0‑10 V voltage input (depending on variant)
Interface: Connects to system backplane I/O bus; field wiring connects via termination assembly in the rack
Diagnostics & Safety: Module supports full diagnostics, channel fault detection, and is approved for use in SIL‑rated safety loops

Environmental
Operating Temperature: ‑40 °C to +70 °C
Storage Temperature: ‑55 °C to +85 °C
Humidity: Up to 95 % RH, non‑condensing
Installation: Intended for industrial control cabinet environment with suitable ventilation
Protection Rating: Industrial enclosure usage; proper rack ventilation required

Dimensions & Weight
Dimensions (approximate): 170  × 70  × 58 mm
Weight: Approx. 0.5 kg

All products are original, new, and available for quick delivery.
