Overview

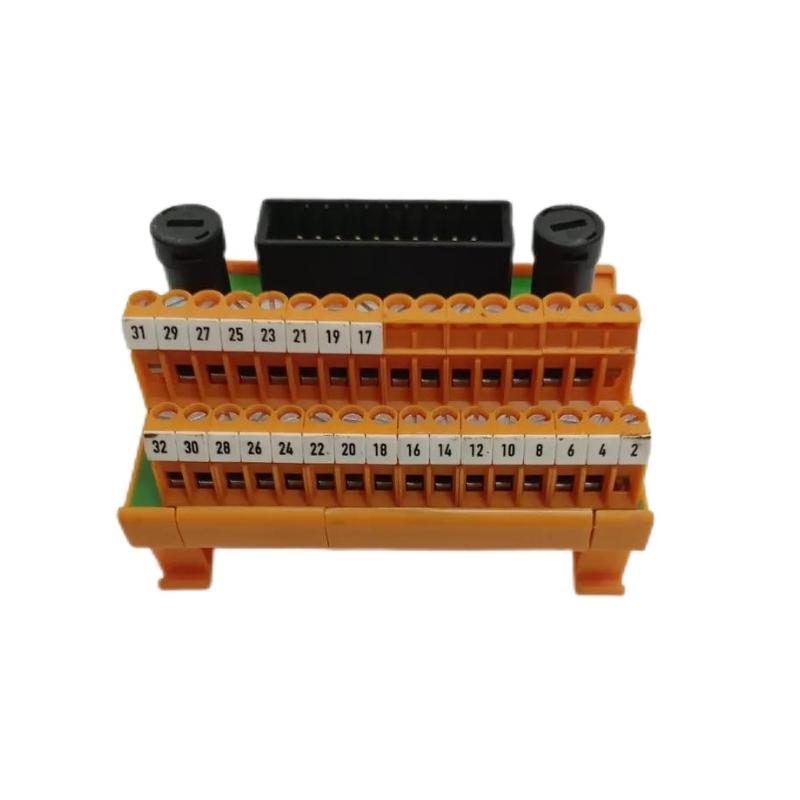

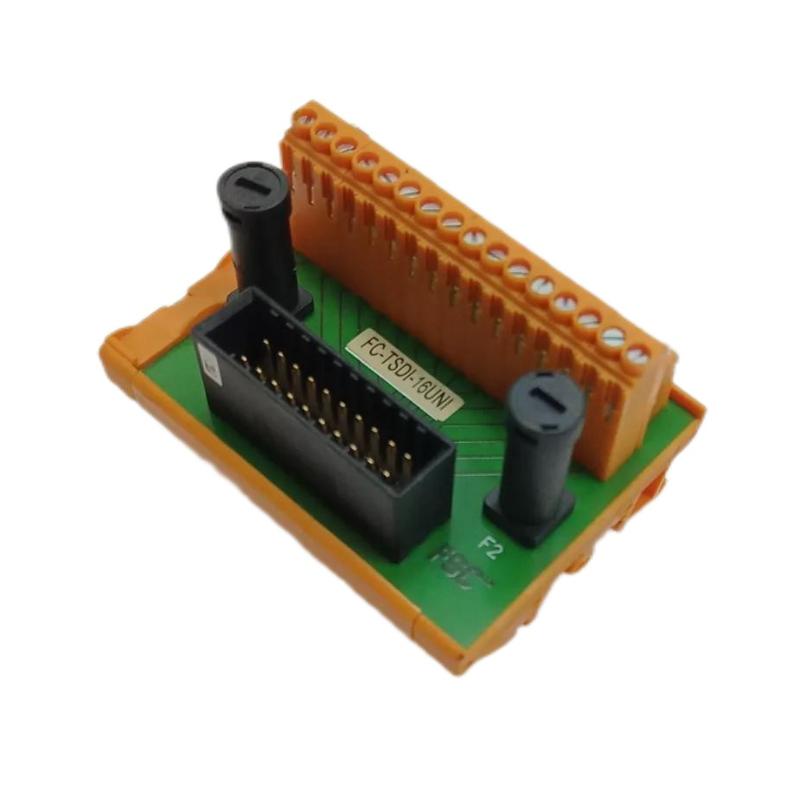

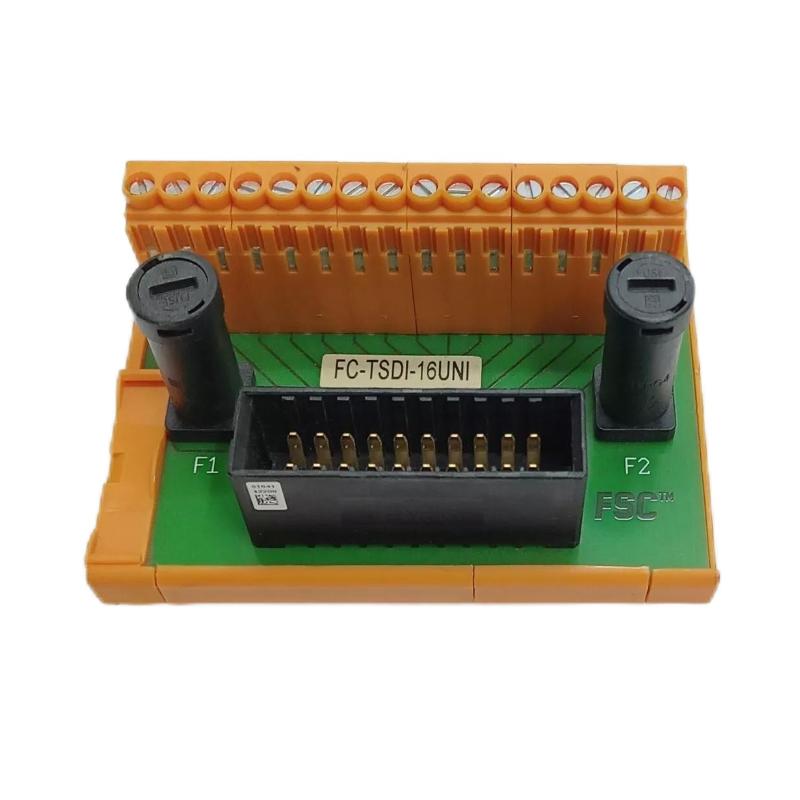

The Honeywell FC-TSDI-16UNI is a 16-channel universal digital input module designed for Honeywell’s Fail Safe Controller (FSC) and Safety Manager systems. It provides reliable signal interface between field devices and safety logic systems, supporting a variety of input types for versatile industrial applications.
General Information
Brand: Honeywell
Country of Origin: United States
Model Number: FC-TSDI-16UNI
Series: FSC / Safety Manager Series
Product Type: Universal Digital Input Module
Application: Safety instrumented systems, process monitoring, and industrial control input
Power Specifications
Supply Voltage: 24 V DC nominal
Operating Range: 18–30 V DC
Channel Current: Approx. 2 mA per input channel
Power Consumption: Low-power design for rack installation
Protection: Surge protection and short-circuit mitigation
Communication & Interface
Channels: 16 universal digital inputs
Supported Input Types: Dry contact, voltage, or universal signal inputs
Interface: Connects field devices to FSC or Safety Manager termination systems
Mounting: Rack or panel-mounted installation
Diagnostics: Supports status indication, fault detection, and system health monitoring
Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial control cabinets
Cooling: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 90 × 70 × 58 mm
Weight: 0.36 kg
