Overview

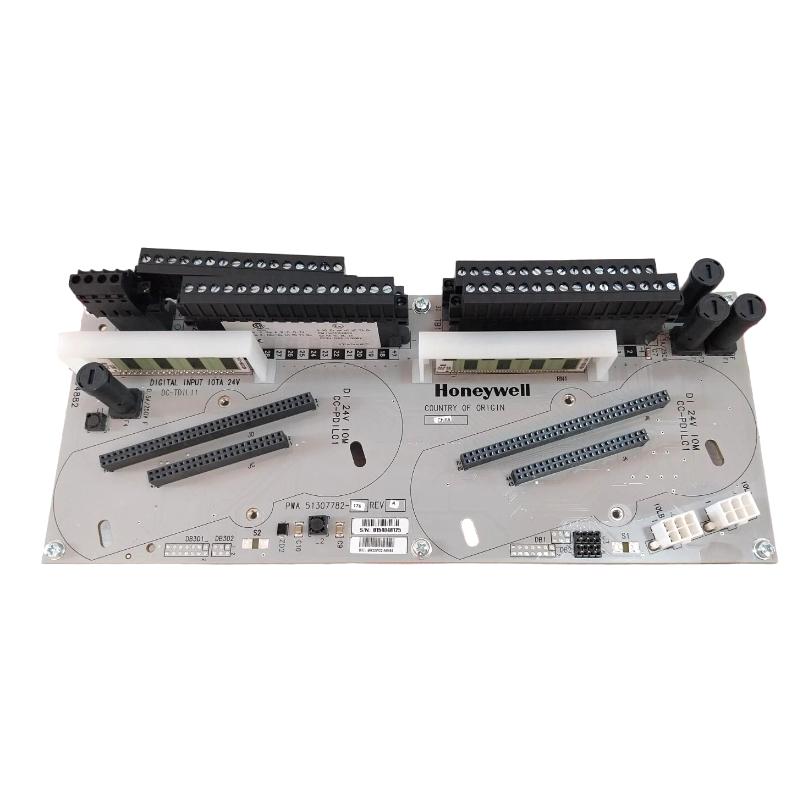

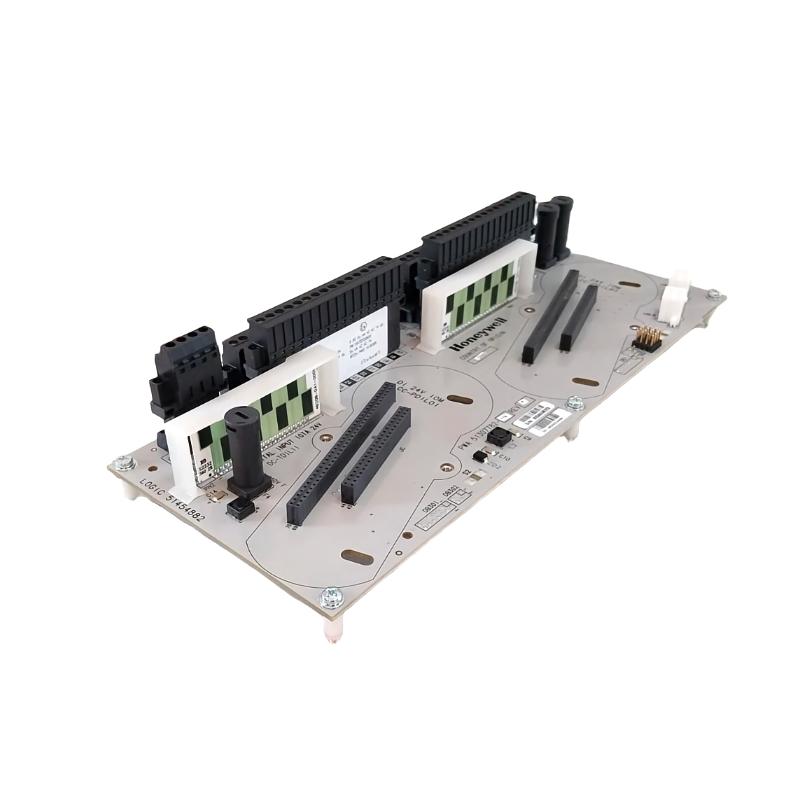

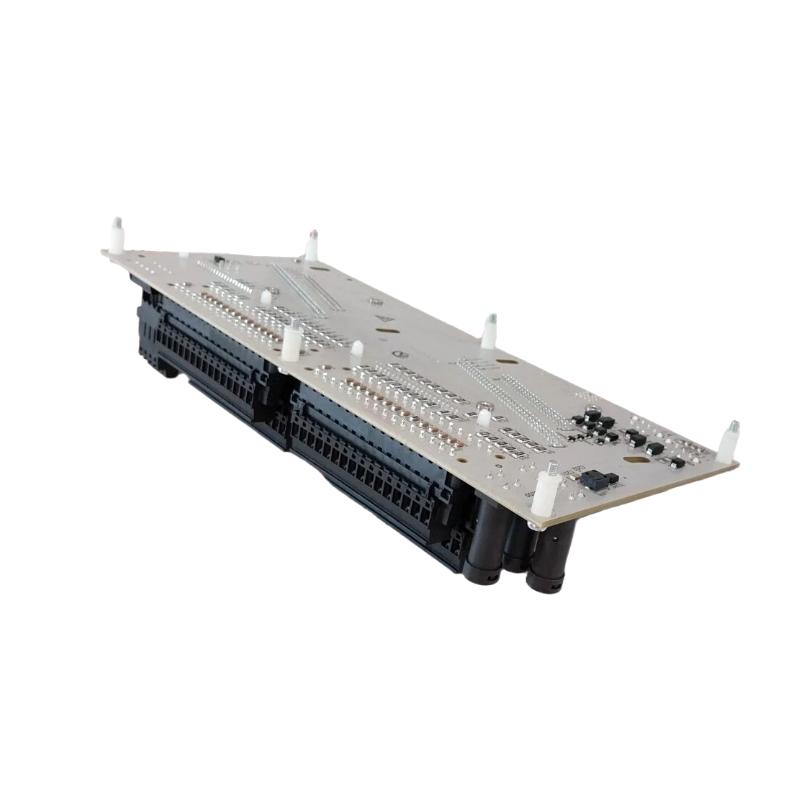

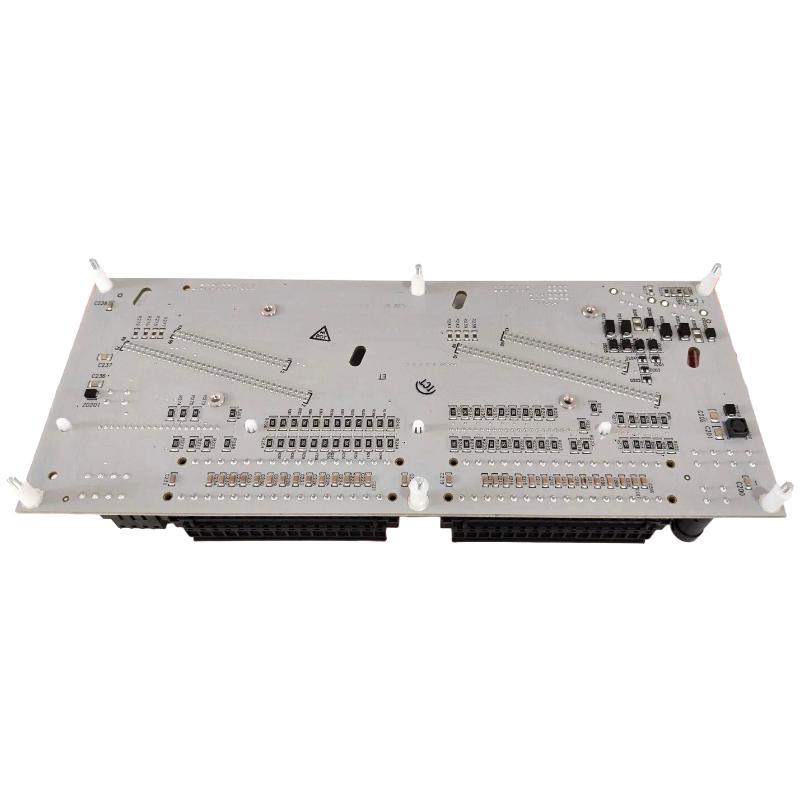

The Honeywell DC‑TDIL11 is a 24 V DC digital input module designed for use in industrial process control systems. It supports redundant I/O configurations and provides high‑integrity input signal acquisition.
General Information
Part Number: DC‑TDIL11
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Type: Digital Input Module
Technology: Supports discrete 24 V DC inputs with optical isolation and redundancy support.
Power Specifications
Supply Voltage: 24 V DC nominal
Input Channels: Multiple channels (factory configuration)
Protection: Reverse‑polarity protection, overload and short‑circuit monitoring
Communication & Interface
Interface: Backplane connection to host control system
Signal Type: Discrete input signals from field devices
Diagnostics: Per‑channel status monitoring, module health and fault indication
Environmental
Operating Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control rack or cabinet
Dimensions & Weight
Dimensions: 38 × 127 × 191 mm
Weight: 0.4 kg
