Overview

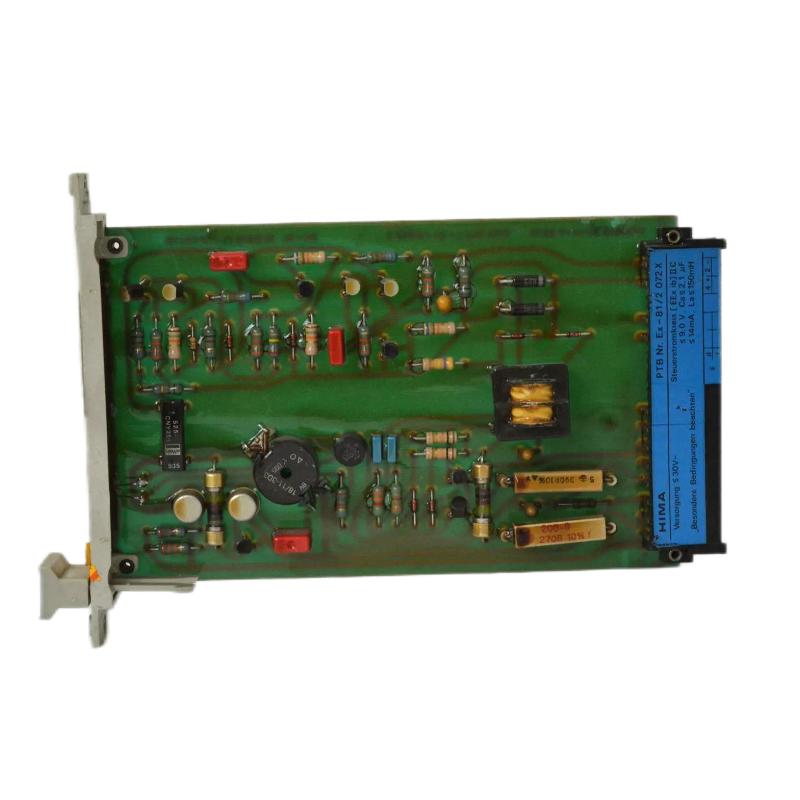

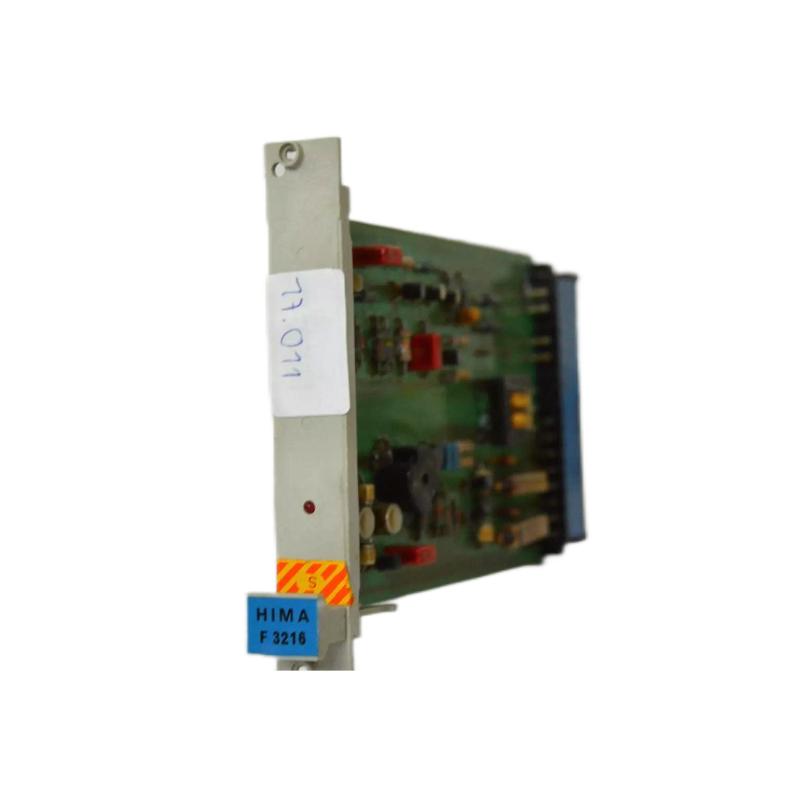

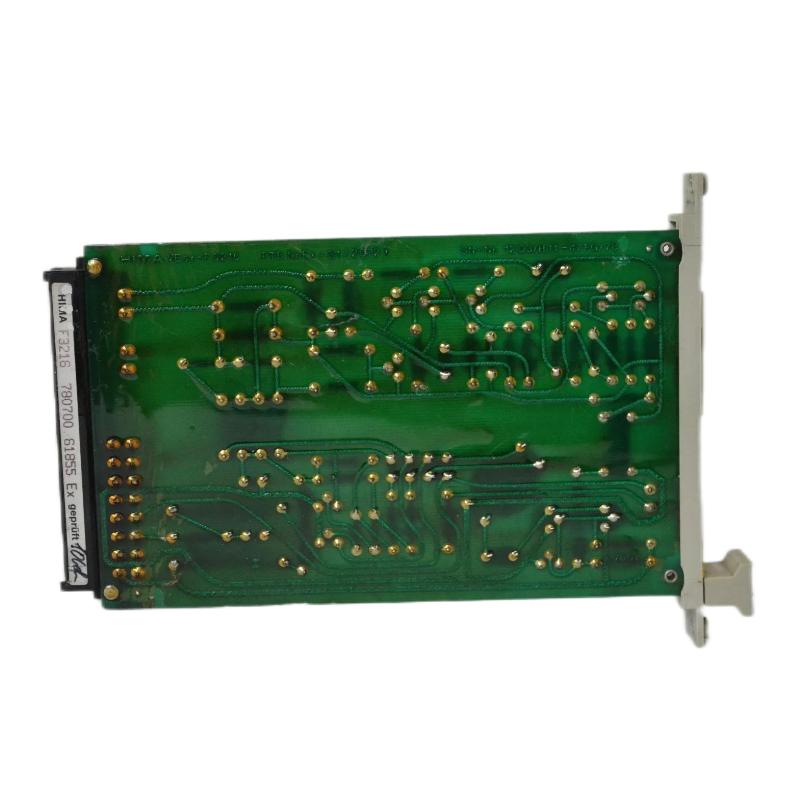

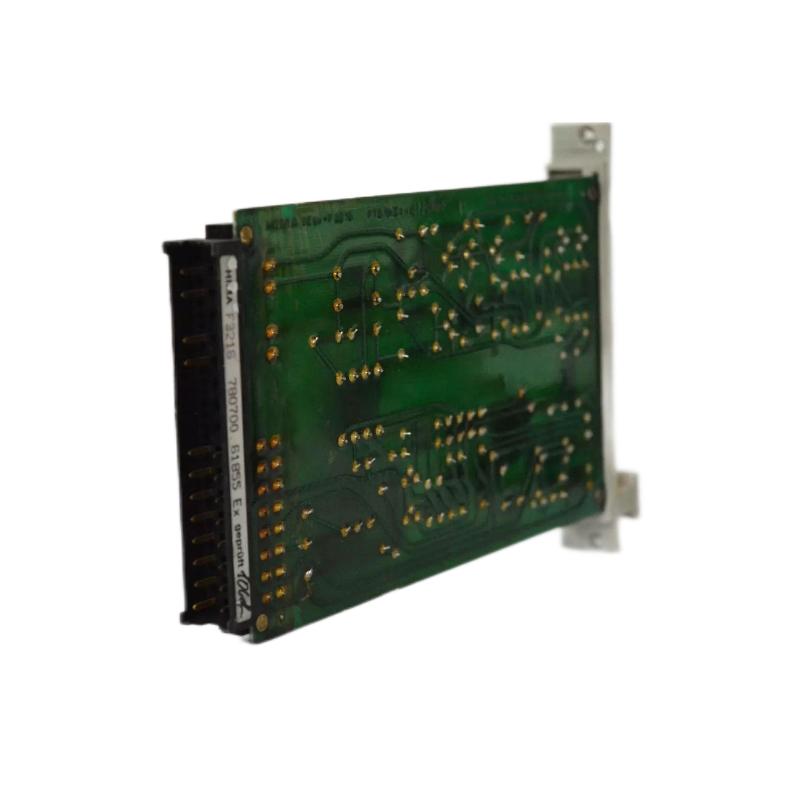

The HIMA F3216 is a safety I/O module designed for HIMA safety‑instrumented systems. It provides reliable digital input and output channels to monitor and control field devices in safety‑critical industrial applications.
General Information
Part Number: F3216
Manufacturer: HIMA
Country of Origin: Germany
Module Type: Safety I/O Module
System Compatibility: HIMatrix / Planar‑F safety systems
Typical Use: Monitoring sensors and switches while driving safety‑relevant outputs such as relays, alarms, or shutdown valves
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low‑power module design for continuous operation
Protection: Output isolation and reverse‑polarity protection; internal diagnostics included
Communication & Interface
Interface: Backplane connection with HIMA safety controller
Signal Type: Digital input and output signals
Diagnostics: Channel monitoring, fault detection, and module health reporting
I/O & Channels
Digital Inputs: 16 channels
Digital Outputs: 8 channels
Output Type: Drives field devices with safety‑rated digital outputs
Environmental
Operating Temperature: –40 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Industrial control cabinets or safety enclosures
Dimensions & Weight
Dimensions (L × W × H): 140 × 100 × 120 mm
Weight: ~ 0.9 kg
