Overview

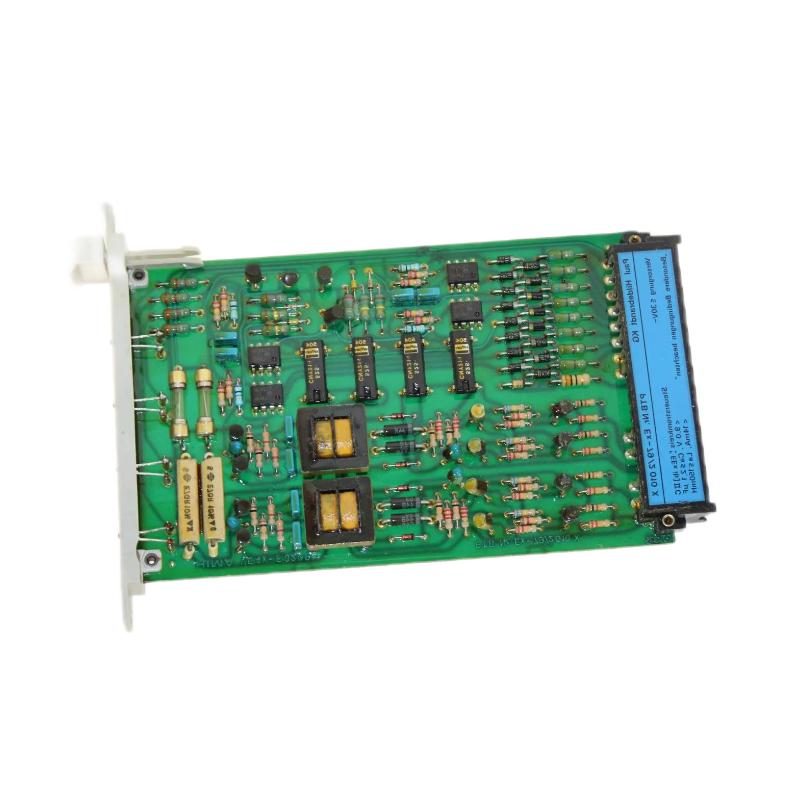

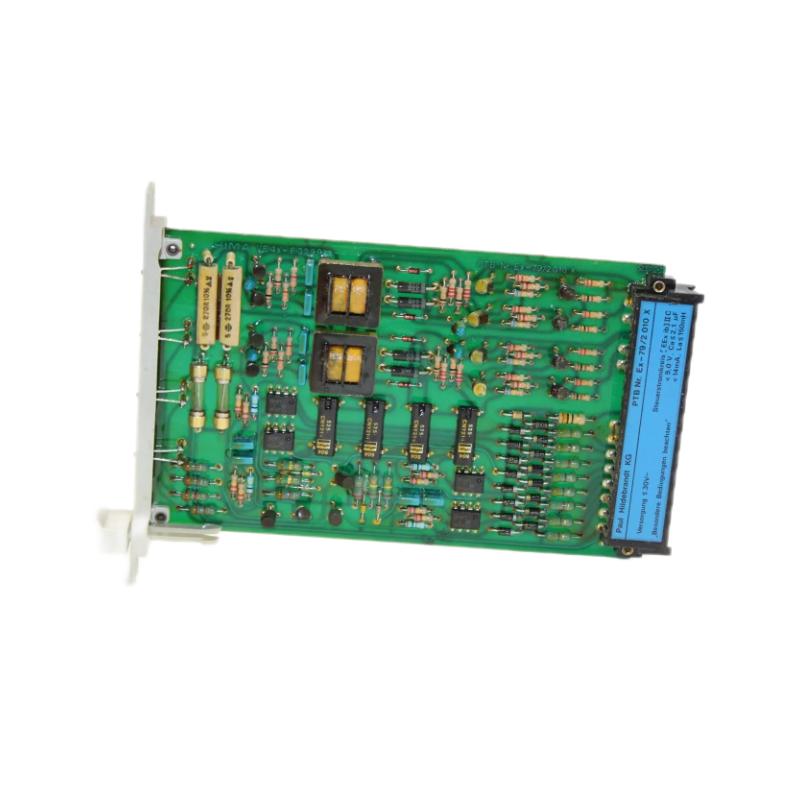

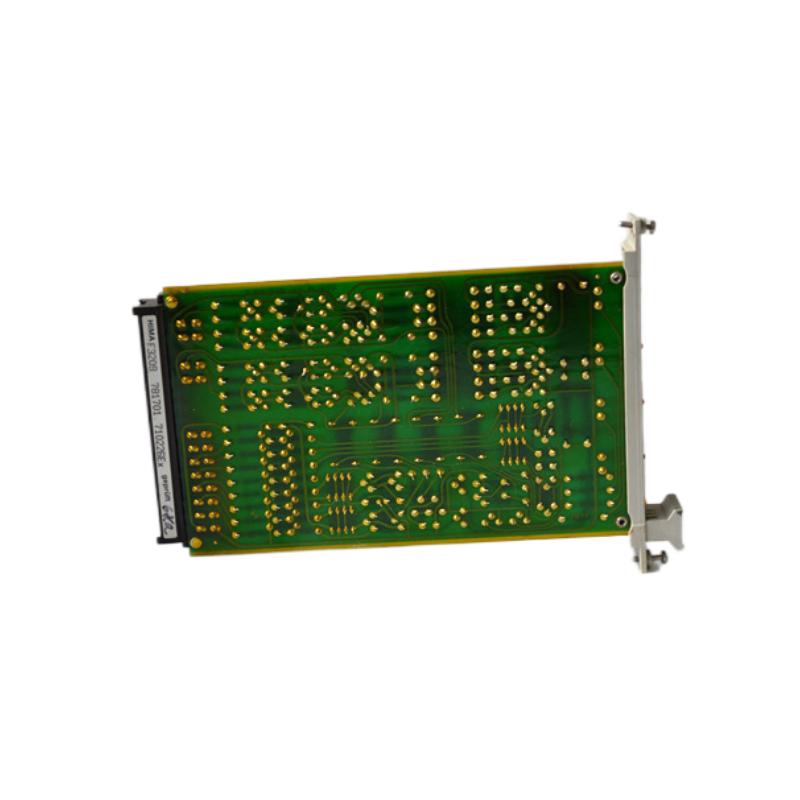

The HIMA F3209 is a smart safety control board used in HIMA safety‑instrumented systems. It combines control logic, I/O handling, and diagnostic capability in a compact module, suitable for safety‑critical industrial automation applications.
General Information
Part Number: F3209
Manufacturer: HIMA
Country of Origin: Germany
Type: Smart Safety Control Board (Safety Controller / I/O Board)
Function: Executes safety logic, interfaces with I/O modules, monitors field signals, and ensures safe, reliable operation of automation processes
Power Specifications
Input Voltage: 24 V DC
Power Supply: Provided via system backplane or appropriate power module
Consumption: Low‑power design optimized for continuous safety system operation
Protection: Includes internal diagnostics and protection logic for safe‑state triggering in case of fault
Communication & Interface
Bus Interface: Compatible with HIMA safety‑bus and backplane system architecture
Signal Handling: Supports both digital input and digital output channels (exact channel count depends on system configuration)
Diagnostics: Built‑in monitoring of I/O integrity, fault detection, and safety‑state enforcement
Redundancy: Designed to integrate with redundant safety architectures for high fault tolerance
Environmental
Operating Temperature: –20 °C to +55 °C
Storage Temperature: –40 °C to +70 °C
Humidity: Standard industrial control‑room conditions, non‑condensing environment
Installation: Suitable for mounting in control cabinets or system racks
Dimensions & Weight
Dimensions (L × W × H): 100 × 60 × 30 mm
Weight: 0.3 kg
