Overview

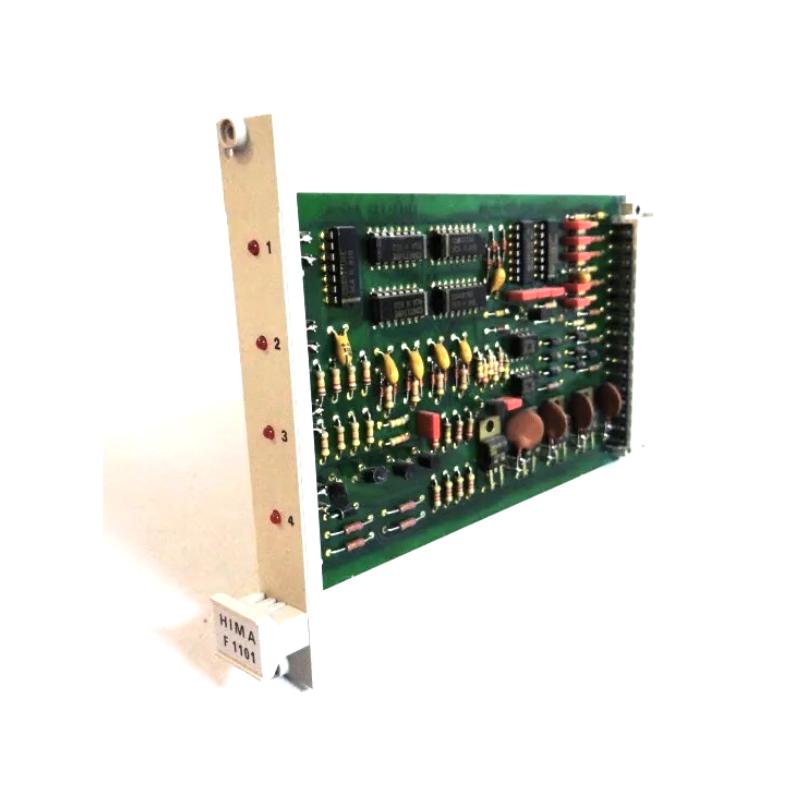

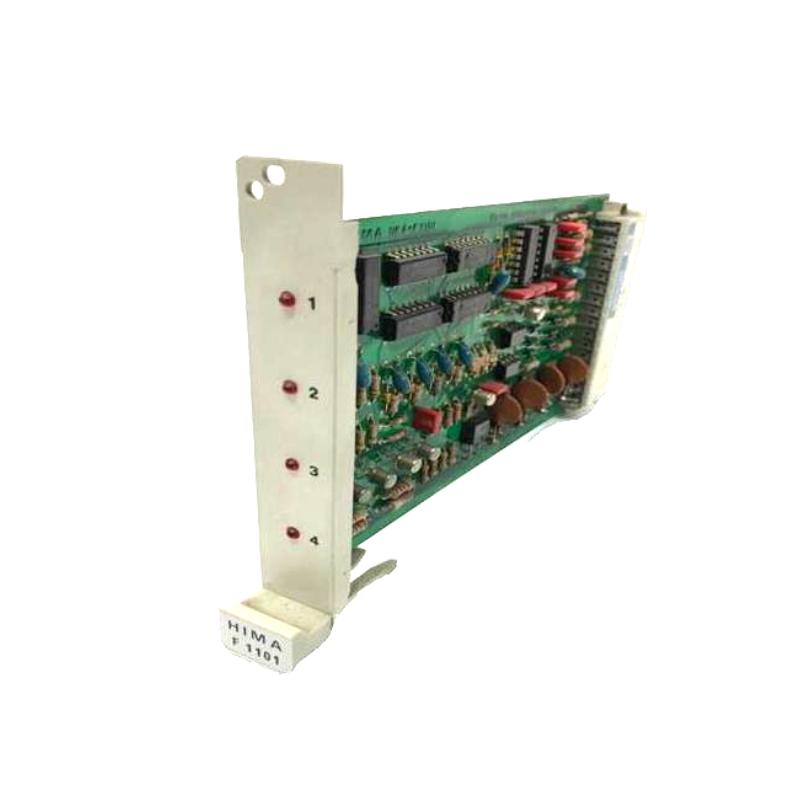

The HIMA F1101 is a central processing unit used in HIMA HIMAX and F1 safety automation systems. It executes safety logic, processes inputs and outputs, and coordinates fail-safe control operations for industrial safety applications.
General Information
Part Number: F1101
Manufacturer: HIMA
Series: F1 / Safety Controller
Type: Safety CPU / Controller Module
Mounting: Rack or panel-mounted inside safety control cabinet
Function: Executes safety logic, manages I/O modules, and interfaces with peripheral safety devices
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input: Powered via controller backplane or external supply
Protection: Overvoltage, short-circuit, and reverse-polarity protection

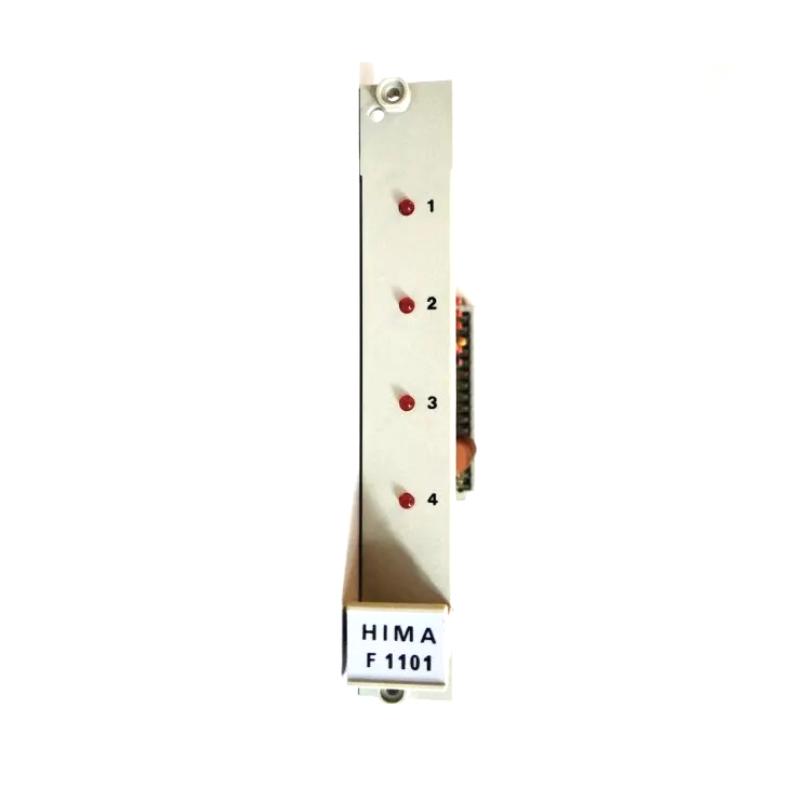

Indicators: LEDs for power, status, and fault
Communication & Interface
Interfaces: Safety bus connection to F1 modules and other controllers
I/O Handling: Coordinates digital and analog signals from safety modules
Diagnostics: On-board LED indicators, self-test routines, and system error reporting
Operator Interface: LEDs and optional test/reset buttons
Reset Features: Supports hardware and system-level reset
Environmental
Operating Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or installed inside industrial cabinet
Dimensions & Weight
Dimensions (L × W × H): 160 × 120 × 90 mm
Weight: ~ 1.2 kg
