Overview

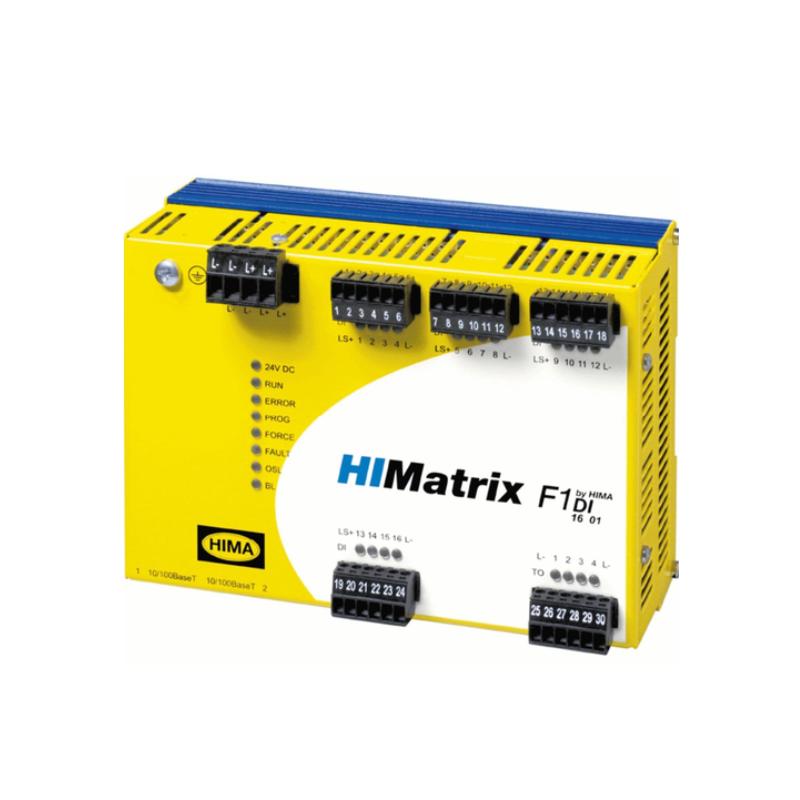

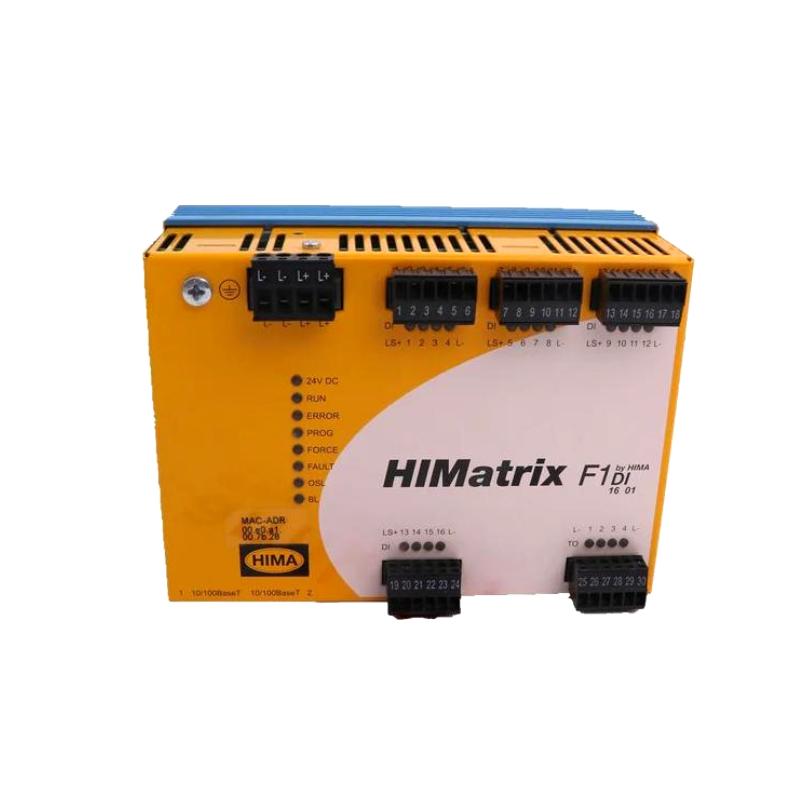

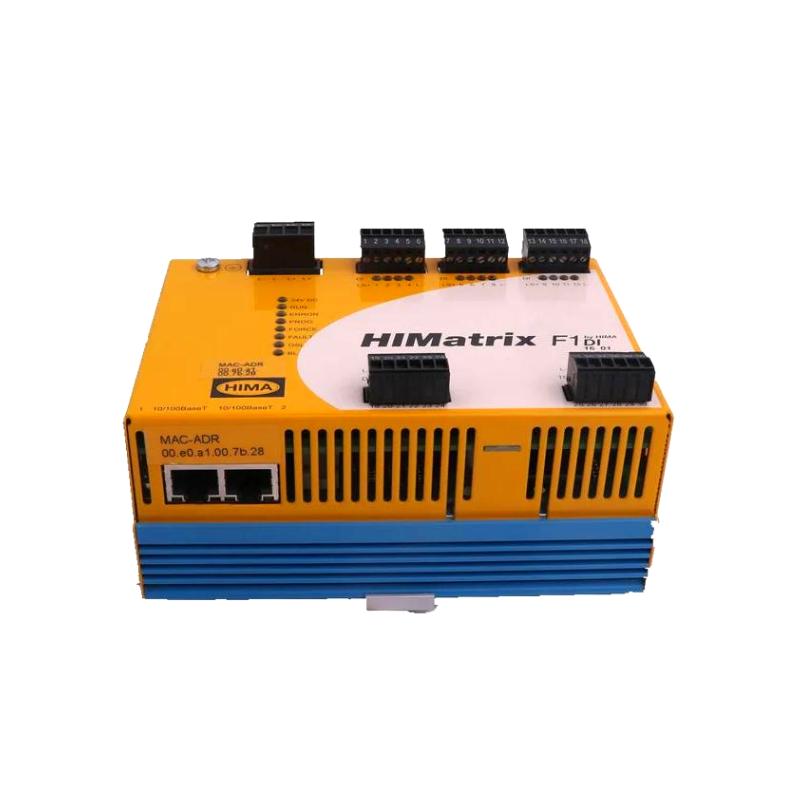

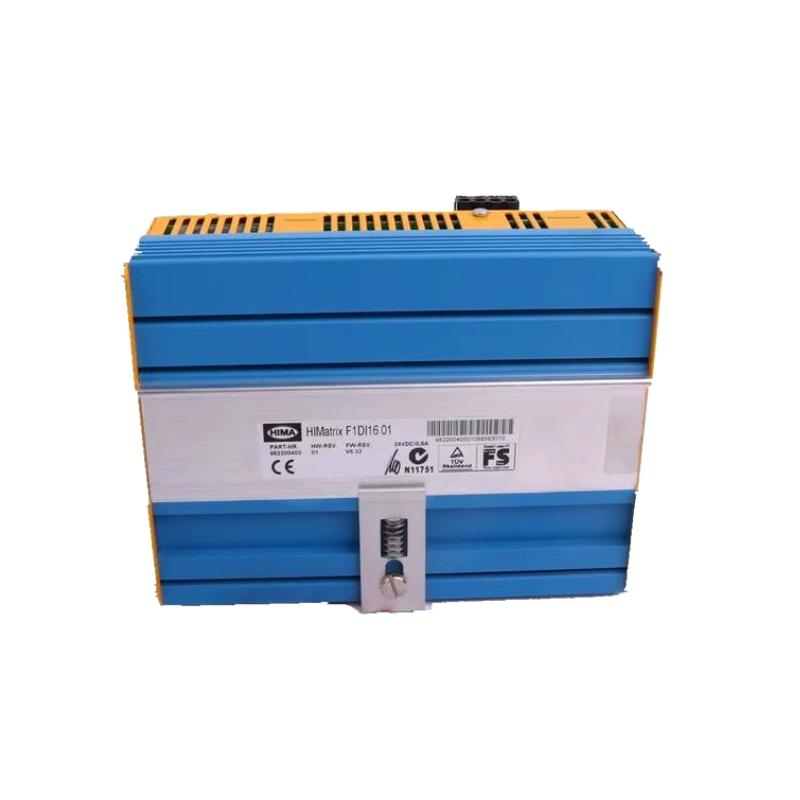

The HIMA F1 DI 16 01 is a digital input module used in HIMA safety automation systems. It monitors 16 digital input channels and provides safe signal processing for industrial safety control applications.
General Information
Part Number: F1 DI 16 01
Manufacturer: HIMA
Series: F1 / Safety Module
Type: Digital Input Module
Mounting: DIN rail or panel-mounted inside safety control cabinets
Function: Monitors multiple safety-critical digital inputs and communicates status to the safety controller
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input: Powered via safety controller or module backplane
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LED indicators for channel status and faults
Communication & Interface
Interfaces: Safety bus connection to HIMA controllers
I/O Channels: 16 digital input channels
Diagnostics: On-board LEDs and test points for monitoring and maintenance
Operator Interface: LEDs and optional test/reset buttons
Reset Features: Supports hardware and system-level reset
Environmental
Operating Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or installed inside industrial control cabinet
Dimensions & Weight
Dimensions (L × W × H): 152 × 114 × 66 mm
Weight: 0.7 kg
