Overview

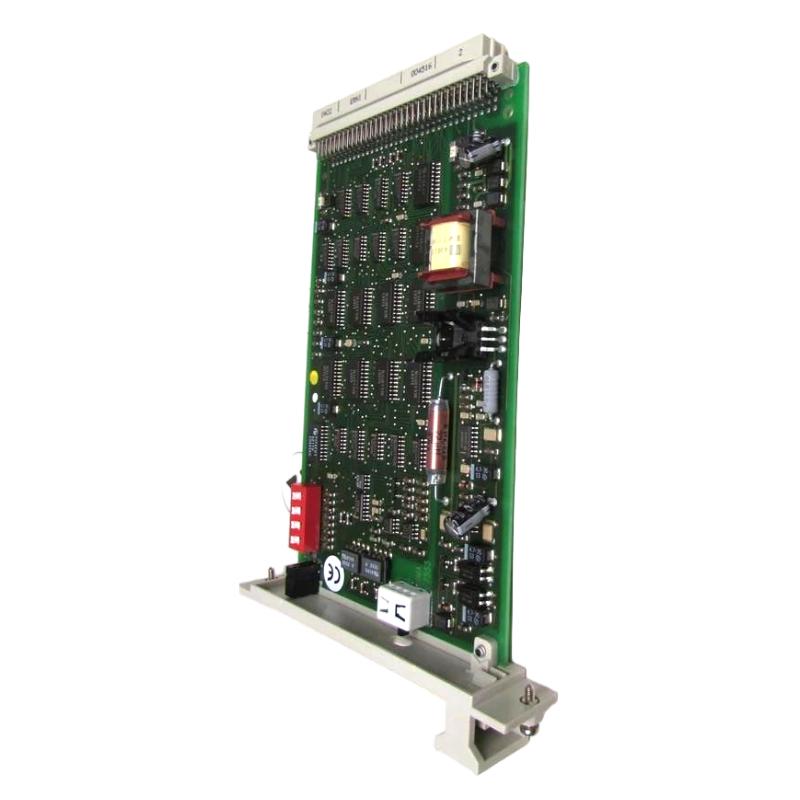

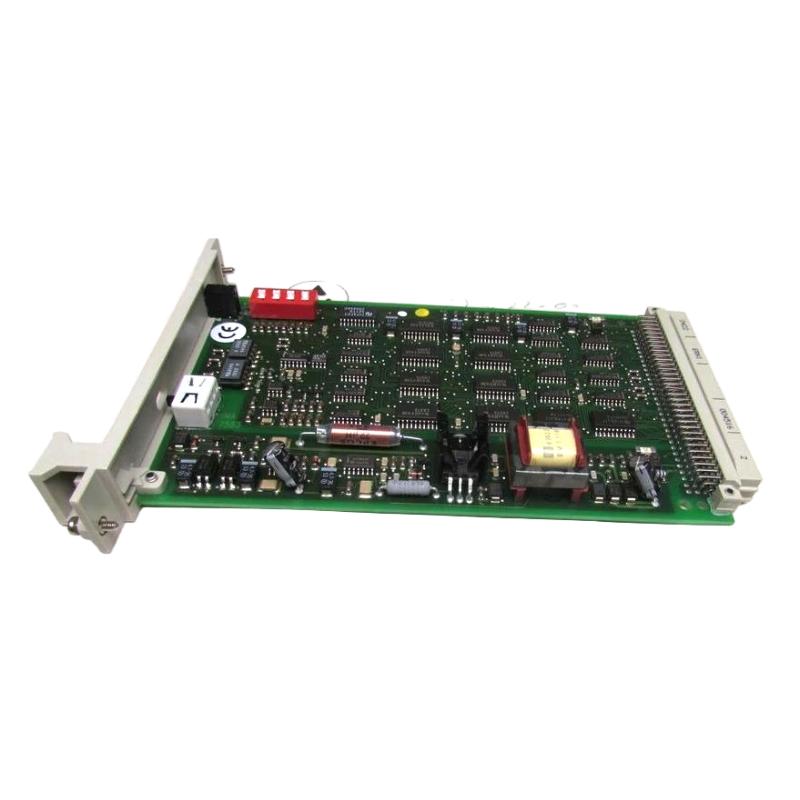

The HIMA F7553 is a 4-channel analog output module designed for HIMax and HIQuad safety systems. It provides precise and reliable analog signal control for actuators, control valves, and process devices in safety-critical applications. The module supports SIL-compliant operation with integrated diagnostics.
General Information
Part Number: F7553
Manufacturer: HIMA
Country of Origin: Germany
Series: F-Series I/O
Type: Analog Output Module (AO)
Mounting: Plug-in module for HIMA system backplane
Application: Safety PLC systems, ESD, BMS, turbine and process control
Power Specifications
Supply Voltage: Powered via system backplane
Output Type: 4–20 mA analog outputs
Load Capability: Standard 4–20 mA current loops
Protection: Short-circuit, overload, and internal diagnostics
Power Consumption: Low module logic consumption
Communication & Interface
Interface Type: HIMA backplane communication
Output Channels: 4 analog outputs
Signal Type: 4–20 mA current signals
Diagnostics: Output health monitoring, fault detection, LED status indicators

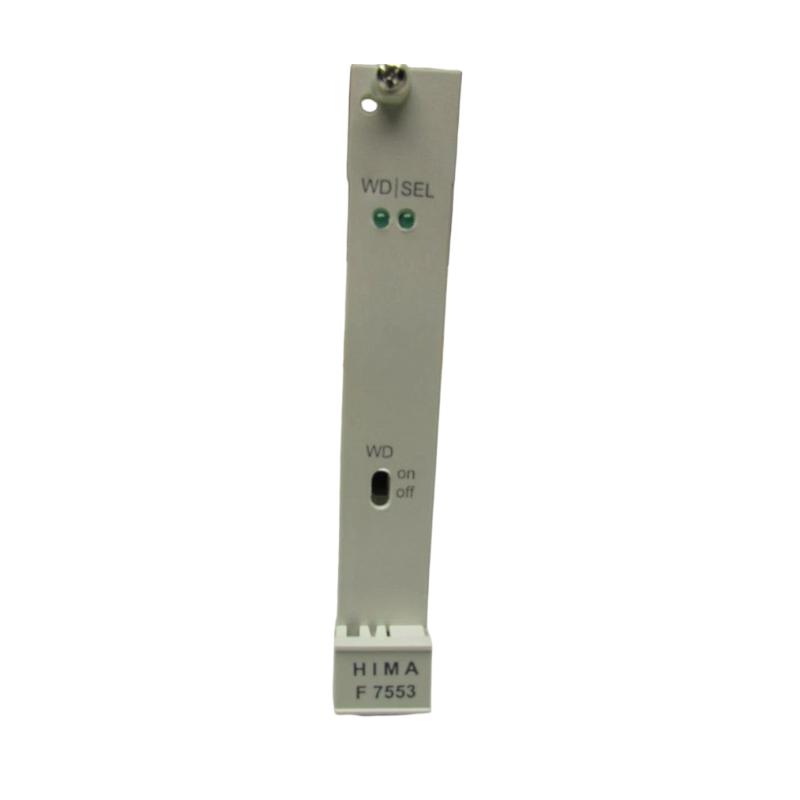

LED Indicators: Channel-specific LEDs for diagnostics and operation
I/O & Channels
Output Type: Analog Output (AO)
Number of Channels: 4
Isolation: Galvanic isolation between module and field wiring
Signal Accuracy: High precision for critical process control
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet
Protection Rating: IP20 (when installed in rack enclosure)
Dimensions & Weight
Dimensions (L × W × H): 128 × 40 × 160 mm
Weight: ~ 0.28 kg
