Overview

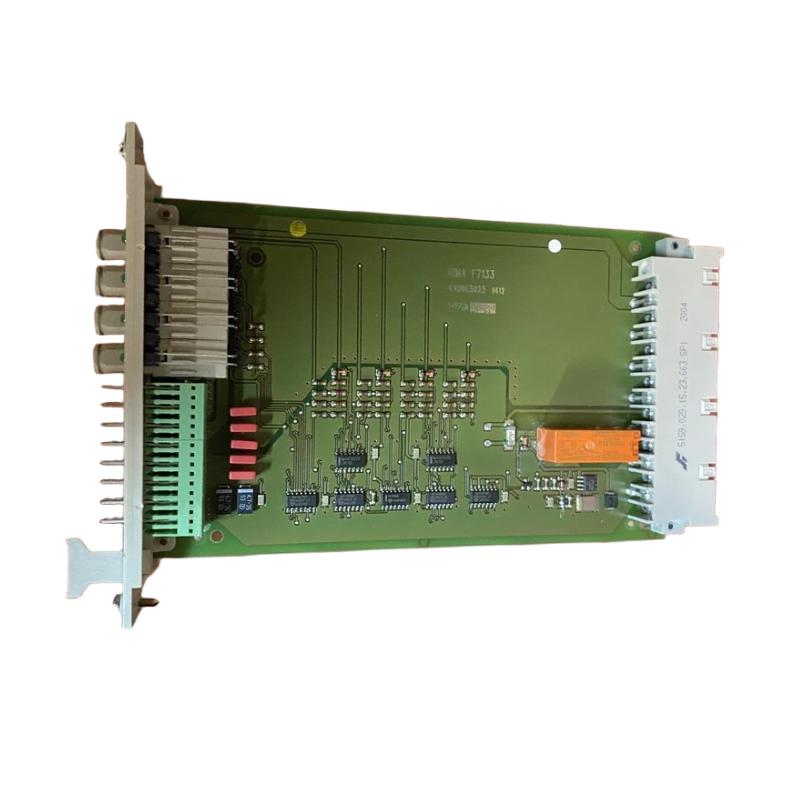

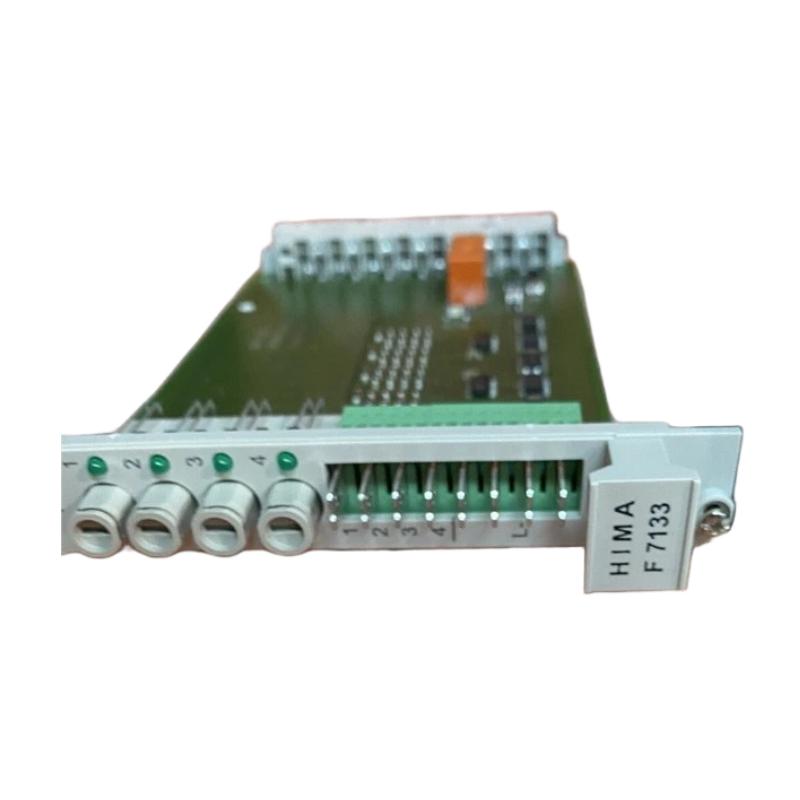

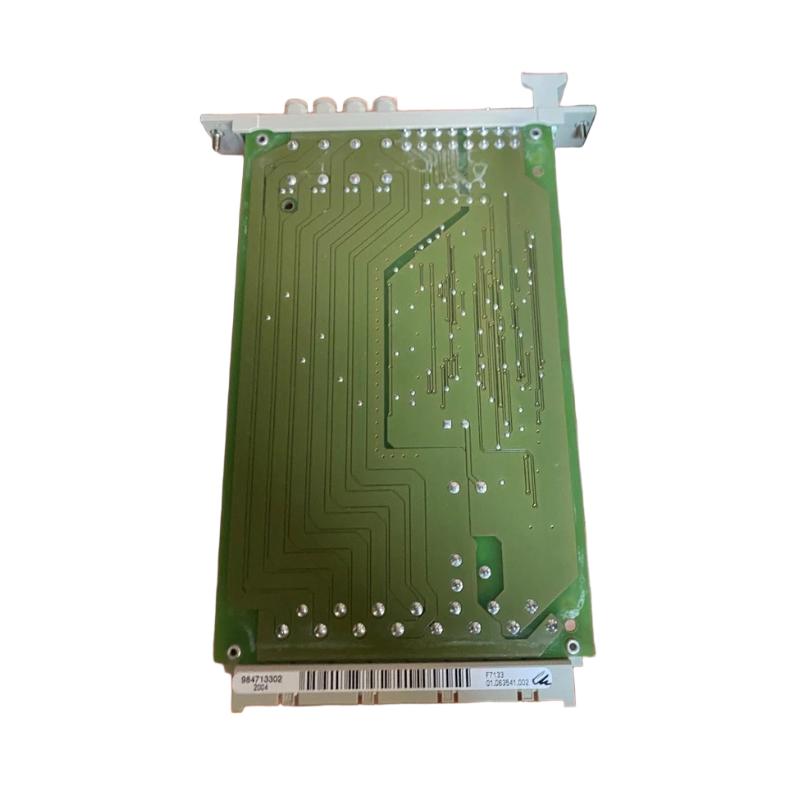

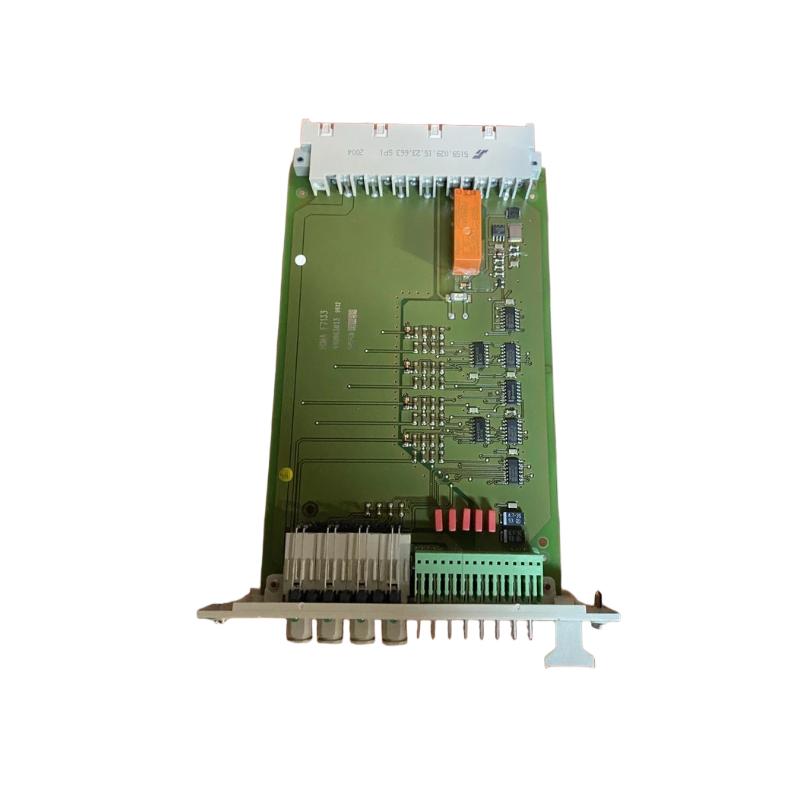

The HIMA F7133 is a 16-channel digital output module designed for HIMax and HIQuad safety systems. It safely switches field devices such as valves, contactors, and alarms, offering integrated diagnostics and SIL-compliant performance for critical safety applications.
General Information
Part Number: F7133
Manufacturer: HIMA
Country of Origin: Germany
Series: F-Series I/O
Type: Digital Output Module (DO)
Mounting: Plug-in module for HIMA backplane racks
Application: Safety PLCs, ESD, BMS, turbine control, and process interlocks
Power Specifications
Supply Voltage: Powered via system backplane
Output Voltage: 24 V DC typical for field devices
Load Type: Supports resistive and inductive loads within module rating
Protection: Overload and short-circuit protection with internal diagnostics
Power Consumption: Low module logic consumption
Communication & Interface
Interface Type: HIMA system backplane communication
Output Channels: 16 digital outputs
Signal Type: 24 V DC switching outputs
Diagnostics: Channel health monitoring, fault detection
LED Indicators: Individual LEDs for channel status and diagnostics
I/O & Channels
Output Type: Digital Output (DO)
Number of Channels: 16
Isolation: Galvanic isolation between module and field wiring
External Load Support: Relays, solenoids, and other devices within rated limits
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet
Protection Rating: IP20 (installed in cabinet or rack)
Dimensions & Weight
Dimensions (L × W × H): 128 × 40 × 160 mm
Weight: ~ 0.28 kg
