Overview

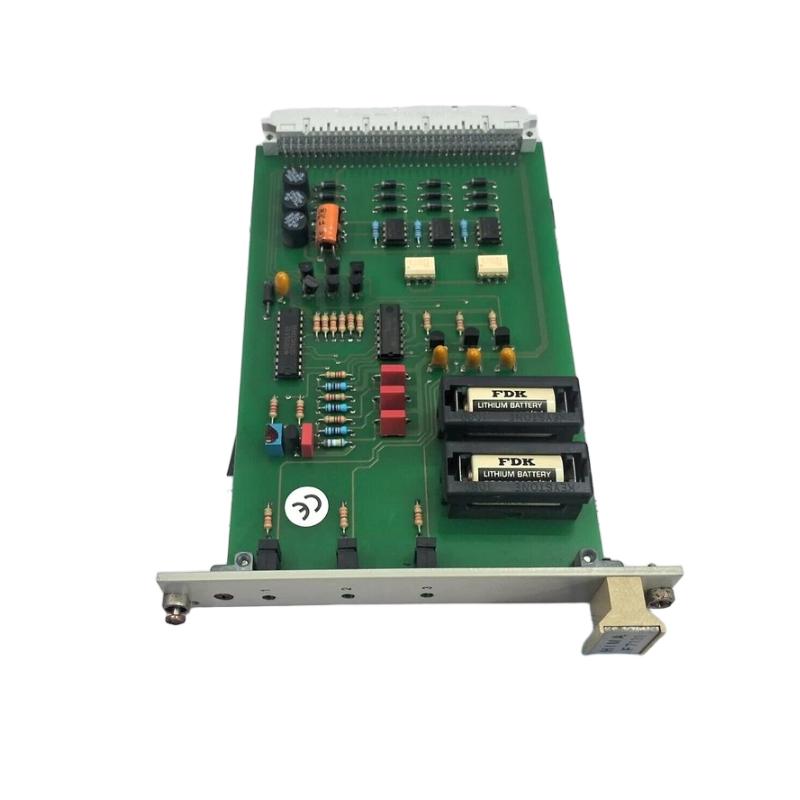

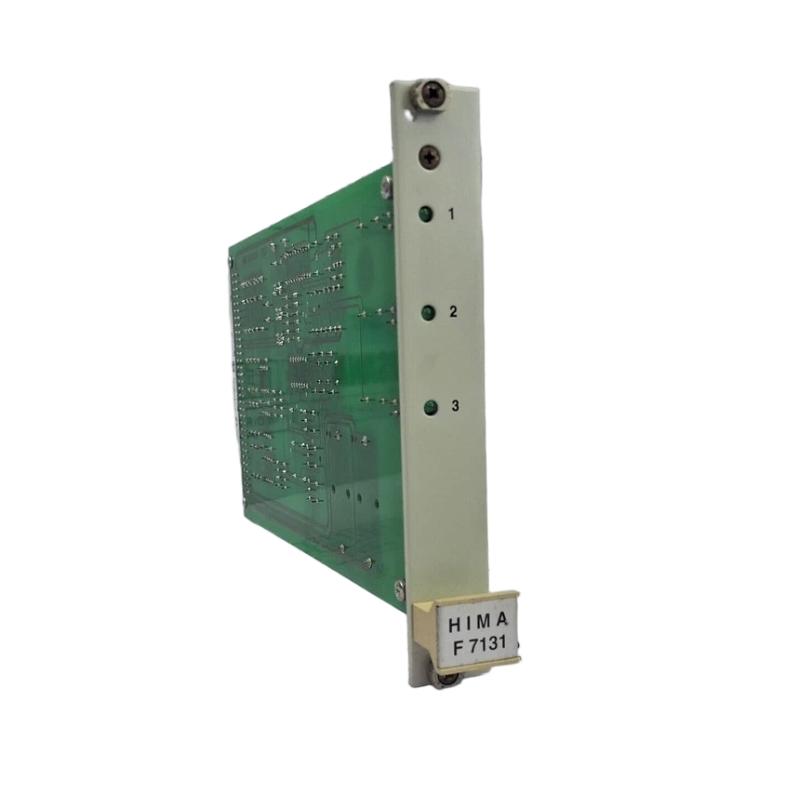

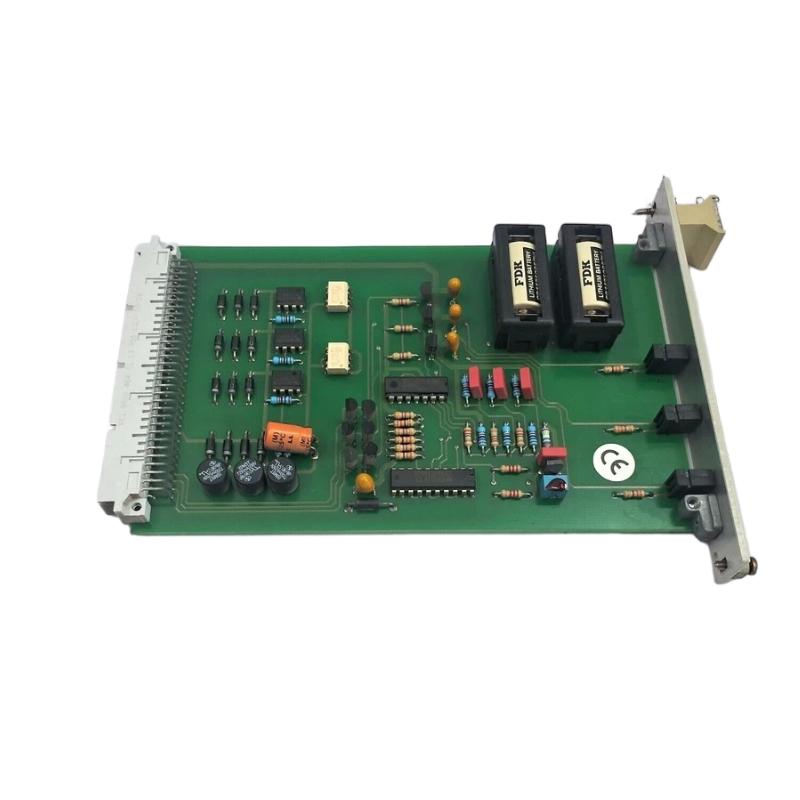

The HIMA F7131 is a 16-channel digital output module for HIMA HIMax and HIQuad safety systems. It is designed to safely switch field devices such as valves, alarms, and contactors, with integrated diagnostics and SIL-compliant performance for safety-critical applications.
General Information
Part Number: F7131
Manufacturer: HIMA
Country of Origin: Germany
Series: F-Series I/O
Type: Digital Output Module (DO)
Mounting: Plug-in module for HIMA system backplane
Application: Safety PLC, ESD, BMS, turbine and process control systems
Power Specifications
Supply Voltage: Powered via system backplane
Output Voltage: 24 V DC (typical field output)
Load Type: Supports resistive and inductive loads within rated limits
Protection: Overload protection, short-circuit detection, internal diagnostics
Power Consumption: Low module logic power
Communication & Interface
Interface Type: Backplane interface for HIMA controller communication
Output Channels: 16 digital outputs
Signal Type: 24 V DC switching outputs
Diagnostics: Channel health monitoring, fault detection, LED indicators

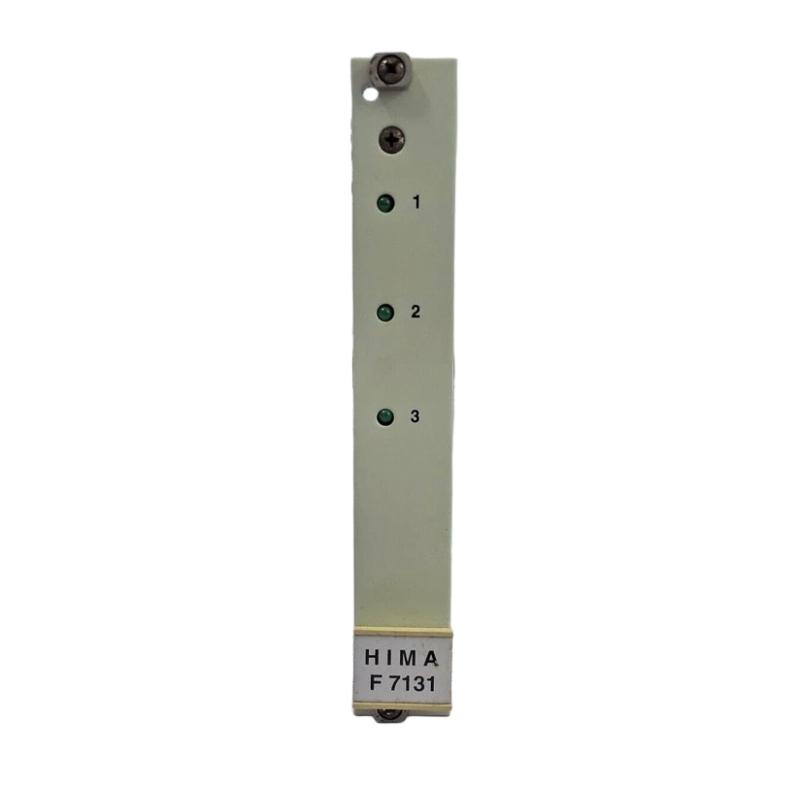

LED Indicators: One LED per channel for status and diagnostics
I/O & Channels
Output Type: Digital Output (DO)
Number of Channels: 16
Isolation: Galvanic isolation between module and field wiring
External Load Support: Relays, solenoids, and other devices within rated limits
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet
Protection Rating: IP20 (installed in rack enclosure)
Dimensions & Weight
Dimensions (L × W × H): 128 × 40 × 160 mm
Weight: ~ 0.28 kg
