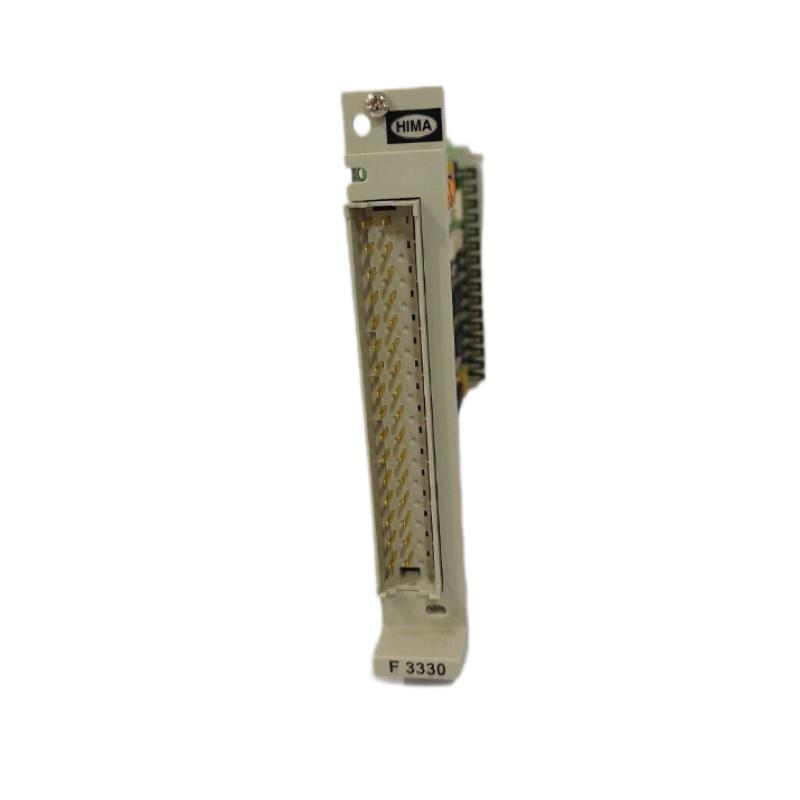

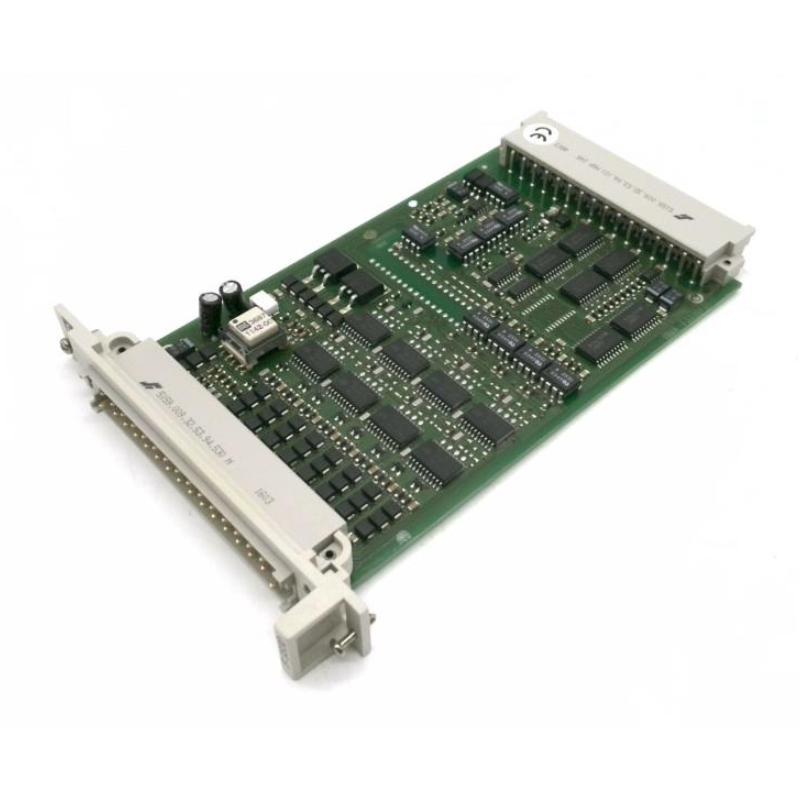

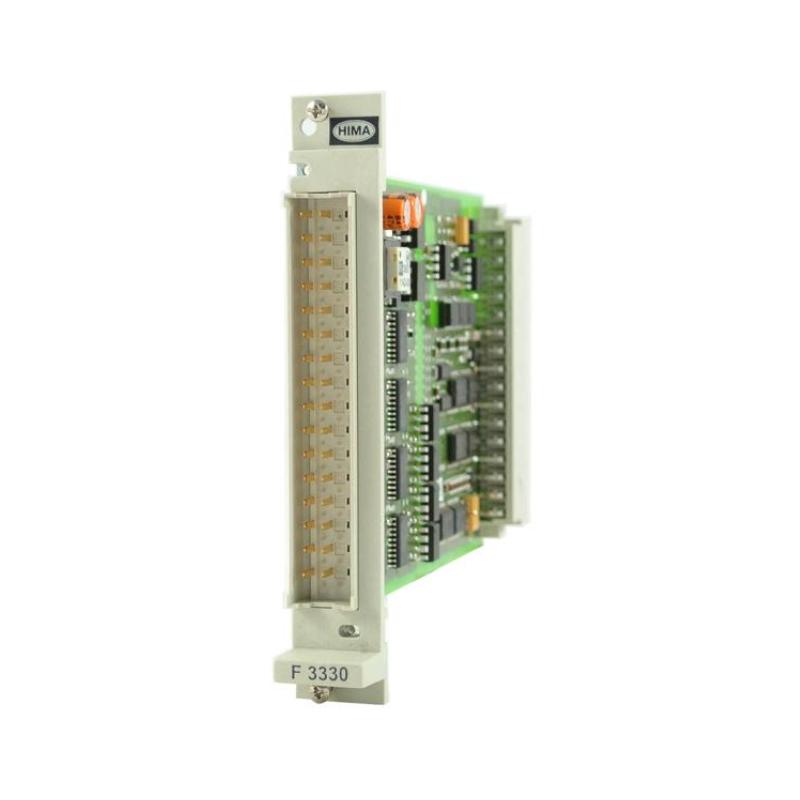

HIMA F3330 984333002 | Analog Input Module Brand new and original

Overview

The HIMA F3330 is a high-performance 8-channel analog input module designed for use in HIMA HIQuad and HIMax safety systems. It provides reliable acquisition of analog process values and includes advanced diagnostics for safety-critical applications such as ESD, BMS, and turbine protection.

General Information

Part Number: 984333002
Model: F3330
Manufacturer: HIMA
Country of Origin: Germany
Series: F-Series I/O
Type: Analog Input Module (AI)
Mounting: Plug-in module for HIMA rack systems
Input Types: 4–20 mA / 0–20 mA (depending on configuration)

Power Specifications

Module Supply: Provided through the HIMA backplane
Input Signal Power: Loop-powered or externally powered (per channel configuration)
Power Consumption: Low module logic consumption
Protection: Overvoltage protection, internal supervision, fault detection

Communication & Interface

Interface: HIMA system backplane communication
Channels: 8 analog input channels
Input Type: Current analog signals (typically 4–20 mA)
Diagnostics: Line fault detection, signal integrity supervision, channel status
Indicators: LED indicators for module status and diagnostics

I/O & Channels

Channel Count: 8 AI channels
Signal Range: 0–20 mA / 4–20 mA
Resolution: System-dependent high-resolution analog conversion
Isolation: Galvanic isolation between field signals and system electronics

Environmental

Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH (non-condensing)
Protection Class: IP20 (in cabinet installation)
Application Environment: Industrial control cabinets / safety system racks

Dimensions & Weight

Dimensions (L × W × H): 128 × 40 × 160 mm
Weight: ~0.28 kg
