HIMA F3236 | Digital Input Module Quality Assurance

Overview

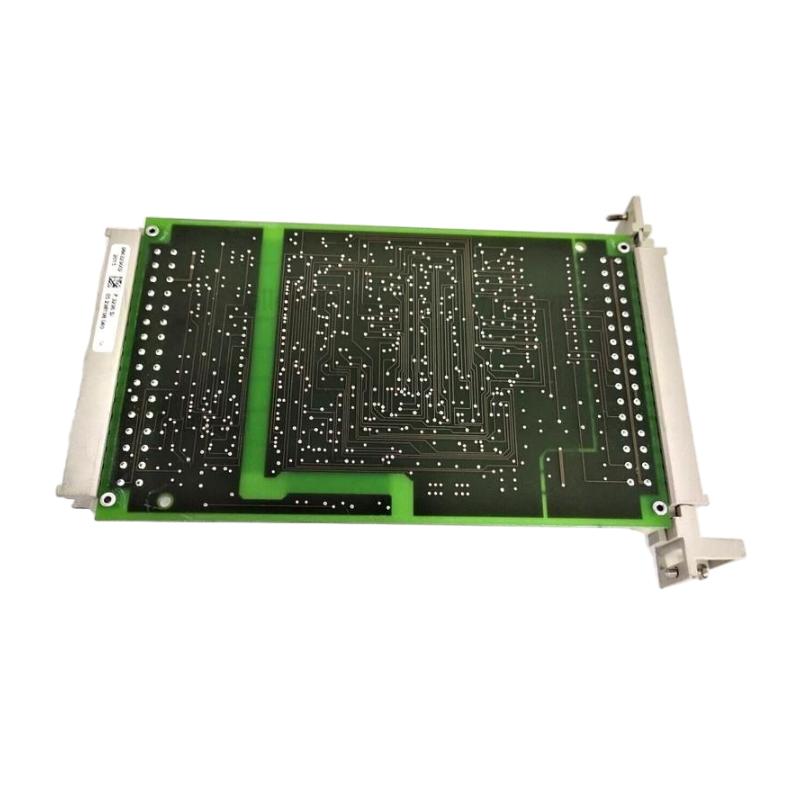

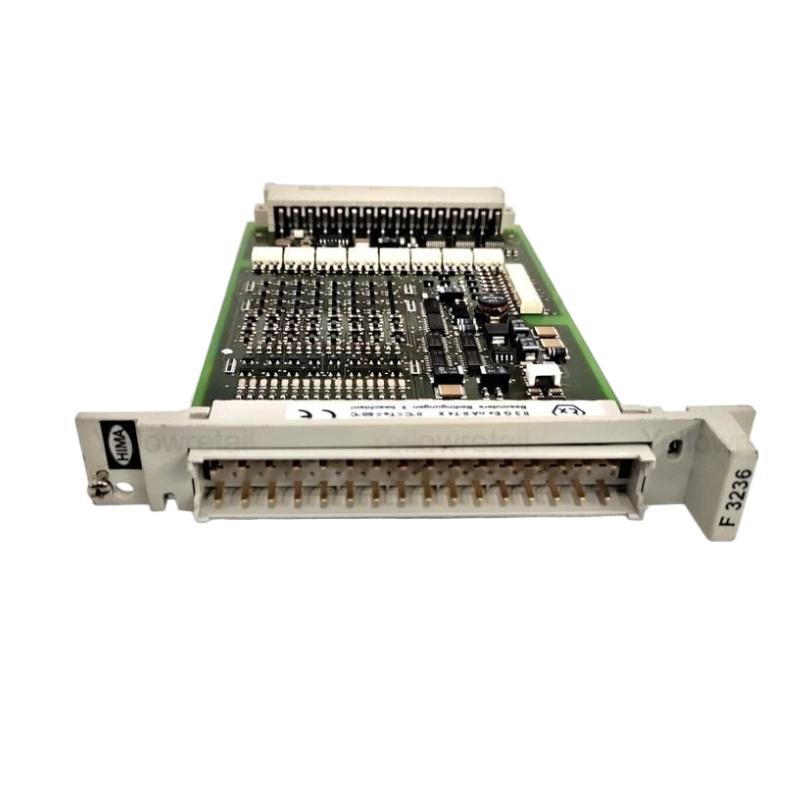

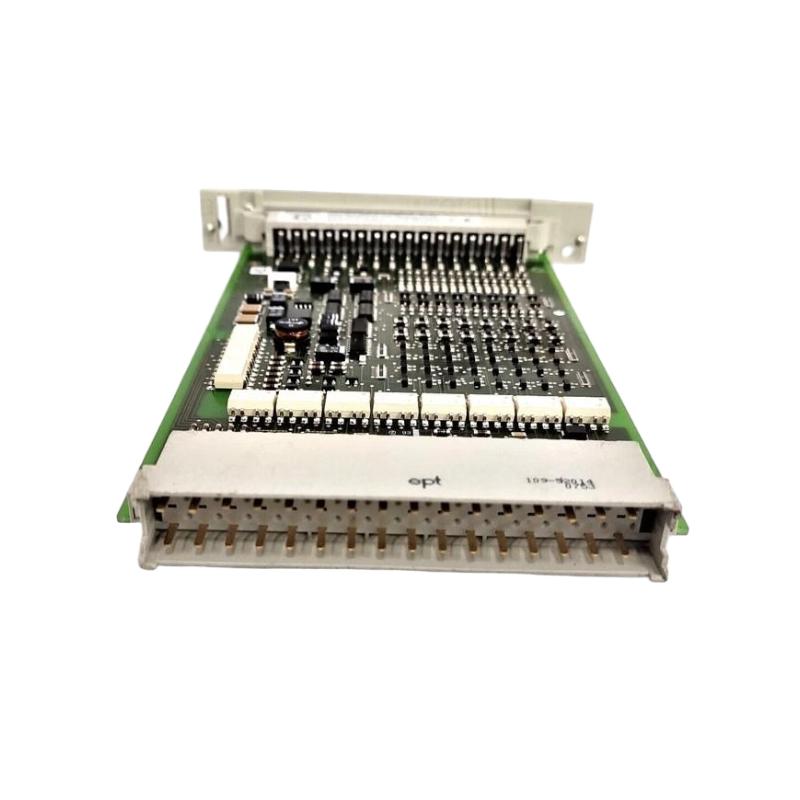

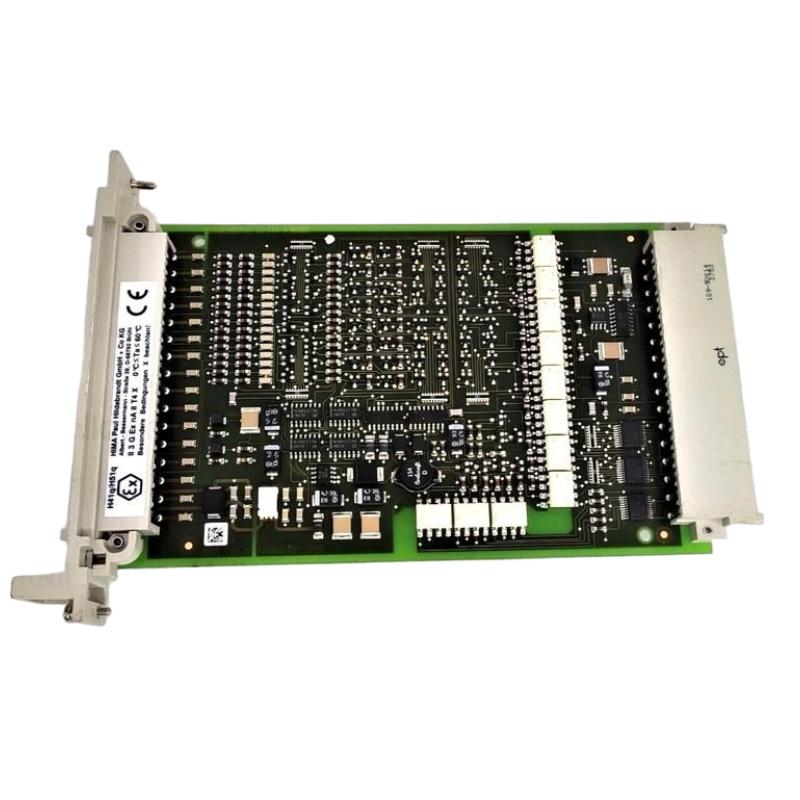

The HIMA F3236 is a digital input module designed for HIMA HIMax / HIQuad safety instrumented systems. It provides reliable 16-channel DI signal acquisition with built-in diagnostics and SIL-rated safety performance for critical process and industrial safety applications.

General Information

Part Number: F3236
Manufacturer: HIMA
Country of Origin: Germany
Series: F-Series I/O
Type: Digital Input Module (16-channel)
Mounting: Plug-in module for HIMA system racks
Application: Safety PLC systems, ESD, BMS, and general process control

Power Specifications

Module Supply: Powered via system backplane
Input Voltage (Field): 24 V DC (typical DI field signal)
Power Consumption: Low-power logic load from rack power
Protection: Reverse-polarity tolerance, internal diagnostics, short-circuit monitoring

Communication & Interface

Interface Type: Backplane communication bus
Input Channels: 16 digital inputs
Signal Type: Dry-contact or powered 24 V signal inputs
Diagnostics: Channel fault detection, wire-break monitoring, state indication
LED Indicators: Individual channel LEDs for status display

I/O & Channels

Input Type: Digital Input (DI)
Number of Channels: 16
Isolation: Channel-to-system electrical isolation
Signal Applications: Switches, sensors, interlocks, field contacts

Environmental

Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial cabinet installation
Protection Rating: IP20 (when installed in protected enclosure)

Dimensions & Weight

Dimensions (L × W × H): 128 × 40 × 160 mm
Weight: ~0.28 kg

Brand-new originals in stock, 24/7 customer service available, quotes provided instantly.
