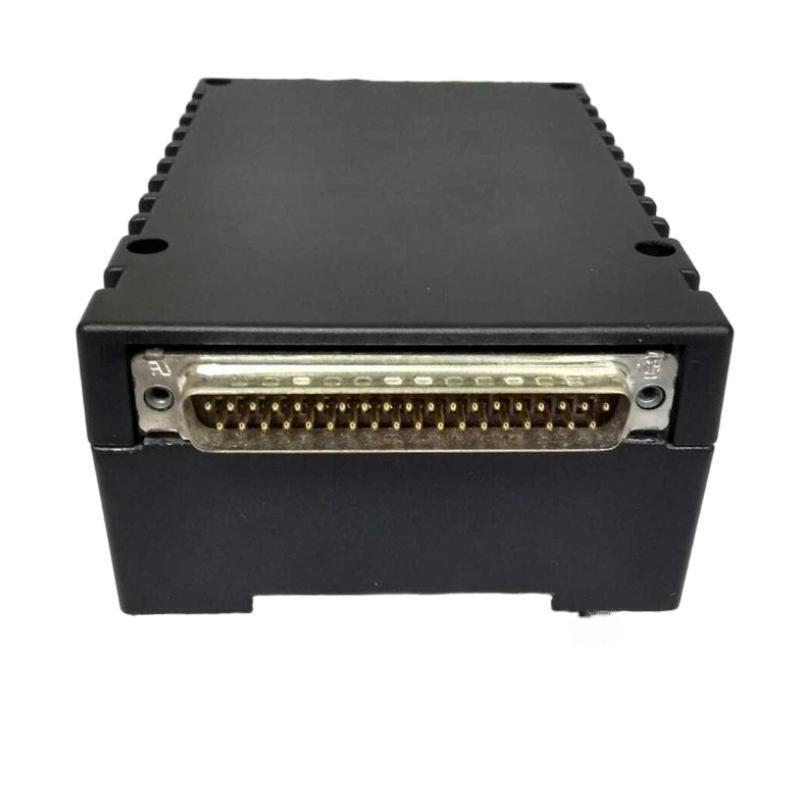

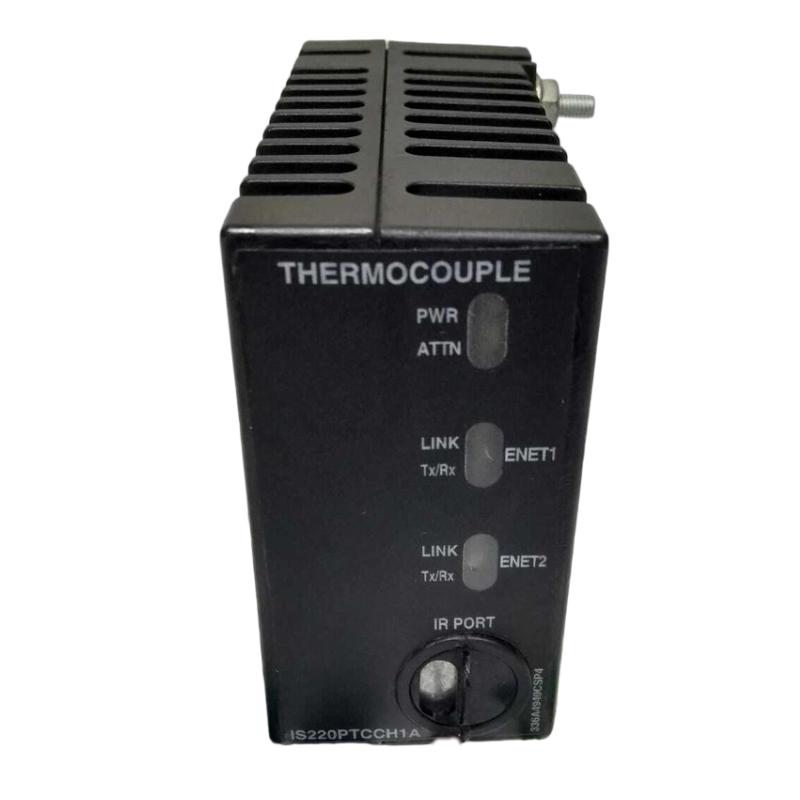

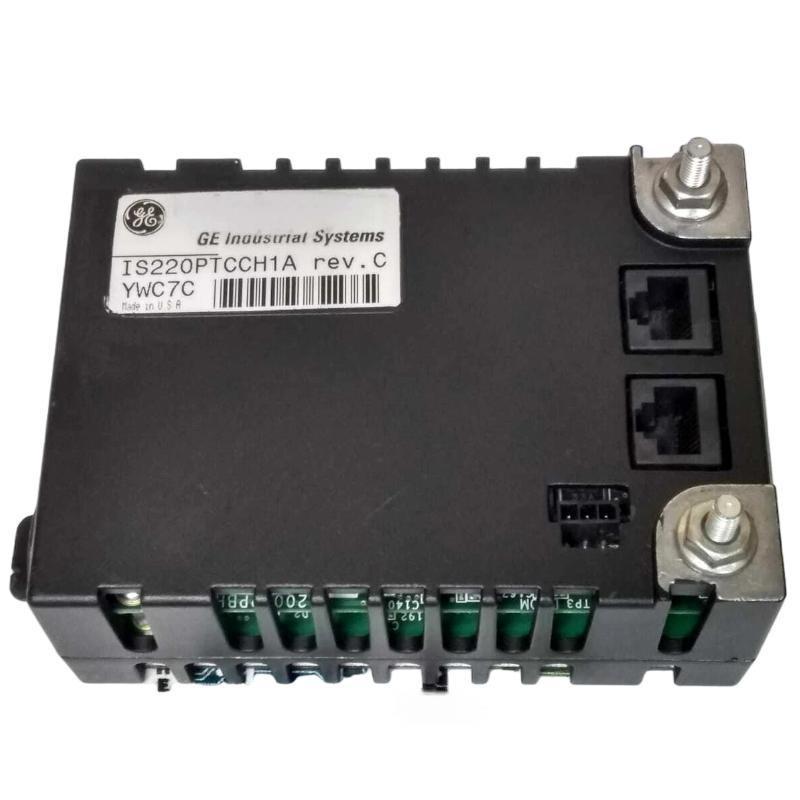

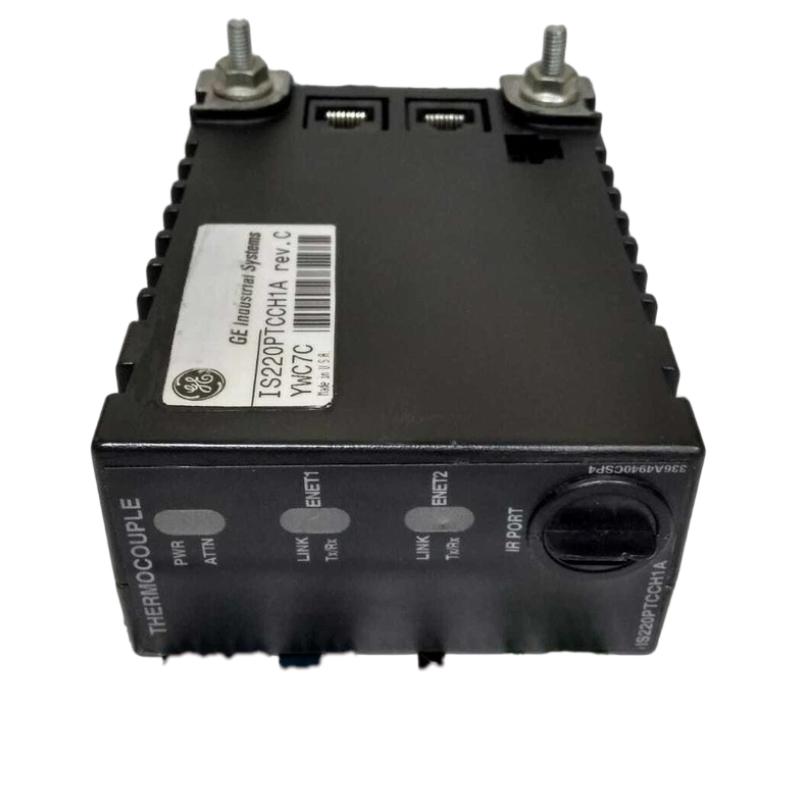

GE IS220PTCCH1A Thermocouple Input Module

Overview

The GE IS220PTCCH1A is a thermocouple input module designed for GE Mark VIe control systems. It accurately acquires temperature signals from thermocouples and converts them into digital data for monitoring and control. The module is widely used in power generation, turbine control, and industrial process automation applications requiring precise temperature measurement.

General Information

Part Number: IS220PTCCH1A

Manufacturer: GE

Brand: GE

Country of Origin: USA

Series: Mark VIe Control System

Product Type: Thermocouple Input Module

Mounting Type: Panel or cabinet installation

Function: Collects thermocouple temperature signals for system monitoring and control

Design: High-accuracy industrial temperature input module

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power electronic module

Power Source: Internal control system power supply

Protection: Overvoltage and input signal protection

Start-Up: Automatic initialization during system startup

Communication & Interface

Interface Type: Mark VIe system communication interface

Input Type: Thermocouple inputs

Signal Processing: High-resolution temperature signal conversion

Diagnostics: Sensor fault detection and module status monitoring

System Integration: Compatible with GE Mark VIe distributed control systems

Environmental

Operating Temperature: -30 to 65 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade vibration tolerance

Protection Rating: Suitable for installation inside industrial control cabinets

Installation Environment: Indoor industrial enclosure required

Dimensions & Weight

Dimensions: 82.6 × 41.9 mm

Weight: 0.2 kg
