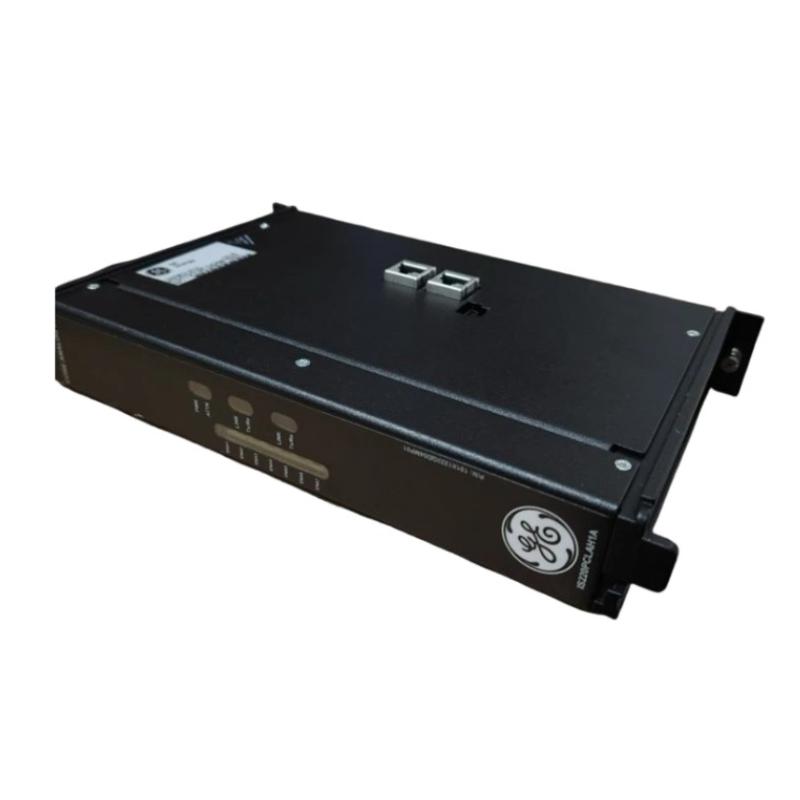

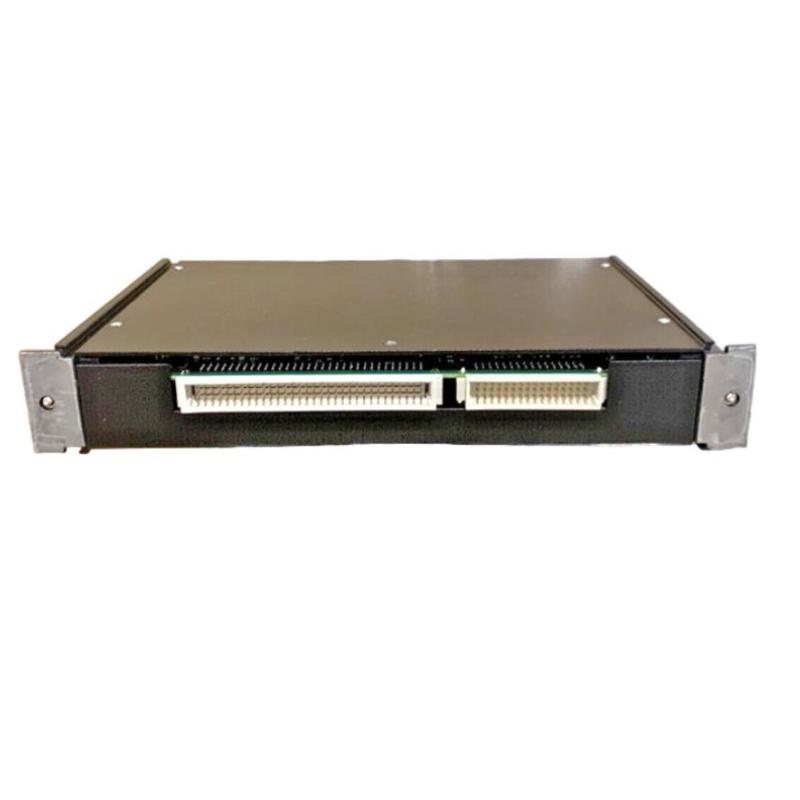

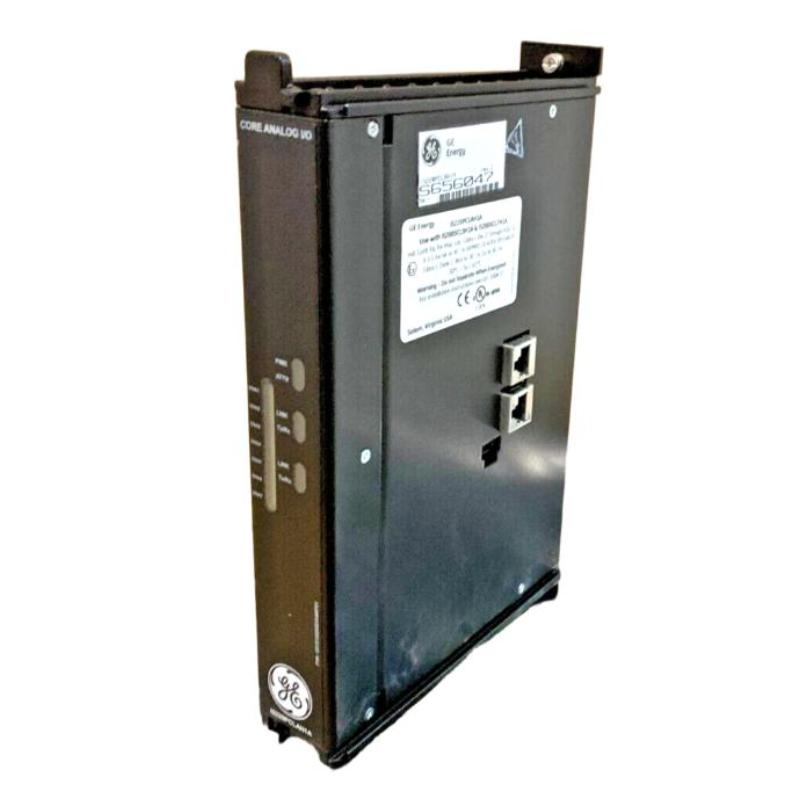

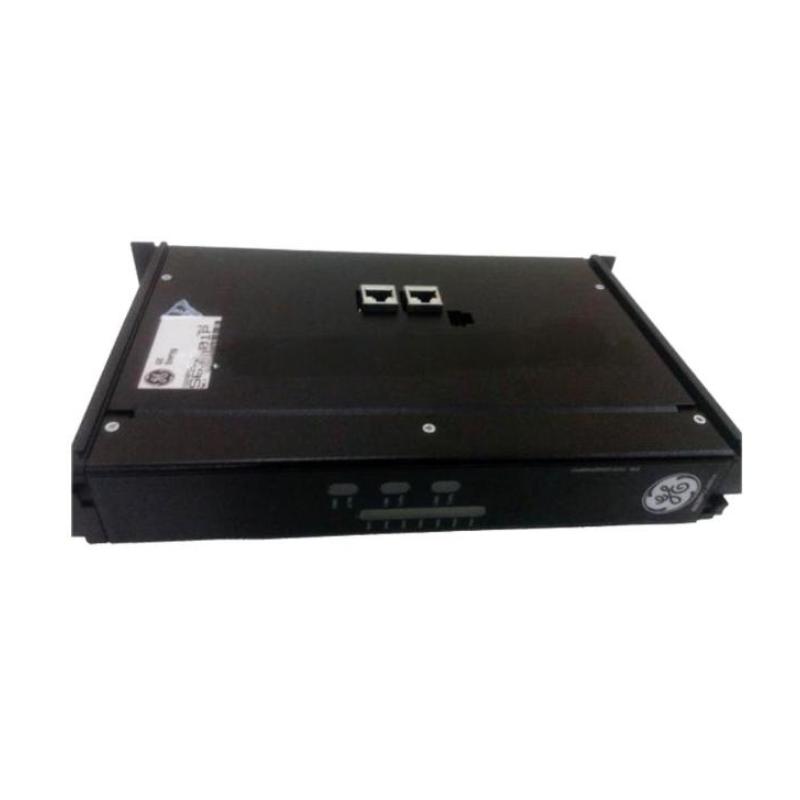

GE IS220PCLAH1A Core Analog I/O Module

Overview

The GE IS220PCLAH1A is a core analog input/output module designed for industrial automation and turbine control systems. It provides reliable analog signal processing for both input and output channels, enabling accurate monitoring, control, and communication between field devices and the control system.

General Information

Part Number: IS220PCLAH1A
Manufacturer: GE (General Electric)
System Series: Mark VIe
Brand: GE
Country of Origin: USA
Type: Core Analog Input/Output Module
Function: Central analog signal acquisition and output processing
Installation: Rack-mounted control system module
Compatibility: GE Mark VIe distributed control system
Technology: High-precision A/D and D/A conversion with embedded diagnostics

Power Specifications

Supply Voltage: 28 V DC (system dependent)
Power Consumption: Typically ≤ 12 W
Input Power Source: System backplane or external DC supply
Protection: Over-voltage, over-current, and reverse polarity protection
Status Indication: LED indicators for power, communication, and fault status

Communication & Interface

Signal Interface: Analog input and output channels
Input Types: 4–20 mA / voltage signals (configurable)
Output Types: 4–20 mA analog outputs
Data Transfer: High-speed backplane communication with controller
Channel Isolation: Galvanic isolation per channel
Diagnostics: Continuous loop monitoring, fault detection, signal validation
System Integration: Fully integrated with GE Mark VIe architecture

Environmental

Operating Temperature: 0 to +65 °C
Storage Temperature: −40 to +85 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial turbine control standard
Protection Class: IP20

Dimensions & Weight

Dimensions (L × W × H): 220 × 100 × 50 mm
Weight: 1.2 kg

Reliable core control performance for demanding industrial applications!
