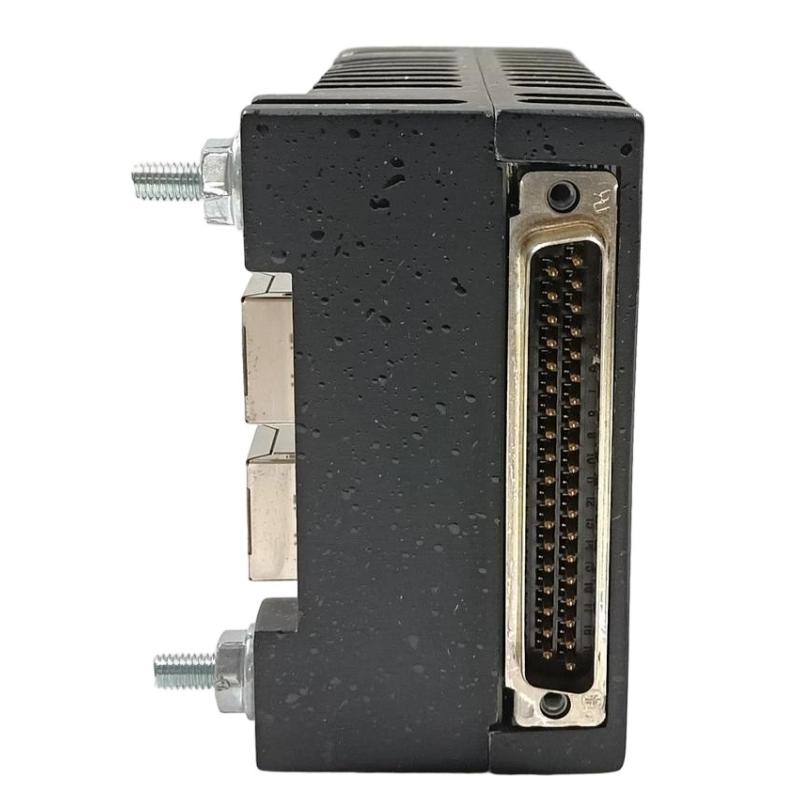

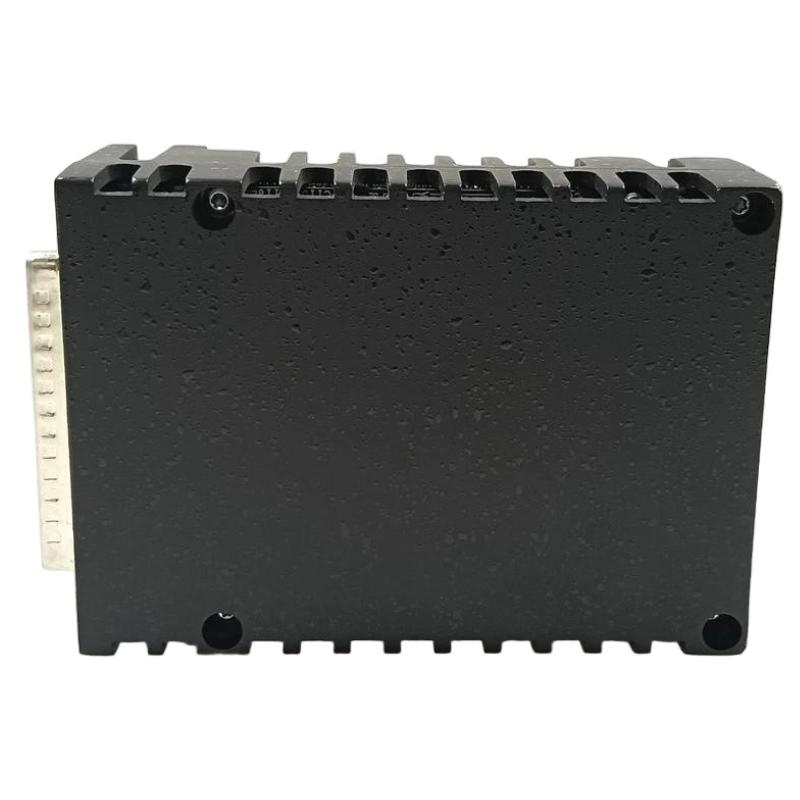

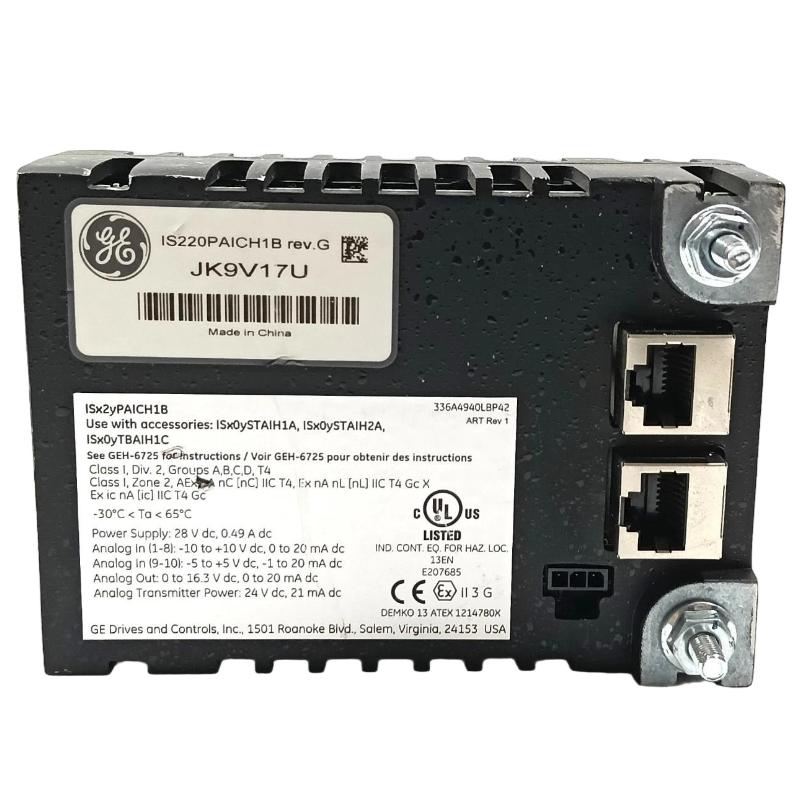

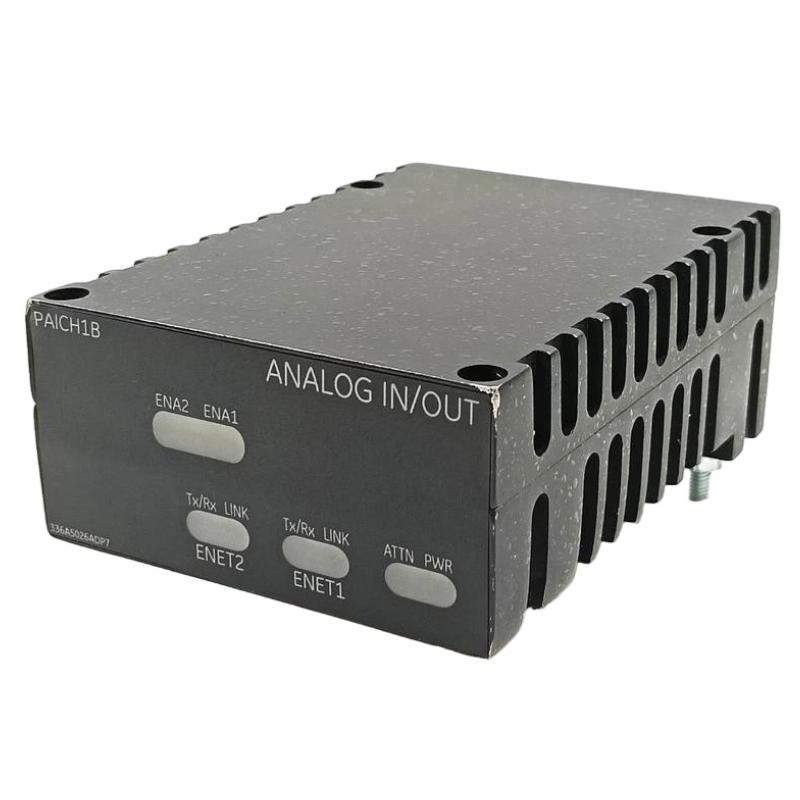

GE IS220PAICH1B Analog Input/Output Module

Overview

The GE IS220PAICH1B is an analog input/output module designed for industrial control systems, providing flexible signal acquisition and output capability within distributed automation environments. It supports precise analog signal processing for monitoring and controlling field devices in real-time applications.

General Information

Part Number: IS220PAICH1B
Manufacturer: GE (General Electric)
System Series: Mark VIe
Brand: GE
Country of Origin: USA
Type: Analog Input/Output Module
Function: Combined analog signal input and output processing
Installation: Rack or DIN-rail mounted within control system architecture
Compatibility: GE Mark VIe distributed control system
Technology: High-speed analog-to-digital and digital-to-analog conversion with diagnostics

Power Specifications

Supply Voltage: 28 V DC (system dependent)
Power Consumption: Typically ≤ 10 W
Input Power Source: Control system backplane / external DC supply
Protection: Over-voltage, over-current, and reverse polarity protection
Status Indication: LED indicators for power, channel status, and faults

Communication & Interface

Signal Interface: Analog input and output channels
Input Types: 4–20 mA / voltage signals (configuration dependent)
Output Types: 4–20 mA / analog voltage output
Data Transfer: High-speed backplane communication with controller
Channel Isolation: Galvanic isolation between channels and system
Diagnostics: Built-in loop diagnostics, fault detection, signal validation
System Integration: Fully integrated into GE Mark VIe control architecture

Environmental

Operating Temperature: 0 to +65 °C
Storage Temperature: −40 to +85 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial turbine and control cabinet standard
Protection Class: IP20

Dimensions & Weight

Dimensions (L × W × H): 82.6 × 41.9 × 121 mm
Weight: 0.907 kg

High-performance analog control solution built for demanding automation environments!
