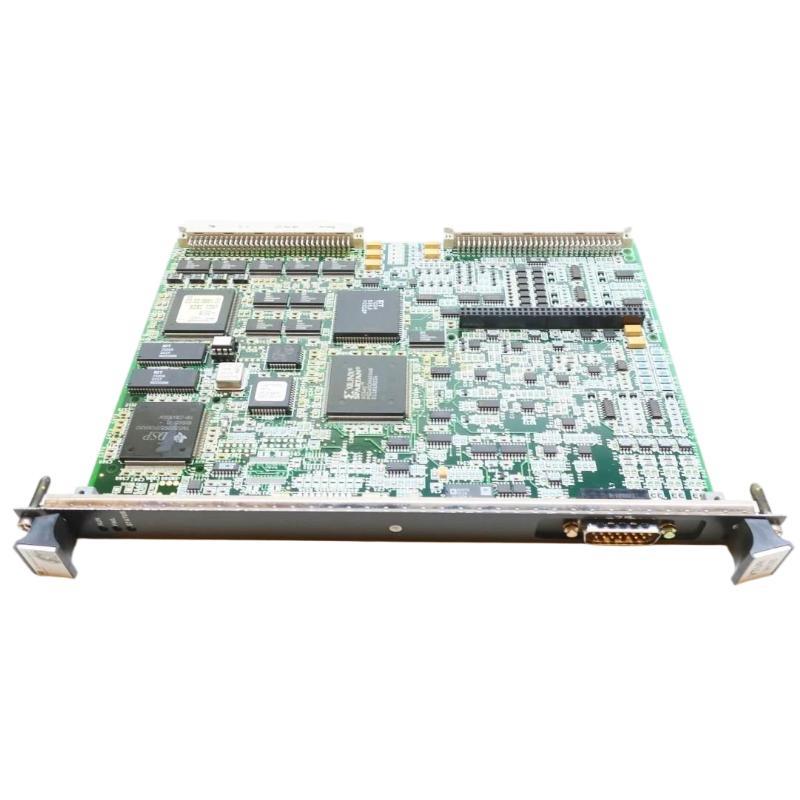

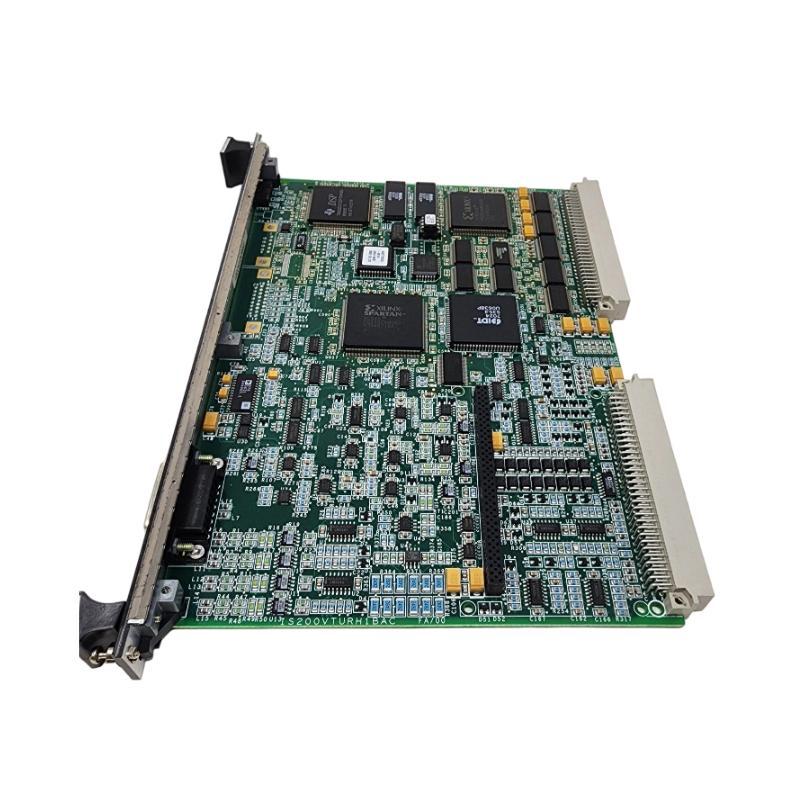

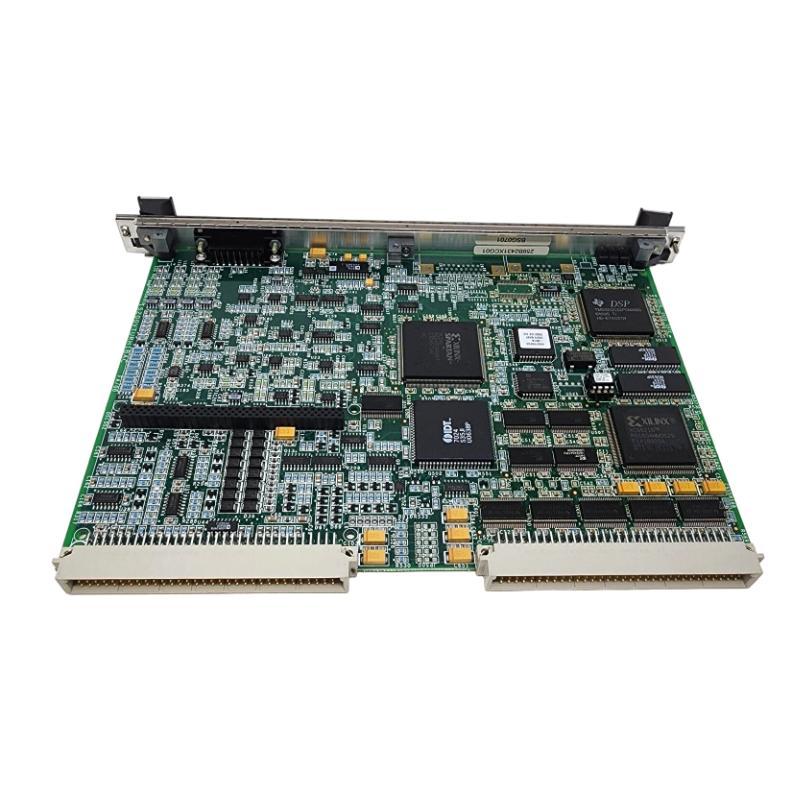

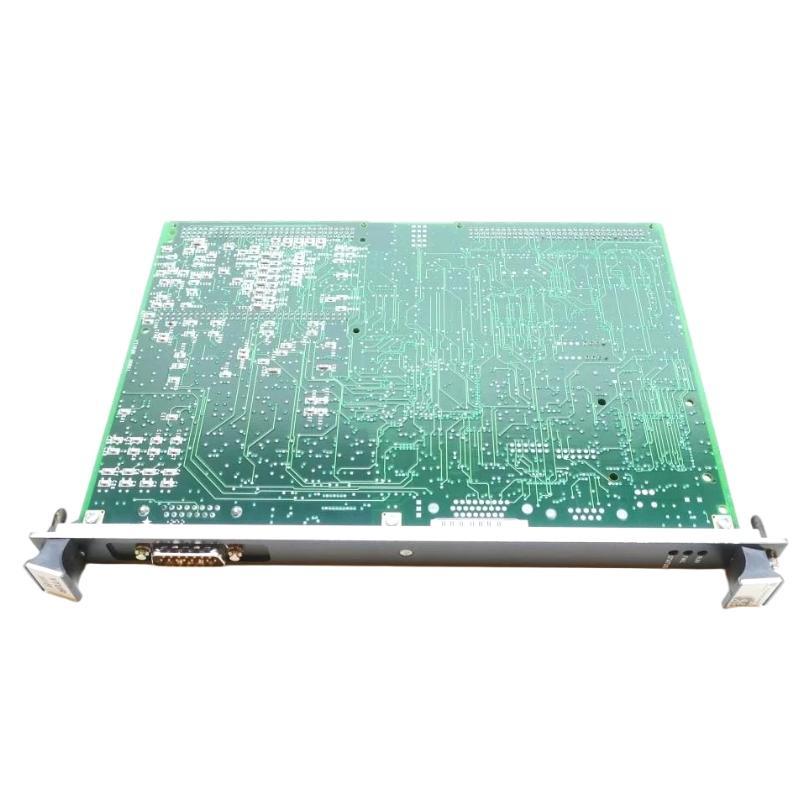

GE IS200VTURH1BMK6 VME Main Turbine Protection Board

Overview

The GE IS200VTURH1BMK6 is a VME-based main turbine protection board engineered for industrial turbine control and monitoring systems. It provides dependable protection functions, real-time signal processing, and robust communication with the turbine control system. The board ensures safe and efficient turbine operation by monitoring critical parameters, detecting faults, and initiating protective actions when required.

General Information

Part Number: IS200VTURH1BMK6

Manufacturer: GE

Brand / Country of Origin: GE / United States

Series: Mark VI Control System

Type: VME Main Turbine Protection Board

Mounting: Installed in VME rack-based control systems

Technology: Digital signal processing and turbine protection circuitry

Power Specifications

Supply Voltage: Powered via VME backplane

Power Consumption: Low-power electronic module design

Protection Features: Integrated electrical isolation and fault protection

Indicators: Status and diagnostic LEDs visible through system interface

Communication & Interface

Interface Type: VME bus communication within Mark VI system

Function: Provides turbine protection, monitoring, and system feedback

Diagnostics: Real-time fault detection and operational status monitoring

Operator Interface: Accessed via GE Mark VI system controller

Reset Capability: Supported via system-level reset and recovery functions

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial turbine and control environments

Protection Rating: IP20 when installed in control cabinet

Dimensions & Weight

Dimensions (L × W × H): 340 × 220 × 25 mm

Weight: Approximately 0.295 kg

Engineered for Safe and Reliable Turbine Operation!
